Product Description

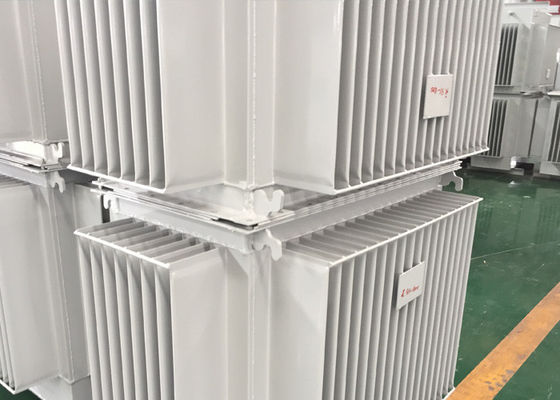

110KV Power Transformer /main Transformer /3150KVA, 4200KVA, 8000KVA/

Oil immeresed/ 3 phase/ power Transformer



Product Introduction

110kV three-phase oil-immersed power transformer is manufactured in conformity with

IEC60076 standards (applicable International Electrotechnical Commission standards)

and GB1094 standards (applicable state standards of the People's Republic of China).

This series of transformers features excellent impact resistance, high mechanical strength,

strong short circuit resistance, low partial discharge, low noise, nice sealing performance

and less maintenance. It is widely used as the main transformer in power stations,

transformer substations and power transmission and transformation systems of urban

and rural power grids.

Main functions and features

1. 110kV class Main transformers, used company-specific computing procedures, the

transformer core, coil, body, lead, fuel tank and other components for a comprehensive

design to ensure product performance.

2. S11~S13 series product in the S9 series based on average reduced 30% no-load loss

than idle current S9 70%-85% will. Long service life/

Transformer tank adopts full seal structure, the tank along with box available bolt connection

or welding die, transformer oil not contact with air and prolong the life.
3. Running high reliability/ Tank sealing parts were concerned, increased reliability

improvements to ensure and improve technology leveloff reliability of sealing.

Field area is small.
