10kv 12kv 20kv Oil Immersed Transformer 3 Phase Full Sealed With 50/60Hz Frequency

Product Details:
Place of Origin: China
Model Number: S13
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-200000/piece
Packaging Details: wood
Delivery Time: 15 DAYS
Payment Terms: LC T/T
Supply Ability: 5000 pieces/year
Contact Now

Detail Information

Usage: Power,Distribution Transformer Phase: Three
Frequency: 50/60Hz Rated Capacity: 30-3000kva
Standard: IEC Standards,ANCI,DIN,GB1094-1996 Product Name: 33/11 Kv 50/60Hz 5000Kva Oil Immersed Power Distribution Transformer
Material: Copper+alumnium Output Voltage: 15kv 10 Kv 0.4/0.69kv
Vector Group: Dyn11/Yzn11 Winding Material: Cooper
High Light:

oil immersed distribution transformer


oil immersed power transformer

Product Description

10KV oil immersed transformer

Product introduction

The product complies with the national standard GB1094-1996 and GB /t6451-2008. This is the latest series product with low loss copper winding. It is made of high-quality materials. New technology and materials are used for coil body and insulation. This product shows advantages of low loss, low noise and high efficiency, and can achieve good energy-saving effect and reduce pollution.


·Service conditions

1. The maximum ambient air temperature shall not exceed 40 ℃, and the minimum shall not below - 25 ℃;

2. The altitude shall not exceed 1000m. If special customized transformers and low-voltage components are used, the altitude can reach 4000m;

3. The vertical inclination is no more than 5 °, and no violent vibration and impact;

4. The air humidity is not more than 90% (+ 25 ℃);

5. No gas and conductive dust that will seriously affect the insulation of transformer, no explosion hazard and corrosion of electrical components;

6. Outdoor wind speed shall not exceed 35m / s.

7. If service conditions beyond the above, specially customized product is available.


·Structural features:

1. The low-voltage winding of an oil immersed transformer, except for copper conductor used for small capacity transformer, generally adopts copper foil winding and extraction hydro-cylinder structure; and the high-voltage winding adopts multi-layer barrel structure. These result in evenly distributed ampere-turns, small magnetic flux leakage, high mechanical strength and strong short-circuit resistance.

2. The iron core and winding are fastened separately. The machine height, low-voltage lead and other fastening parts adopt self-locking locknut and non-suspension structure, which can withstand impact during transportation.

3. The coil and iron core are treated by vacuum-drying, and the transformer oil is filtered and oiled in vacuum to reduce the water content inside of the transformer.

4. The oil tank is made of corrugated plate, which could absorb oil to compensate temperature fluctuation caused by oil volume change. Therefore, this product has no external oil tank, which significantly reduces height of the transformer.

5. As the corrugated plate replaces the oil storage tank, the transformer oil is isolated from the outside world, effectively preventing entry of oxygen and water and resulting in the decrease of insulation performance.

6.The above five performances enables the oil immersed transformer no need to change oil in normal operation, greatly reducing the maintenance cost , and extending the service life of the transformer.

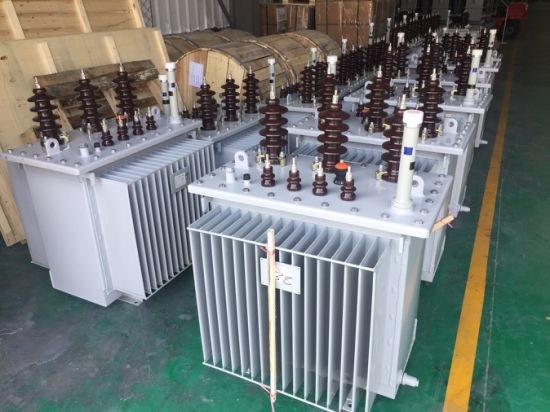

10kv 12kv 20kv Oil Immersed Transformer 3 Phase Full Sealed With 50/60Hz Frequency 0


Main technical parameters
Main circuit rated voltage(V) .......................... Ac 400 (600)
Rated voltage of auxiliary circuit (V) .......................... Ac 220/380 (400) dc 110/220
Rated frequency (Hz) .......................... 50(60)
Rated insulation voltage(V) .......................... 690(1000)
Rated current(A) The level of bus ≤6000
Rated short-time bus withstand current (kA/1s) .......................... 50,80
Rated peak withstand current of bus (kA/0.1s) .......................... 105,176


Power frequency test voltage (V/1min)

main circuit 2500
Auxiliary circuit 1760



Three-phase four-wire system A,B,C,PEN
Three-phase five-wire system A,B,C,PE,N
Protection grade .......................... IP30


Package Details:

10kv 12kv 20kv Oil Immersed Transformer 3 Phase Full Sealed With 50/60Hz Frequency 1

10kv 12kv 20kv Oil Immersed Transformer 3 Phase Full Sealed With 50/60Hz Frequency 2
