China Electrical Power Transformer manufacturer

1000 kva 1600kva 25kv 33kv encapsulated dry type power 3 phase transformer price

Product Details:
Place of Origin: China
Model Number: SCB series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-200000/piece
Packaging Details: wooden case package
Delivery Time: 15 DAYS
Payment Terms: LC T/T
Supply Ability: 5000 pieces/year
Contact Now

Detail Information

Name: Power Distribution Transformer Feature: Superior Performance, Product Safety, Reliability, Environmental Protection
Brand: Power Distribution Transformer Standard: CE,ISO,UL,SABS,3C, IEC60076-11 ISO9001 ISO14001 KEMA CE
Model Number:: Dry Type Transformer
High Light:

cast resin dry type transformer


dry cast resin transformers

Product Description

1000 kva 1600kva 25kv 33kv encapsulated dry type power 3 phase transformer price


1.Product Description

The reel core fully sealed distribution transformer is a new generation of low noise and low loss transformer developed in recent years. Its iron core has no joint, greatly reduces the no-load loss and no-load current, reduces the no-load current by 60%~80%, the high and low coils are continuously coiled on the core column, the winding is tight, the concentricity is good, and the product is enhanced more. Anti-theft performance. The noise decreased by more than 10 decibels. The temperature rise is low 16-20K. Because of the continuous winding of iron core (cross section is pure circle), the orientation loss of silicon steel sheet is fully utilized, and the no-load loss is reduced by 20%~30%.
The low voltage winding with capacity in the 630~2500kVA enclosure is made of cylinder or spiral structure with high mechanical strength and balanced ampere distribution. The product has good short circuit resistance.
The positioning structure is added to the body so that it does not produce displacement during the transportation process, and all fasteners are equipped with fastener nuts to ensure that the fasteners are not loose during the long run of the product and meet the requirements of the non core lifting.
The product surface is painted, primed and topcoat after degreasing, rust removing and phosphating. It can meet the special requirements of metallurgy, petrochemical system and wet dirty area.This series of products has beautiful appearance, small size, and can reduce the installation area. It is an ideal free maintenance quality product.


Structural Features

  • The iron core is made of high-quality cold-rolled oriented silicon steel sheet, the surface is specially treated with protective resin, and full-inclined seam lamination structure is adopted.
  • The low-voltage coil is of foil winding structuremade of high-quality steel foil. The high-voltage coil is of layer structure formed by vacuum epoxy casting technique. Lowpartial discharge in similar product catalog;
  • This model features high mechanical strength, strong short-circuit resistance, good dust-proof and anti-fouling performance. Its service life is longer than other dry transformer.
  • The product’s beautiful stainless steel shell is durable and can provide better protection for the electrified parts of the transformer. Itworks well outdoors.
  • With excellent moisture-proof and corrosion-resistant performance, the product is safe, fire-proof and pollution-free.It’s especially suitable for working in extremely harsh environmental conditions, and can restart without drytreatment after shutdown.
  • Good heat dissipation performance and strong overload capacity enables it operate with higher capacitywhen forced air cooling.



we are the large-scale electric complete sets of manufacturers in China, specializing in oil-immersed transform ers, dry-type transformers, high-voltage Cabinets, low-voltage cabinets and substa tion manufacturing specialized electrical enterprises. We can provide good quality and pretty competitive price.

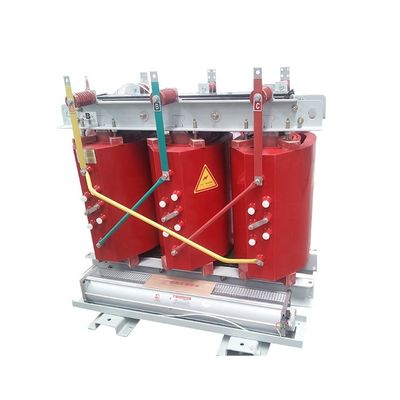

1000 kva 1600kva 25kv 33kv encapsulated dry type power 3 phase transformer price 0

1000 kva 1600kva 25kv 33kv encapsulated dry type power 3 phase transformer price 1

1000 kva 1600kva 25kv 33kv encapsulated dry type power 3 phase transformer price 2
