Name: Outdoor Vacuum Circuit Breaker Feature: Superior Performance, Product Safety, Reliability, Environmental Protection
Brand: Power Distribution Transformer Standard: CE,ISO,UL,SABS,3C, IEC60076-11 ISO9001 ISO14001 KEMA CE
Model Number:: Outdoor Vacuum Circuit Breaker
High Light:

vcb circuit breaker

,

vacuum circuit switch

Product Description

High voltage sf6 indoor circuit breaker





1.Product Description

ZW32-12 outdoor vacuum circuit breaker (hereinafter referred to as circuit breaker) is an outdoor power distribution equipment with rated voltage of 12KV and three-phase AC 50Hz. It is mainly used to break and close the load current, overload current and short circuit current in the power system. It is suitable for protection and control in substation and industrial and mining enterprise substation systems, and places where rural power grids operate frequently.
The circuit breaker has the characteristics of small size, light weight, anti-condensation and maintenance-free, and can adapt to harsh weather conditions and dirty environments.Standards compliant:
GB1984 "AC high voltage circuit breaker"
GB11022 "Common technical requirements for high-voltage switchgear and control equipment standards"
GB311.1-6 "Insulation coordination of high voltage power transmission and transformation equipment"
GB763 "Communication of AC high voltage electrical appliances during long-term work"
BG2706 "Test Method for Dynamic and Thermal Stability of AC High Voltage Apparatus"
GB3309 "Mechanical test of high voltage switchgear at room temperature"
DL/T593 "Technical Conditions for Common Ordering of High Voltage Switchgear"



Technical Parameters

Sr.

Name Unit Value
1 Rated voltage KV 12
2 Rated frequency Hz 50
3 Rated current A 630
4 Rated short-circuit breaking current KA 20
5 Rated peak withstand current (peak) KA 50
6 Rated short-time withstand current KA 20
7 Rated short circuit closing current (peak) KA 50
8 Mechanical life Time 10000
9 Rated short circuit current breaking times Time 30
10 Power frequency withstand voltage (1min): (wet) (dry) phase, ground, fracture KV 42/48
11 Lightning impulse withstand voltage (peak), phase to ground, fracture KV 75/85
12 Secondary circuit 1min power frequency withstand voltage KV 2




2.Production pictures

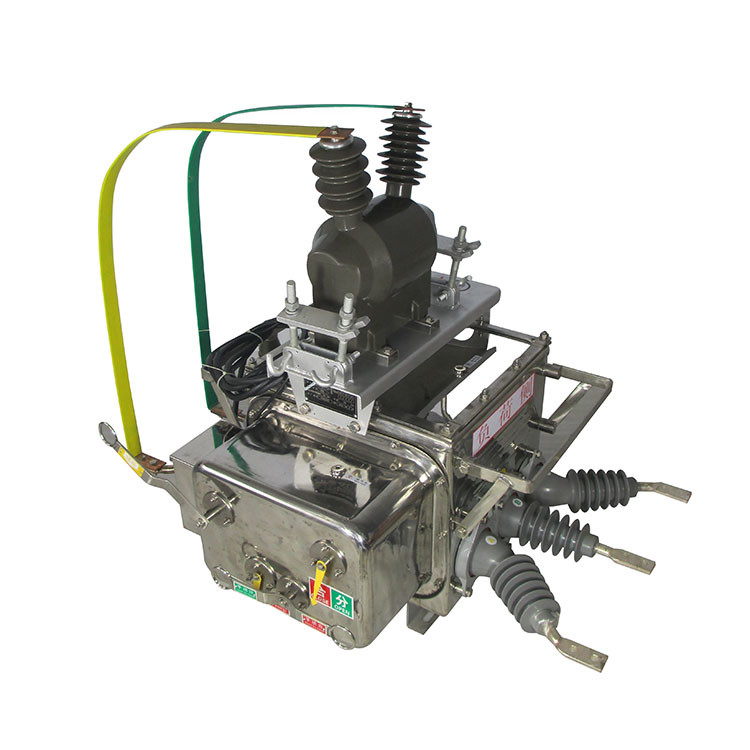

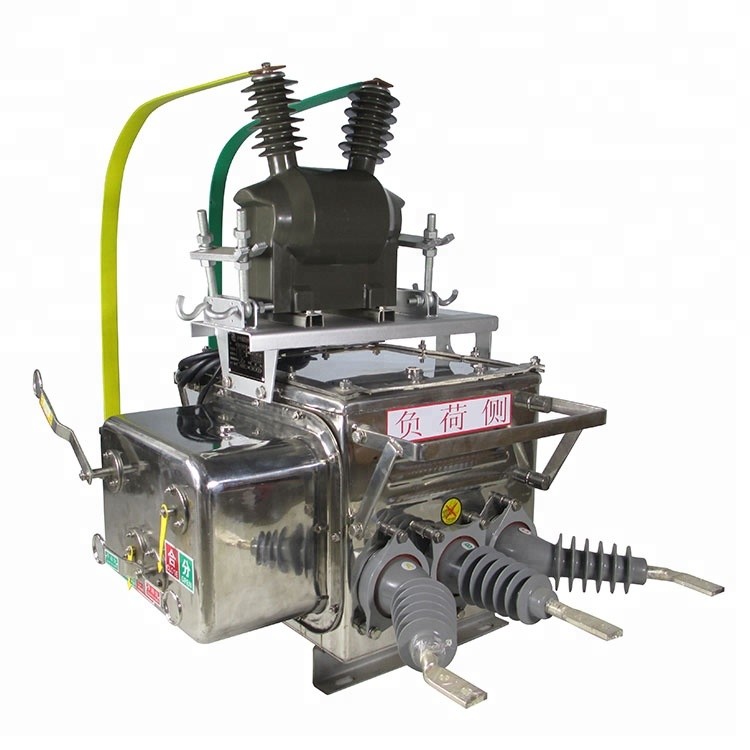

High voltage  indoor circuit breaker 0

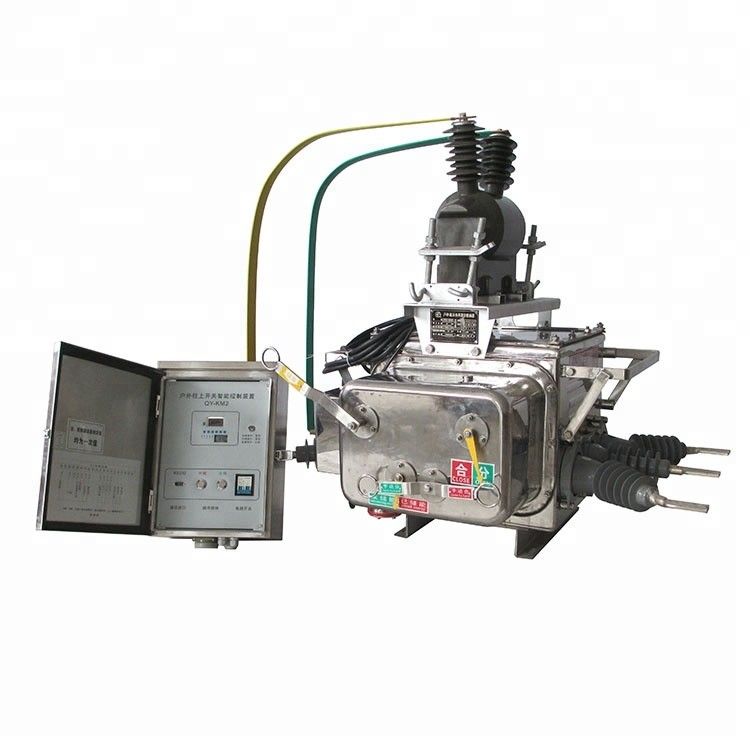

High voltage  indoor circuit breaker 1













Note:1.All products will be tested before delivery.
2.All products can be customized.





Conditions of Use

1.The maximum ambient air temperature shall not exceed 40°C, and the minimum shall not below -25°C;

2.The altitude shall not exceed 1000m. If special customized transformers and low-voltage components are used, the altitude can reach 4,000m;

3.The vertical inclination is no more than 5°, and no violent vibration and impact;

4.The air humidity is not more than 90% (25°C);

5.No gas and conductive dust that will seriously affect the insulation of transformer,no explosion hazard and corrosion of electrical components;

6.Outdoor wind speed shall not exceed 35m/s;

7.If service conditions beyond the above, specially customized product is available.
