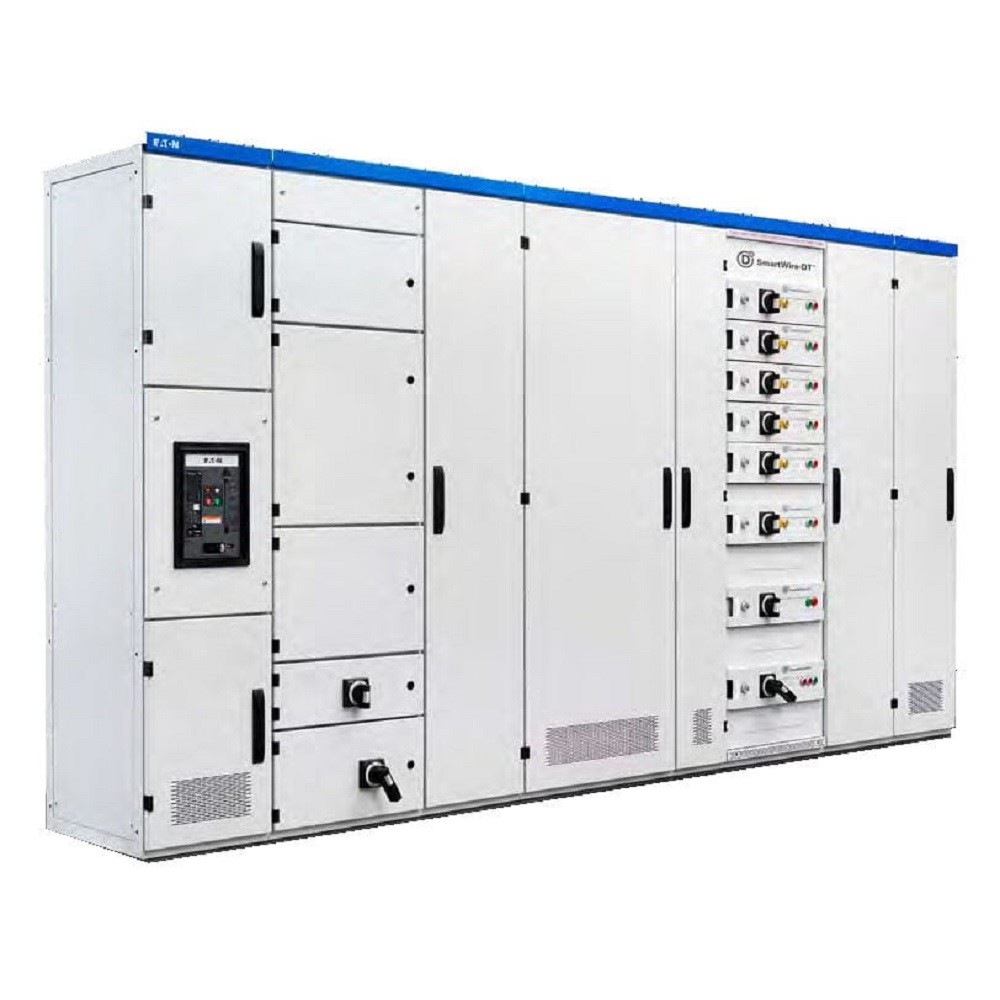

Low Voltage Electrical Safety Electrical Switchgear / Air Insulated Switchgear GGD1

Product Details:
Place of Origin: China
Brand Name: HENGFENGYOU
Certification: ISO IEC CB COC KEMA SNI SABS CCC
Model Number: MNS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-20000/piece
Packaging Details: wooden case package
Delivery Time: 30 days
Payment Terms: LC T/T
Supply Ability: 5000 piece/year
Contact Now

Detail Information

Name: Electrical Switchgear Feature: Superior Performance, Product Safety, Reliability, Environmental Protection
Brand: Power Distribution Transformer Standard: CE,ISO,UL,SABS,3C, IEC60076-11 ISO9001 ISO14001 KEMA CE
Model Number:: Electrical Switchgear
High Light:

industrial power distribution panel

,

electrical switch cabinet

Product Description

Low Voltage Electrical Safety Electrical Switchgear / Air Insulated Switchgear GGD1





1.Product Description

Ac metal closed type shift switch cabinet is a three-phase ac 50HZ indoor device metal closed switch equipment.Is used in power plants, substation system rated voltage 35kV, rated maximum current 2000A maximum voltage no more than 40.5kV single bus or single bus sectionalized sets of distribution equipment.

This switch device meets the requirements of DL/ t404-91, IEC298, GB3906 and other standards, and has the functions of preventing wrong operation of circuit breaker, pushing and pulling handcart with load, grounding line, power transmission with grounding line and accidental charging interval (referred to as "five precautions")



Technical Parameters

No Item Unit Parameter
1 Rated voltage kV 7.2kV, 12kV, 17.5kV, 24kV
2 Ratec frequency Hz 50/60
3 Rated current A 630, 1250, 1600, 2000, 2500, 3150, 4000
4 Branch busbar rated current A 630, 1250, 1600, 2000, 2500, 3150, 4000
5 Main busbar rated current A 630, 1250, 1600, 2000, 2500, 3150, 4000
6 1 min power frequency withstand voltage(wet/dry) kV 38/48, 50/60/60/65
7 Lightning impulse withstand voltage kV 75, 95/125
8 Rated short circuit breaking current(peak) kA 40/50/63/80/100
9 Short time withstand current(4s) kA 20/25/31.5/40
10 Protection type   IP4X for housing
No Item Unit Parameter
1 Rated voltage kV 36kV, 40.5kV
2 Ratec frequency Hz 50/60
3 Rated current A 630, 1250, 1600, 2000, 2500, 3150, 4000
4 Branch busbar rated current A 630, 1250, 1600, 2000, 2500, 3150, 4000
5 Main busbar rated current A 630, 1250, 1600, 2000, 2500, 3150, 4000
6 1 min power frequency withstand voltage(wet/dry) kV 70/95
7 Lightning impulse withstand voltage kV 170/185
8 Rated short circuit breaking current(peak) kA 20/25/31.5/40
9 Short time withstand current(4s) kA 40/50/63/100
10 Protection type   IP4X for housing

Structural Features

  • The iron core is made of high-quality cold-rolled oriented silicon steel sheet, the surface is specially treated with protective resin, and full-inclined seam lamination structure is adopted.
  • The low-voltage coil is of foil winding structuremade of high-quality steel foil. The high-voltage coil is of layer structure formed by vacuum epoxy casting technique. Lowpartial discharge in similar product catalog;
  • This model features high mechanical strength, strong short-circuit resistance, good dust-proof and anti-fouling performance. Its service life is longer than other dry transformer.
  • The product’s beautiful stainless steel shell is durable and can provide better protection for the electrified parts of the transformer. Itworks well outdoors.
  • With excellent moisture-proof and corrosion-resistant performance, the product is safe, fire-proof and pollution-free.It’s especially suitable for working in extremely harsh environmental conditions, and can restart without drytreatment after shutdown.
  • Good heat dissipation performance and strong overload capacity enables it operate with higher capacitywhen forced air cooling.

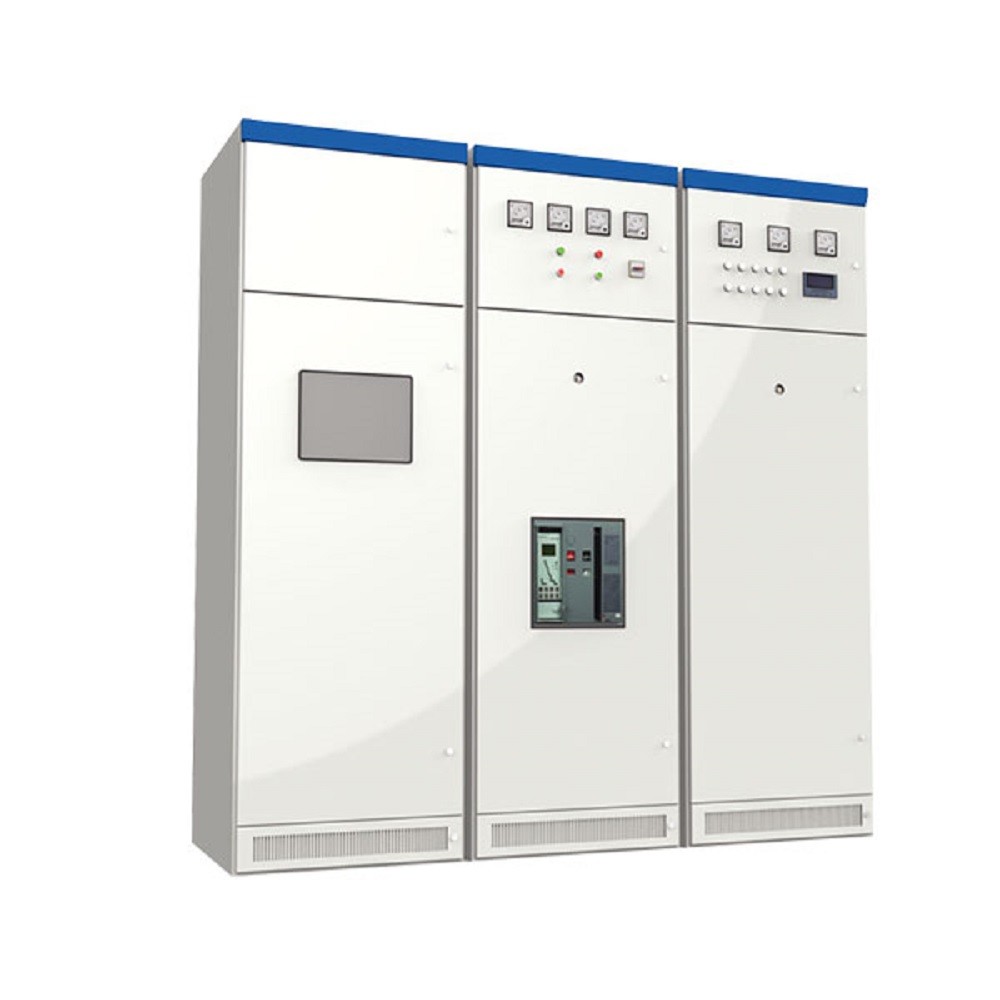

Low Voltage Electrical Safety Electrical Switchgear / Air Insulated Switchgear GGD1 0

Conditions of Use

1.The maximum ambient air temperature shall not exceed 40°C, and the minimum shall not below -25°C;

2.The altitude shall not exceed 1000m. If special customized transformers and low-voltage components are used, the altitude can reach 4,000m;

3.The vertical inclination is no more than 5°, and no violent vibration and impact;

4.The air humidity is not more than 90% (25°C);

5.No gas and conductive dust that will seriously affect the insulation of transformer,no explosion hazard and corrosion of electrical components;

6.Outdoor wind speed shall not exceed 35m/s;

7.If service conditions beyond the above, specially customized product is available.

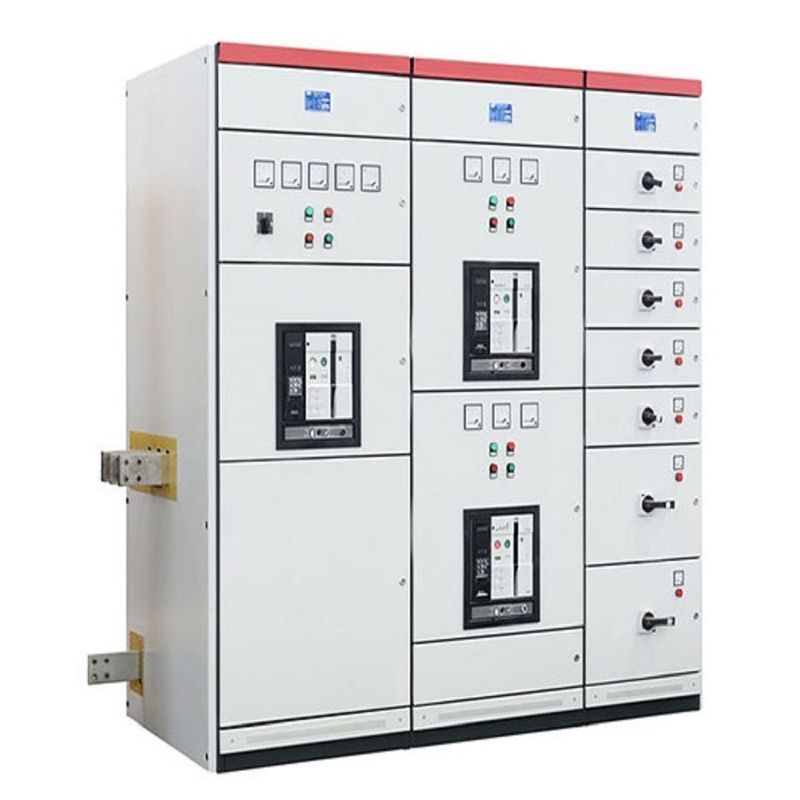

Low Voltage Electrical Safety Electrical Switchgear / Air Insulated Switchgear GGD1 1

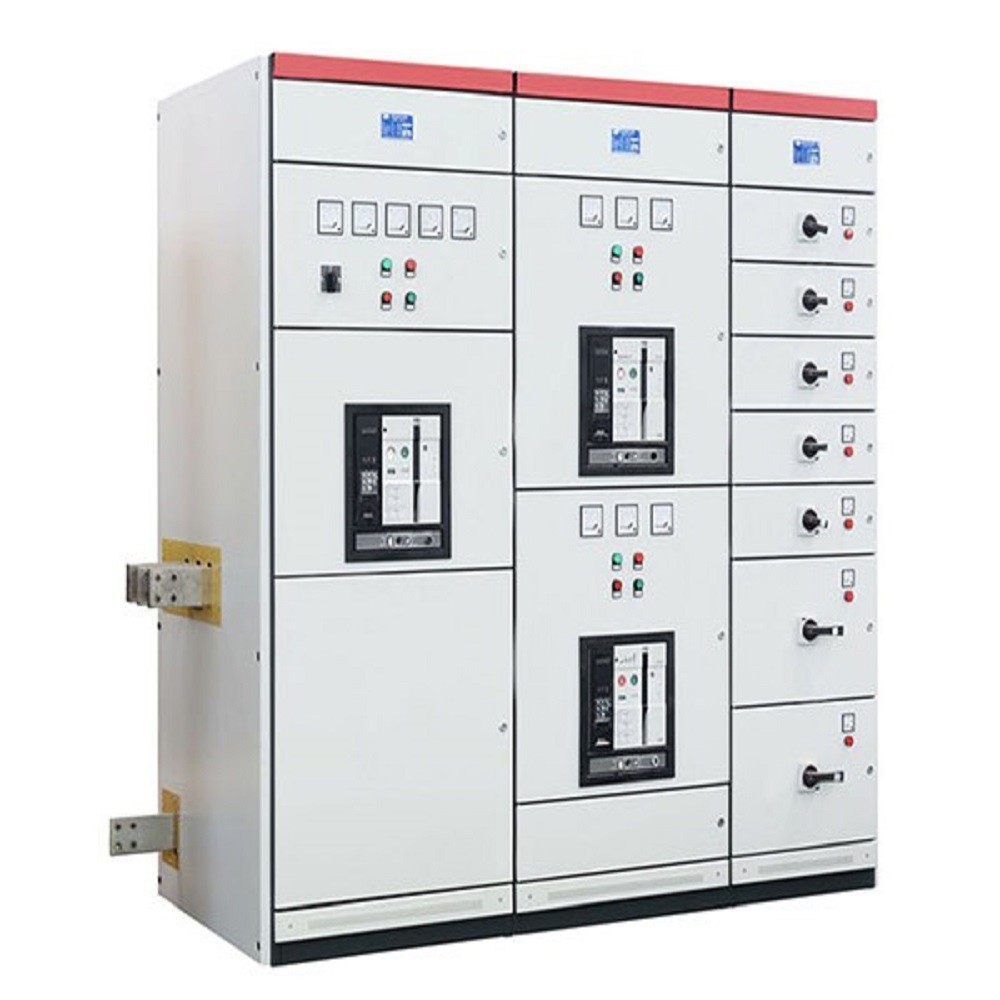

Low Voltage Electrical Safety Electrical Switchgear / Air Insulated Switchgear GGD1 2
