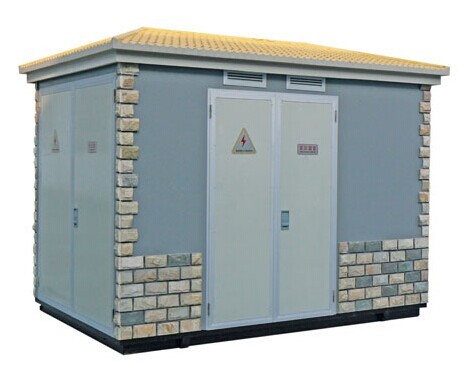

united power distribution Substation Box，European style

Product Description

Prefabricated Electrical Substation Box 4000A Rated Current For Power

Distribution

Features

_{The cabinet shell is designed according to foreign advanced technology and actual situation, with features of fastness, ventilation and heat insulation, dust-free, prevent small animals, moisture proof, beautiful design, convenient to maintain. Shell material has a range of choices: Aluminum sheet, steel sheet, composite board, stainless steel sheet, nonmetal material}

_{(glass, fiber, cement).}

_{H. V side mainly uses load switch, while vacuum circuit breaker is also available with complete misoperation function. It also can equip with XGN20-12L SF6 looped-network cabinet and looped-network switch device such as HXGNI5A, HXGNI7.}

_{Transformer can be oil immersed, full enclosed and dry-typed.}

_{Substation is with perfect protectionperformance and convenient operation. H&L V metering is available, it can also}

_{equip withautomatic reactive power compensation devices.}

Parameters

Product composition

Fully sealed and fully insulated structure, no insulation distance required, reliable guarantee of personal safety;With the characteristics of small size and compact structure, YBP type pre-installed substation is only About 1/3, the YBM prefabricated substation is only about 1/2 of the European-style substation with the same capacity;
Can be used for ring network and terminal power supply mode, the conversion is flexible and convenient;Double-fuse full-range protection method, greatly reducing operating costs;
The cabinet adopts anti-corrosion design and special spray paint treatment, which is suitable for various harsh environments;Adopt Dyn11 connection method, which has the advantages of no drift of neutral point and good lightning protection performance;
Perfect transformer design, with the advantages of low noise and low loss;
Serialized products, which can meet the needs of users to the greatest extent;

Communication interface can be reserved to facilitate the expansion of power distribution automation.

Service Centre

_{The shell of the box is made of aluminum-coated zinc steel plate and container manufacturing}

_{technology, and the design is beautiful. On the premise of ensuring the reliability of power supply,}

_{the shell color of the box-type substation is selected, so that it is easy to be in harmony with the}

_{surrounding environment Especially suitable for urban construction. Such as: Urban residential}

_{areas, stations, ports, airports, parks, green belt and other densely populated areas, it can be}

_{used as a fixed substation, can also be used as a mobile substation, with decorative and}

_{beautifying the environment.}
