Small Volume Electrical Substation Box Low Noise European Standard

Product Details:
Place of Origin: China
Model Number: YB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 2000-200000/piece
Packaging Details: wooden case
Delivery Time: 30 days
Payment Terms: LC T/T
Supply Ability: 5000 pieces/year
Contact Now

Detail Information

Product Name: Substation Rated Current: 4000A
Type: Distribution Box,electrical Box Certificate: ISO9001,Type Test Report
Frequency: 50/60Hz Rated Voltage: Up To 33KV
Ambient Temp: -30℃~+40℃ Rated Capacity: Up To 2.5MVA
Standard: IEC1330
High Light:

box type substation


power distribution substation

Product Description

1000kVA-1250kVA 10kv Continental Dry Transformer (Euro Standard)


Prefabricated transformer substation Stuture character

1. Small volume, convenient installation and maintenance, low noise, low loss,

full protection.
2. Have three enclosure forms: standard type, reinforces type, and integrated type

according to low voltage andfeeding requirements.
3. This product is the latest and absorbing foreign advanced technology, combined

with domestic actual situation ofresearch and development, and called Localization

of American cabinet.
4. Ring network power supply, double power supply or terminal power supply systems,

the substation, powerdistribution, metering, compensation, control and protection devices.

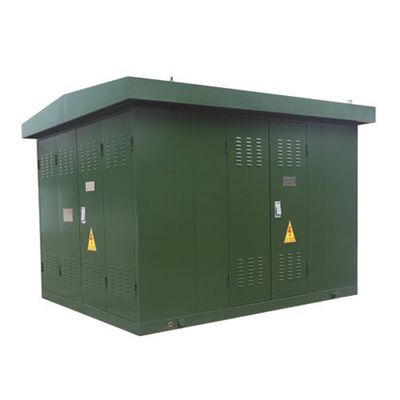

Small Volume Electrical Substation Box Low Noise European Standard 0
YBM-12 Series 12KV European Type Box Type Transformer Substation
Name Unit HV equipment Transformer LV equipment
Rated voltage kV 11/20/33 (11/20/33)/0.4 0.4
Rated current A 630 depend on kVA Less than 4000
Frequency Hz 50
Rated capacity kVA 50-2500
Prf withstand kV 42/50/75/95 2.5
BIL kV 75/125/170/185
Crust protection grade   IP23

Oil type 55

Dry type 65

Noisy Grade dB
Appearance dimensions mm According to primacy wiring circuit schema


Small Volume Electrical Substation Box Low Noise European Standard 1

Our Services

1. Varies kinds of cable support system, you can enjoy the one-stop shopping in our company.

2. Foucs on cable support system over 10 years,We are professional on service.
3. We will do inspection before each shipment
4. We have own lab for all kinds of test.

5. Custom and special design is available.
6. Discount and promotion price is available.
7. Technology support is available.


Manager    Jack        Whatsapp :+8618563957953

Manager   Datang     Whatsapp: +8613589262999

Small Volume Electrical Substation Box Low Noise European Standard 2
