|Name:||American Prefabricated Substation||Model Number:||FZB-35/0.6-2000|
|Phase:||Three||Color:||Customized Or Gray|
power distribution substation,
electrical distribution substation

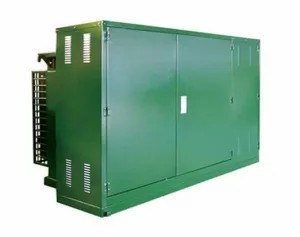

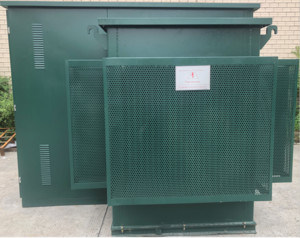

ZBW(YB)17-10 Series HV/LV Prefabricated (American type)Substation
The combined American box change is a transformer body, high voltage load switch, fuse and other components.
It is placed in the transformer oil tank. Because it is immersed in oil, the volume of the components is greatly reduced, the structure is more compact, and the installation is convenient and flexible. Fully insulated, fully sealed structure, safe and reliable, easy to operate, maintenance free. Widely used in residential quarters, high-tech centers, factories and mines, airports, stations, schools.
product is a kind of set of equipment which assembles the MV Switch apparatus,transformer,LV distribution equipment together according to fixed connection scheme.This series substation is suitable for neighborhood unit,hotel,large-scale work site and high building that the voltage is 12kv/24kv/36kv/40.5kv,the frequency is 50Hz and the capacity is under 2500kvA.
a)Air temperature:Maximum temperature:+50oC; Minimum temperature:-55oC
b) Humidity: Monthly average humidity 95%; Daily average humidity 90% .
c) Altitude above sea level: Maximum installation altitude: 2500m
d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
e) No frequent violent shake
Main Designation Characteristics
l The crust of the substation is designed according to the foreign advanced technology and physical reality. We provide many kinds of crust material such as aluminum alloy steel composite stainless steel board and non metal material(glass fiber).
l The HV side use charge switch or vacuum circuit breaker. The transformer could be oil type hermetically-sealed type and dry type.
l The proof of the box is double layers structure and between the layers is filled with foam.There are independent boards in HV and LV room, and in the transformer room will install auto thermal controller heater and cooling equipment.
Note: we offer special customized products according to client's requirement.
Scope of application:
1.Urban public power distribution system,in the residential area,when downtown street load increases,and need to increase the transformer capacity.
2.Temporary power supply of construction site:existing buildings,the need to transformer or increase the use of electrical equipment,field operations and outdoor workplace power supply,such as oil,mining,port terminals,stations and so on.
|Maximum working voltage||12(HV)|
|Withstand voltage(1 min working)||35kV|
|Lightning impulse voltage||75kV|
|Cooling method||oil immersion self-cooling|
|backup fuse switching on current|
|on-off current of the plug fuse||2.5|
|environment temperature||-35℃ to 40℃|
|Coil temperature||62 ℃|
|No load voltage||±5% ±2x2.5%|
1. One of the drafters of the National Standard Mine Flameproof Mobile Substations (GB/T 8286-xxxx ), which will replace the existing national standard (GB/T 8286-2005 ) and it was submitted for trial in Beijing.
2. +20 years experience R&D team, derived from a 60 years of history transformer manufacturer in Changsha, Hunan, China since 1956.
3. Full range of transformer types with customized functions are available.
4. CE & ISO certificated.
