factory pre-assembled american type substation combined transformer

Product Details:
Place of Origin: China
Model Number: ZGS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 2000-200000/piece
Packaging Details: wooden case
Delivery Time: 30 days
Payment Terms: LC T/T
Supply Ability: 5000 pieces/year
Contact Now

Detail Information

Material: Stainless Steel Standard: IEC60076
Coil Structure: Toroidal Usage: POWER
Name: American Prefabricated Substation Model Number: FZB-35/0.6-2000
Phase: Three Color: Customized Or Gray
High Light:

power distribution substation


electrical distribution substation

Product Description

ZBW(YB)17-10 Series     HV/LV Prefabricated (American type)Substation



The combined American box change is a transformer body, high voltage load switch, fuse and other components.
It is placed in the transformer oil tank. Because it is immersed in oil, the volume of the components is greatly reduced, the structure is more compact, and the installation is convenient and flexible. Fully insulated, fully sealed structure, safe and reliable, easy to operate, maintenance free. Widely used in residential quarters, high-tech centers, factories and mines, airports, stations, schools.

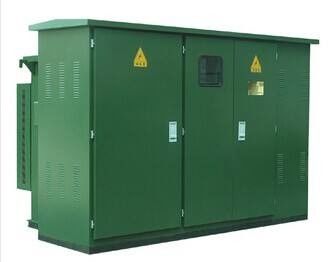

factory pre-assembled american type substation combined transformer 0


General requirements:

1.Simple lighting,public power distribution,the case into the high-voltage wiring scheme does not need to set high-pressure measurement,only low-pressure measurement or no measurement,no compensation.Feeding circuit 4-6 back,the use of plastic circuit breaker control and protection.
2.Power lighting,public power distribution,the box transformer with a change in the circuit has increased to 8 to 12 back,in addition,there should be reactive power compensation.
3.Box-type transformer substation covers small footprints,General box-type transformer substation covers an area of only 5 to 6 square meters,or even reduce the 3 to 5 square meters.Suitable for general load-inensive industrial and mining enterprises,ports and residential quarters and other places,can be extended.


Normal conditions of use

Altitude: not exceed 1000m;
Ambient temperature:-35oC~+40oC
Relative humidity: daily average of not more than 95%, on average less than 90%;
Installation place: no fire, explosion, chemical corrosive gas and well-ventilated place, the ground angle of not more than 3°.


Product Features

Overload capacity strong,allowing overload 2 times 2hours,overload 1.6 times 7 hours without affecting the life of the box change.

Adopt elbow plug connector,high-voltage cable can be very convenient joint into the connection,and in emergency situations as a load switch to use,can live plug.

Double-fuse protection,plug-in fuse(BAY-o-net) for the double-sensitive fuse temperature,current) protectionbox secondary side of the short-circuit failure occurred.

The back-up current limiting fuse(ELSP) protects the cabinet from internal faults and protects the high-voltageside.


factory pre-assembled american type substation combined transformer 1

Scope of application:

1.Urban public power distribution system,in the residential area,when downtown street load increases,and need to increase the transformer capacity.
2.Temporary power supply of construction site:existing buildings,the need to transformer or increase the use of electrical equipment,field operations and outdoor workplace power supply,such as oil,mining,port terminals,stations and so on.

Technical parameters
Rated voltage 10/0.4kv(HV/LV)
Maximum working voltage 12(HV)
Rated frequency 50Hz
Rated capacity 50-1600kVA
Withstand voltage(1 min working) 35kV
Lightning impulse voltage 75kV
Cooling method oil immersion self-cooling
High voltage 50kA
backup fuse switching on current
on-off current of the plug fuse 2.5
environment temperature -35℃ to 40℃
Coil temperature 62 ℃
No load voltage ±5% ±2x2.5%
Noise level 50db
Protection level IP43


factory pre-assembled american type substation combined transformer 2



WHY Hengfengyou


1. One of the drafters of the National Standard Mine Flameproof Mobile Substations (GB/T 8286-xxxx ), which will replace the existing national standard (GB/T 8286-2005 ) and it was submitted for trial in Beijing.

2. +20 years experience R&D team, derived from a 60 years of history transformer manufacturer in Changsha, Hunan, China since 1956.

3. Full range of transformer types with customized functions are available.

4. CE & ISO certificated.
