33kv 600kVA Electrical Substation Box Three Phase Power Distribution Substation

Product Details:
Place of Origin: China
Model Number: YB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 2000-200000/piece
Packaging Details: wooden case
Delivery Time: 30 days
Payment Terms: LC T/T
Supply Ability: 5000 pieces/year
Contact Now

Detail Information

Product Name: European Type Box Transformer Substation Frequency: 50/60Hz
Usage: Box Transformer Model: YBM-12
Rated Voltage: 6KV 12KV 35KV Material: Cold Plate Spray Molding,ceramic Tile
Color: White Certificate: ISO9001,CCC
Key Words: Transformer Substation Rated Current: 4000A
Application: Power Distribution,transmission,control,protection
High Light:

power distribution substation


electrical distribution substation

Product Description

ZGS pad mounted european style power substation equipment



Product Discription
YBW series products is a kind of set of equipment which assembles the MV switch apparatus, transformer,

LV distribution equipment together according to fixed connection scheme. This series substation is suitable

for neighborhood unit, hotel, large-scale work site and high building that the voltage is 12kV /24kV/36kV/40.5kV,

the frequency is 50Hz and the capacity is under 2500kvA.

++++ Main Designation Characteristics

The crust of the substation is designed according to the foreign advanced technology and physical reality. We provide many kinds of crust material such as aluminum alloy steel composite stainless steel board and non metal material(glass fiber).
The HV side use charge switch or vacuum circuit breaker. The transformer could be oil type hermetically-sealed type and dry type.

The proof of the box is double layers structure and between the layers is filled with foam. There are independent boards in HV and LV room, and in the transformer room will install auto thermal controller heater and cooling equipment.
Note: we offer special customized products according to client's requirement

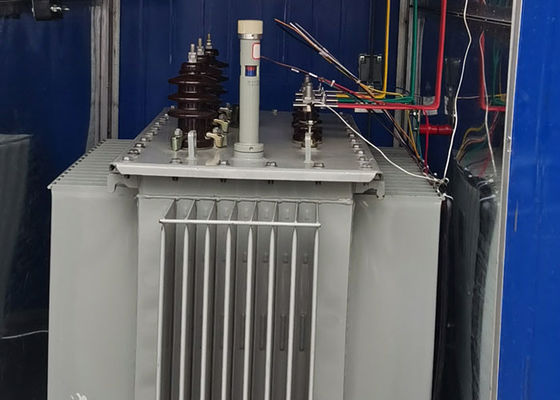

33kv 600kVA Electrical Substation Box Three Phase Power Distribution Substation 0
YBM-12 Series 12KV European Type Box Type Transformer Substation
original name specifications unit 1
Three position load switch 600A,15 1PCS 2
Plug - in fusion electric 25A 3PCS 3
Insert fuse holder 15KV 3PCS 4
Single-pass casing 630A,15KV 3PCS 5
Insulation cap 200A 3PCS 6
Transformer body ZGS13-630/10-0.4 1PCS 7
ammeter 6l2-A 19PCS 8
voltmeter 6L2-V 0-450V 1PCS 9
Voltage switch LW5-16D YH3/3 1PCS 10
Reactive power compensator LJKW 1PCS 11
Surge protector HL 1-B-100KA-40 2PCS 12



Our Services

1. Varies kinds of cable support system, you can enjoy the one-stop shopping in our company.

2. Foucs on cable support system over 10 years,We are professional on service.
3. We will do inspection before each shipment
4. We have own lab for all kinds of test.

5. Custom and special design is available.
6. Discount and promotion price is available.
7. Technology support is available.


 33kv 600kVA Electrical Substation Box Three Phase Power Distribution Substation 1


33kv 600kVA Electrical Substation Box Three Phase Power Distribution Substation 2
