Detail Information
Material:	Aluminum Or Copper	Usage:	Distribution Transformer
Capacity:	100kva-2500kva	Product Name:	Dry Type Transformer
Certificate:	CE,ISO,CQC,SABS,CCC	Input Voltage:	10kv,6kv To 11kv,5-35kV
Output Voltage:	200v/220/240/380v/400v/415v/440v	Frequency:	50/60Hz
Standard:	IEC60076	Ambient Temperature:	-15℃~+40℃

Product Description

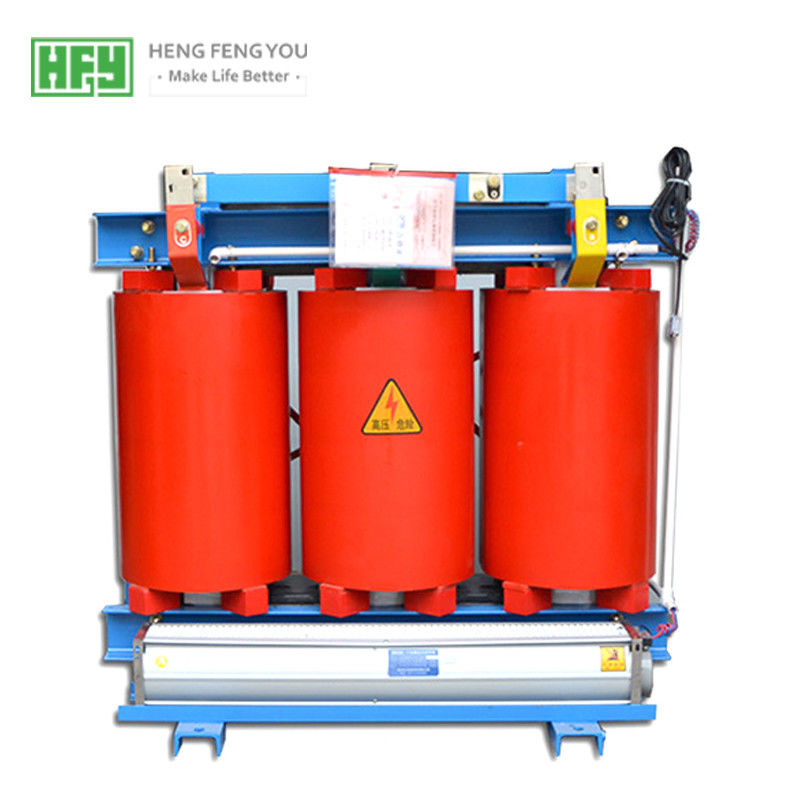

Copper coil three-phase 400kva amorphous dry-type power distribution transformer 10kv/11kv

Dry-type transformer has the advantages of large short-circuit resistance, little maintenance work, high operation efficiency, small dimension and low noise, which is commonly used in places with high requirements of fireproof and explosion-proof. This type transformer is widely used in local lighting, high buildings, airports, docks, CNC machinery and others. Its cooling methods are divided into natural air cooling (AN) and forced air cooling (AF). The transformer can operate continuously for a long time under rated capacity under natural air cooling. Output capacity of the transformer can increase by 50% under forced air cooling. It is suitable for intermittent overload operation or emergency overload operation. Due to the load loss and impedance voltage increase significantly when overload, it is not suitable for long time continuous overload operation.

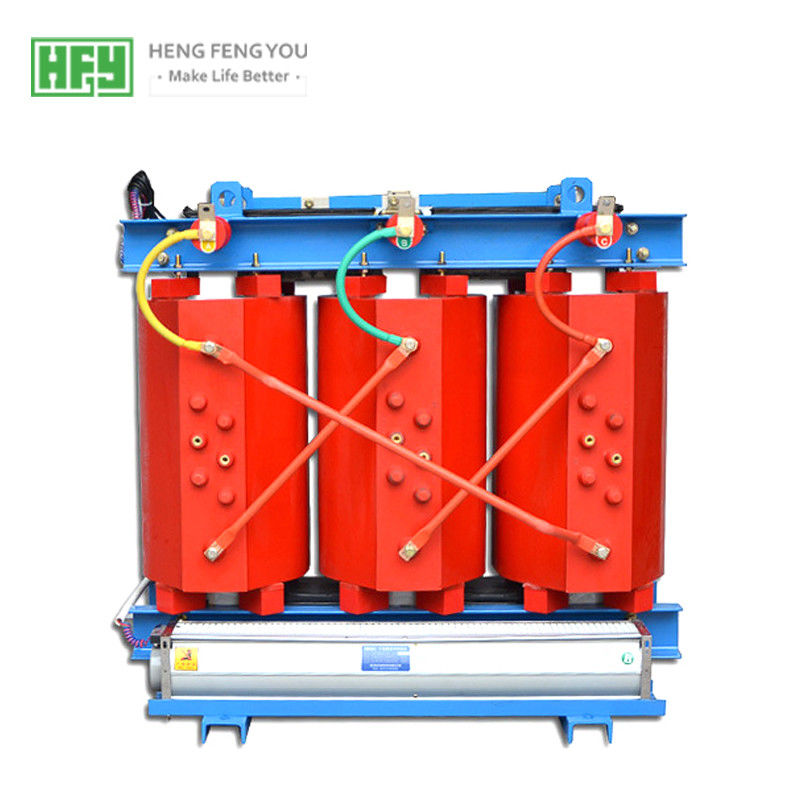

Copper coil three phase 400kva amorphous dry type power distribution transformer 10kv/11kv 0

Technical data

Type	Rated capacity (KVA)	Connection groupgrade	Voltagecombination(KV)			Noloadloss (W)	loadloss(W) DyYy	No-load current(%)	Short-circuit resistance(%)
Type	Rated capacity (KVA)	Connection groupgrade	HighvoltageTappingrang		eLowvoltage	Noloadloss (W)	loadloss(W) DyYy	No-load current(%)	Short-circuit resistance(%)
SC12-30	30	YynO . Dyn11	10 6.3 6	土5% +2x2.5% +x2.5%	0.4	150	710	2.3	4.0
SC12-50	50					215	1000	2.2
SC12-80	80					295	1380	1.7
SC12-100	100					320	1570	1.7
SC12-125	125					375	1850	1.5
SC(B)12-160	160					430	2130	1.5
SC(B)12-200	200					495	2530	1.3
SC(B)12-250	250					575	2760	1.3
SC(B)12-315	315					705	3470	1.1
SC(B)12--400	400					785	3990	1.1
SC(B)12-500	500					930	4880	1.1
SC(B)12-630	630					1070	5880	0.9
SC(B)12-630	630					1040	5960	0.9
SC(B)12-800	800					1215	6960	0.9
SC(B)12-1000	1000					1415	8130	0.9
SC(B)12-1250	1250					1670	9690	0.9
SC(B)12-1600	1600					1960	11730	0.9
SC(B)12-2000	2000					2440	14450	0.7
SC(B)12-2500	2500					2880	17170	0.7

Structural features

1. Safe, fireproof, and pollution-free;

2. Advanced technology, high mechanical strength, strong short-circuit resistance, small partial discharge, good thermal stability, high reliability, and long service life;

3. Low loss, low noise, obvious energy-saving effect, maintenance-free;

4. Good heat dispersion and strong overload capacity. Forced air cooling can improve operational capacity;

5. Good moisture-proof performance, suitable for high-humidity and another harsh environment;

6. The dry-type transformer can be equipped with complete temperature detection and protection system. The intelligent signal temperature control system, with the function of alarm and circuit trip, can automatically detect and display the working temperature of the three-phase winding, automatically start and stop the fan.

7. Small dimension, lightweight, small floor area, and low installation cost.

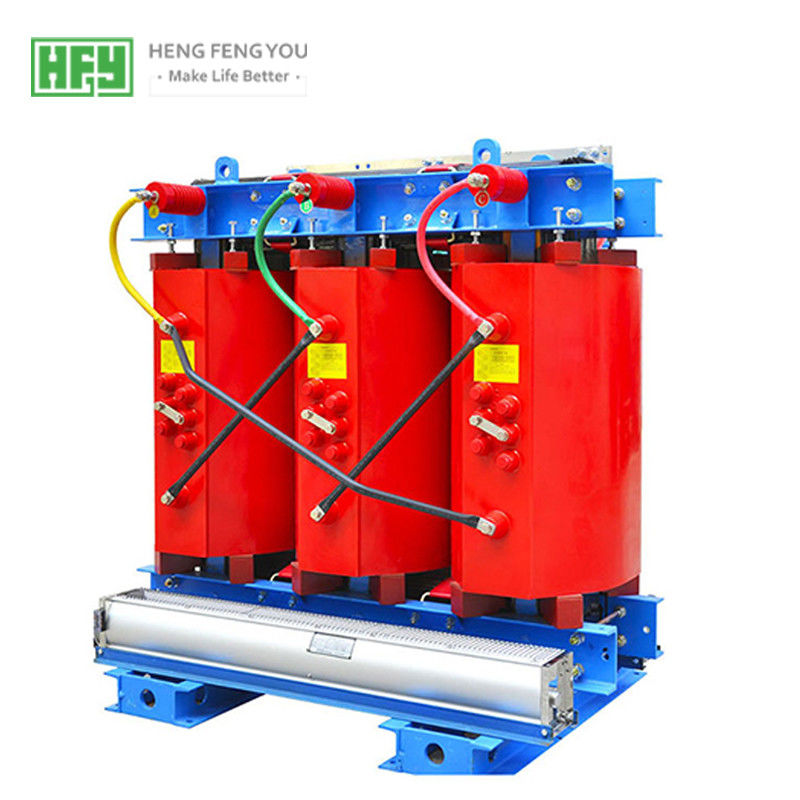

Copper coil three phase 400kva amorphous dry type power distribution transformer 10kv/11kv 1

Points to note

1.working condition

* Device types: indoor type

* Normal environment conditions of use: the elevation not more than 1000 m

* Environmental highest temperature + 40℃, minimum-25 ℃

* The special environment conditions of use: elevation of more than 1000 m

* Environmental highest temperature + 40 ℃, minimum-45 ℃. (when you order details)

* Mounting ambicnt: no corrosive gas, no obvious dirt environment

2.applicable standard

* IEC60076 power transformer

* IEC723 dry power transformer

* GB6450-1986 dry power transformer

* GB/R1094-1996 power transformer

* GB4208-1993 outer shell protect grade(IP code)

Tag:

Product Details:
Place of Origin:	China
Brand Name:	HENGFENGYOU
Certification:	ISO IEC CB COC KEMA SNI SABS CCC
Model Number:	SCB
Payment & Shipping Terms:
Minimum Order Quantity:	1
Price:	200-200000/piece
Packaging Details:	wooden case
Delivery Time:	15 DAYS
Payment Terms:	LC T/T
Supply Ability:	5000 pieces/year
