ZW8 Vacuum Circuit Switch 630A Rated Current For Composite Insulation ZW8-12 / 630-20

Product Details:
Place of Origin: China
Brand Name: HENGFENGYOU
Certification: IEC CB COC KEMA SNI SABS CCC
Model Number: ZW8-12 / 630-20
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-5000/piece
Packaging Details: wooden case
Delivery Time: 15 days
Payment Terms: LC T/T
Supply Ability: 20000 pieces/year
Contact Now

Detail Information

Model Number: ZW8-12/630-20 Poles Number: 3
Rated Voltage: 12KV Mechanical Life: 10000 Times
Rated Current: 630A Rated Short Circuit Breaking Current: 20A
Frequency: AC 50/60 Hz
High Light:

electrical vacuum breaker

,

vacuum circuit switch

Product Description

Supply ZW8-12 / 630-20 high voltage vacuum circuit breaker, ZW8 outdoor vacuum switch





ZW8 series switch features

1. according to user needs can be installed 50 / 5,100 / 5,200 / 5,400 / 5,630 / 5 current

transformer external insulation using high-voltage silicone rubber sleeve for composite

insulation! .

2. built-in multi-tap current transformer can be used as over-current protection . !

3.The double-winding current transformer can be used for protection and measurement.

If the voltage transformer, auto-reclosing controller and auto-sectioning controller are installed,

the distribution protection automation and the functions of remote measurement, remote signal,

remote control and remote adjustment of "four remote" can be realized . . !

4.can be installed isolation switch . !





额定电压Ratedvolage 12kV
额定电流Ratedcurrent 630A
工频耐压Powerfrequencywithstandvoltiage 42kV/48kV
雷电冲击耐压(峰值)LUghtningmpulsewithstandvllago(pcak) 75kV/85kV
额定短路开断电流(有效值)Ratedsthortcircutbreakingcurrent 20kA
额定短路关合电流(峰值)Ratedshortcircuiltmakingcurrent(peakvalue) 50kA
额定操作顺序Ratedsequencefoperations 分-0.3S合分-180S合分0-0.3s-C0-180s-CO
额定短路电流开断次数Ratedshort-circutcurrentbreakingtimes 30次
机械寿命Mechanicallte 10000次
额定操作电压(合/分闸线圈)Ratedoperatingvlage(close/brakecoil) DC220VAC220V
动,静触头允许磨损厚度Wearthicknessbetveenaynamicandstaticcontactor 3mm
隔离断口断开距离Isodlatingtracturebreakdistance >200mm

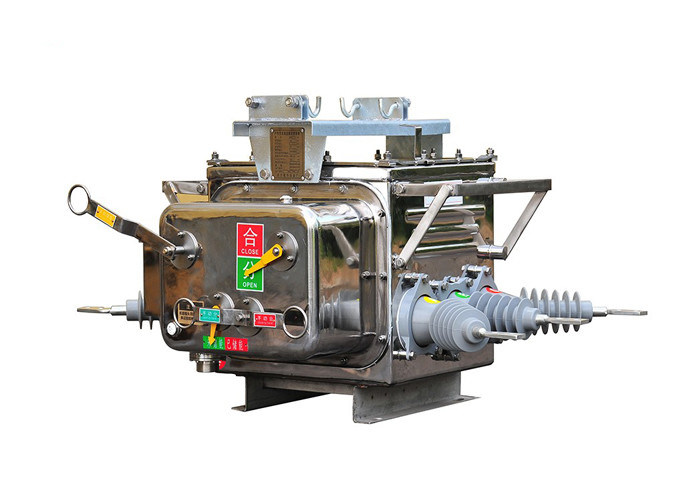

ZW8 Vacuum Circuit Switch 630A Rated Current For Composite Insulation ZW8-12 / 630-20 0



Specification:



Snapped vacuum interrupter,air insulated,with electric spring operating mechanism,allowing

breaking the ability strong,high frequency short-circuit breaking,no fire and explosion hazards,

easy operation is an excellent,practical,strong product.

The product structure using three-phase common tank type,casing into the outlet,cabinets dry

air,electric spring mechanism is disposed on the side of the box,can be used under relatively

harsh environmental conditions.

This product is vacuum interrupter ceramic shell,goblet longitudinal magnetic field electrode

structure,copper-chromium contact materials,with excellent breaking and closing short-circuit

current capability.

The product is small,light weight,becautiful apperance.vacuum interrupter ans insulation support

sleeve design compact,pole qualifying conductive silicone rubber outer note,can adapt to harsh

weather confitions and dirty environmrnts.

ZW8 Vacuum Circuit Switch 630A Rated Current For Composite Insulation ZW8-12 / 630-20 1
