|Place of Origin:||China|
|Certification:||ISO IEC CB COC KEMA SNI SABS CCC|
Payment & Shipping Terms:
|Minimum Order Quantity:||1|
|Packaging Details:||wood pack|
|Delivery Time:||15 DAYS|
|Supply Ability:||5000 pieces/year|
|Type:||Dry Type,transformer,Cast Resin||Material:||Copper, Aluminum|
|Usage:||Power Distribution Transformer||Phase:||Three,Single|

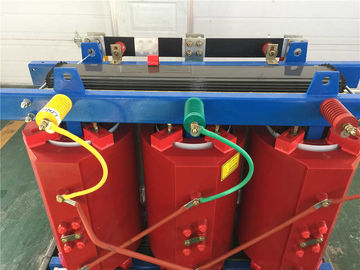

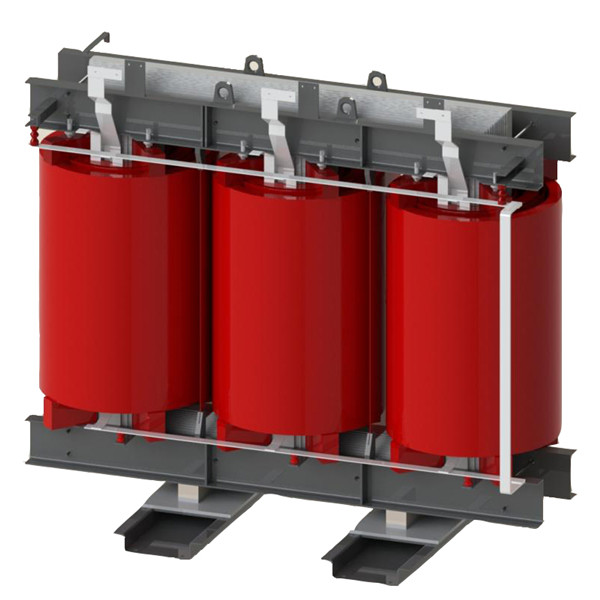

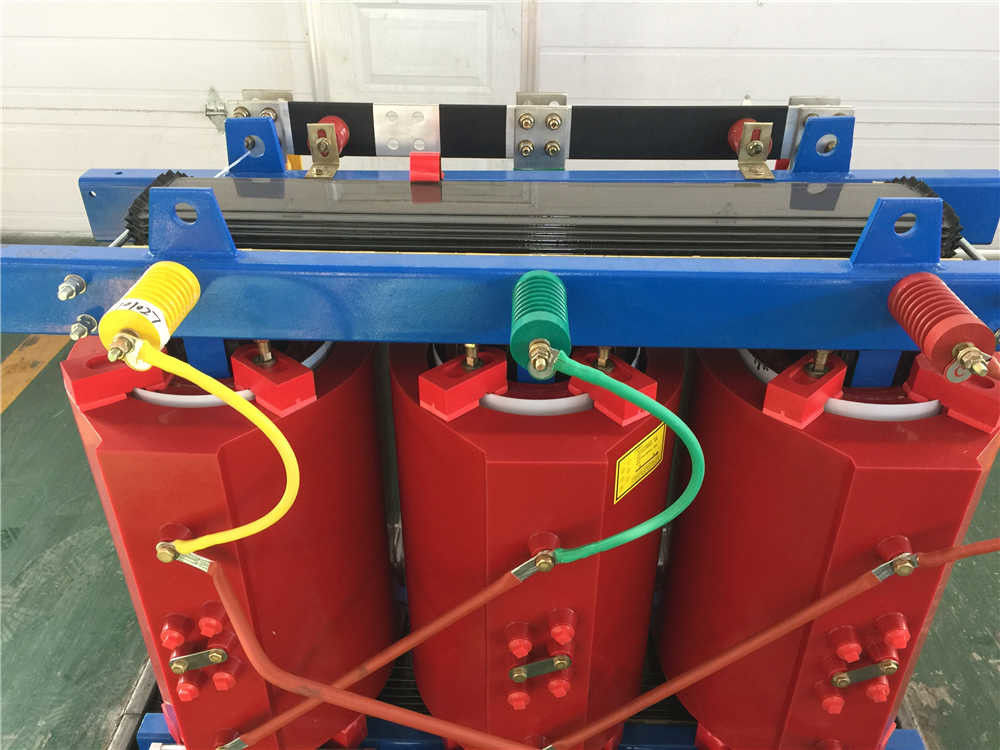

This series three phase dry type transformer is suitable for circuit of AC 50/60Hz and voltage 1000V and below, the three phase power transformer of LV complete set switchgear and electric driving control gear.
This series of three phase dry type transformer can be designed into open type or protective type, with advantages of low loss, low noise, favorable flame resistance, no environmental pollution etc.
Conditions of Use:
1. Meet the following requirements for the normal conditions of use conditions:
Altitude less than 1000m.
The maximum daily average temperature +40 °C
The highest annual average temperature +20 °C
Minimum temperature of -25 °C (for outdoor type transformers)
Minimum temperature of -5 °C (for indoor type transformer)
2. Special conditions of use conditions
Altitude more than 1000m.
The maximum temperature +45 °C
Minimum temperature of -25 °C
3. Power supply voltage waveform Supply voltage sine wave shape.
4. Symmetry of multi-phase power supply Multi-phase transformer is connected to the supply voltage should be approximately symmetrical.
1. Ultra low loss , energy and high electricity efficiency --- loss saving 70% compared with the traditional transformer no-Load electricity consumption;
2. Three column amorphous core,adopting the invention patenttechnology which has Ultra low working noise and solve thoroughly high working noise;
3. Low energy consumption and low loss characteristics of amorphous materials can save power consumption .reduce thepower generation, decrease relative S02 and C02 exhaustemission, reduce environmental pollution and greenhouse effect, it is maintenance free and zero pollution;
4. Low working temperature,the full load operating temperature less than 70℃,the insulation degradation slow so that the service life is long very much;
5. High overload capacity,high mechanical strength;
6. The amorphous core retain has the characteristics of low ironloss and low magnetizing current when passing high frequencyflux, so it will not cause core saturation and posses good harmonic resistance;
7. Fast capital recovery.
Note: due to the constantly updated products, shape size and product weight in the table will have some changes, please refer to provide the appearance size chart when ordering.
