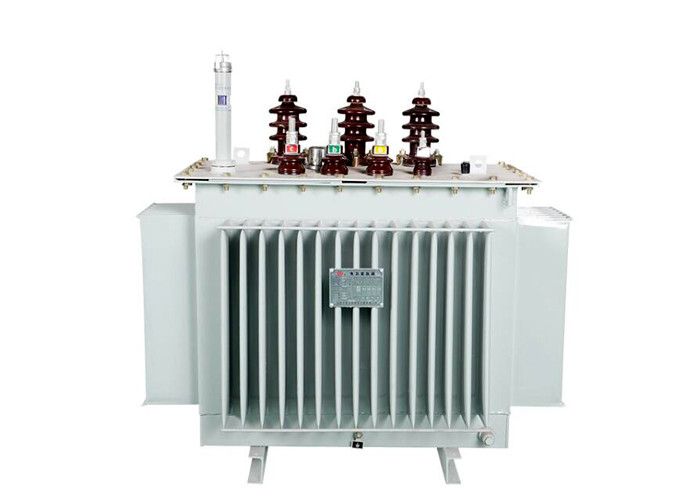

Sh15 Amorphous Alloy Power Distribution Transformer Full Enclosed 400kVA

Product Details:
Place of Origin: China
Model Number: SH-15
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 500-30000
Packaging Details: wooden case
Delivery Time: 15 DAYS
Payment Terms: LC T/T
Supply Ability: 5000 pieces/year
Contact Now

Detail Information

Material: Copper Output Voltage: 6.3kv
Frequency: 50/60Hz Rated Capacity: 1000 Kva
Coil Number: 2 Windings Input Voltage:: 110v/200v/220v/240v/360v/480v
Model Number:: Customized
High Light:

three phase oil immersed transformer


oil immersed distribution transformer

Product Description

Sh15 Amorphous Alloy Full Enclosed 400kVA Used Power Distribution Transformers









Voltagecombination(KV) No-loadloss







Highvoltage Tappingrange Lowoltage (W)
SH15-M-30 30 Dyn11









0.4 3 630/600 1.50 4.0
SH15-M-50 50 3 910/870 1.20 4.0
SH15-M-63 63 0 1090/1040 1.10 4.0
SH15-M-80 80 30 1310/1250 1.00 4.0
SH15-M-100 100 75 1580/1500 0.90 4.0
SH15-M-125 125 35 1890/1800 0.80 4.0
SH15-M-160 160 100 2310/2200 0.60 4.0
SH15-M-200 200 120 2730/2600 0.60 4.0
SH15-M-250 250 140 3200/3050 0.60 4.0
SH15-M-315 315 170 3830/3650 0.50 4.0
SH15-M-400 400 200 4520/4300 0.50 4.0
SH15-M-500 500 240 5410/5150 0.50 4.0
SH15-M-630 630 320 6200 0.30 4.5
SH15-M-800 800 380 7500 0.30 4.5
SH15-M-1000 1000 450 10300 0.30 4.5
SH15-M-1250 1250 530 12000 0.20 4.5
SH15-M-1600 1600 630 14500 0.20 4.5
SH15-M-2000 2000 750 18300 0.20 5.0
SH15-M-2500 2500 900 21200 0.20




Product features

1.This product is ilfilled sealing type. The theory is the same with that of closed- type power

transformer. The basic elements of amorphous alloy are iron, nickel, cobalt, silicon, boron,

carbonand so on. It is a kind of isotropic soft magnetic material with low magnetic power and

withoutstructure defect which hinders the movement of domain wall. It is extremely thin, only


2.The filling coefficient is as smaller as 0.75-0.8, the specific resistance is high which is about

3-6times of that of silicon steel plate and the hardness of it is 5 times of that of silicon steelsheet.

Amor-phous alloy materials are highly profitable. Load loss of SH15-M-30" -2500/6*10 series

products isdecreased by15% compared to the standard value set forthin GB/T 6451. The no-load

loss is decreasedby70% compared to the standard value setforth in GB/T6541. The standard

JB/T10318-2002 TechnicalParameters of Oil-immersed Amorphous Alloy Core Dstibutioni

Transfomers is executed.S13 type 10KV double winding series main product property parameters

 Sh15 Amorphous Alloy Power Distribution Transformer Full Enclosed 400kVA 0



Technical requirements


1.Hengfengyou continues to increase investment of technical strength and modernequipment,

optimizes the production process and process constantly, has estab-lished strict and perfect

quality management standard, conducts strict moni-toring for each process from raw material

receiving inspection, production, fin-ished product inspection and warehousing, finished

products delivery toinstallation, never allows unqualified products to flow out, takes the idea

of"Zero Defect" into each detail bit by bit, ensures each process be able opass all standards,

and manufactures perfect products carefully.


2.It is our excellent internal control standard and product quality assurancesystem that makes

Hengfengyou transformer achieve favor from more andmore customers, and obtain affimation

from domestic and foreign customers

Sh15 Amorphous Alloy Power Distribution Transformer Full Enclosed 400kVA 1
Product transportation

1.Sea Transportation transportation


3.railway transportation


4.Air Transportation


Sh15 Amorphous Alloy Power Distribution Transformer Full Enclosed 400kVA 2






Qualification certificate


All products of the company have passed the national type test like CCC, CQC , CTQC

and other national mandatory product certification, and has a perfect quality, occupational

health and environmental management system certification system. Our products have

passed ISO9001, 2000 and other international quality system certification.

Sh15 Amorphous Alloy Power Distribution Transformer Full Enclosed 400kVA 3
