Detail Information
Usage:	Power,Distribution Transformer	Coil Number:	Autotransformer,double Winding
Phase:	Three,Single	Frequency:	50/60Hz
Rated Capacity:	30-3000kva	Type:	Dry Type,transformer,Cast Resin
Output Voltage:	200V/220V/230V/240V/380V/400V/ 415V/440V/480V/600V/690V	Standard:	IEC60076,IEC,GB1094-1996; JB/T10088-2004; GB/T6451-2008; EQV,CNS,EC/ GB/T6451-2008
Product Name:	3 Phase Dry Type Electrical Transformer 300kva,Dry Type 10kva 440v To 220v Three Phase Transformer	Material:	Copper,amorphmos Alloy
High Light:	cast resin dry type transformer , power distribution transformer

Product Description

Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.

SCB13 dry transformer

·Product introduction

Compared with model scb12 epoxy resin cast three-phase dry-type transformer, model scb13 dry-type transformer is a new upgrading generation product. Its no-load loss reduces by 5% compared with model scb12, showing significant energy-saving effect. Meanwhile, it is safe, fire-retardant, pollution-free, maintenance free and easy installation. With good moisture-proof performance, it can restart without pre-drying after shutdown. This model shows low loss, low partial discharge and low noise. Under forced air cooling, it can operate at 120% of rated load. Perfect temperature protection and control system provides reliable guarantee for the safe operation of the transformer.

Normal service conditions

The height above the sea level is below 1000m;
Highest air temperature +40ºC;
Highest daily average air temperature+30ºC;
Highest annual average air temperature +20ºC;
Lowest outdoor air temperature -5ºC.

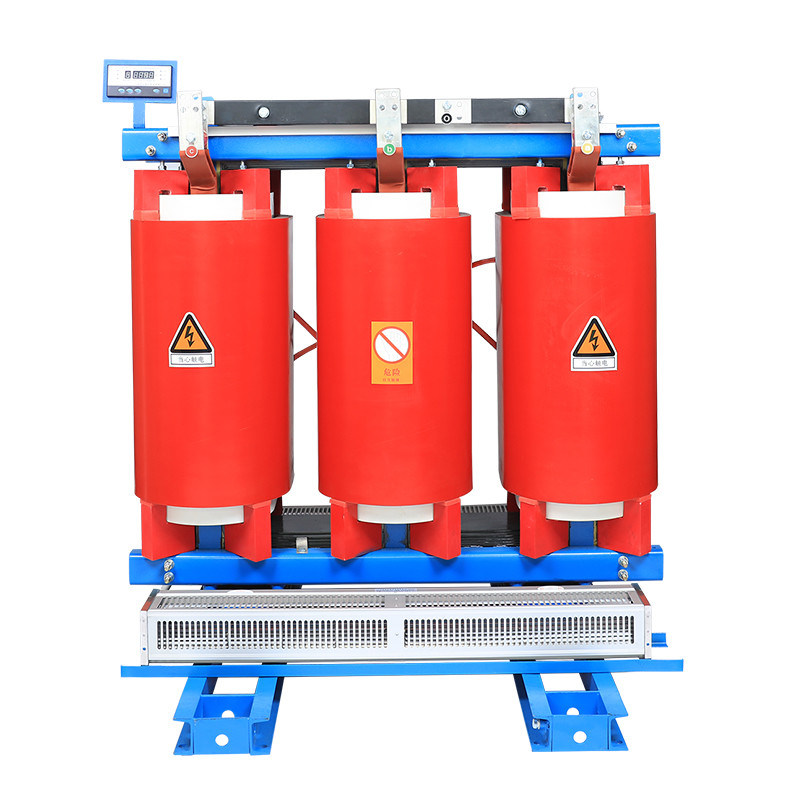

Electrical Power Distribution Transformer Cast Resin 1500 Kva High Efficiency Indoor 0
10/0.4kV Dry Type transformer Technical parameters(Second level of energy efficiency)

Rated capacity (kVA)	Voltage combination			Connected group label	No-load loss (W)	Load loss(W)			No-load current(%)	Impendace voltage (%)	sound power level (dB)	Exterior size (L x w x h)	Total weight (kg)
	High voltage(kV)	tap range	Low Voltage (kV)			Load loss(W)
						130°C(B)	155°C(F)	180°C(H)
						100°C	120°C	145°C
30	6 6.3 6.6 10 10.5 11	±2 x 2.5 ±5	0.4	Dyn11	150	670	710	760	0.6	4.0	57	900 x 900 x 800	300
50					215	940	1000	1070	0.6		57	955 x 900 x 900	350
80					295	1290	1380	1480	0.6		58	985 x 950 x 960	400
100					320	1480	1570	1690	0.6		58	1035x1250x980	450
125					375	1740	1850	1980	0.6		59	1060x1280x1000	500
160					430	2000	2130	2280	0.6		59	1120x1320x1050	680
200					495	2370	2530	2710	0.5		60	1135x1330x1105	770
250					575	2590	2760	2960	0.5		60	1170x1330x1165	900
315					705	3270	3470	3730	0.5		62	1185x1360x1225	1010
400					785	3750	3990	4280	0.4		62	1210x1380x1300	1205
500					930	4590	4880	5230	0.4		63	1245x1400x1380	1400
630					1070	5530	5880	6290	0.4		63	1295x1410x1355	1515
630					1040	5610	5960	6400	0.3	6.0	63	1295x1410x1355	1515
800					1210	6550	6960	7460	0.3		65	1375x1450x1480	1880
1000					1410	7650	8130	8760	0.3		65	1430x1480x1525	2170
1250					1670	9100	9690	10300	0.25		67	1480x1500x1570	2525
1600					1960	11000	11700	12500	0.25		67	1500x1520x1710	2980
2000					2440	13600	14400	15500	0.20		69	1570x1550x1735	3480
2500					2880	16100	17100	18400	0.20		69	1625x1600x1825	4080
1600					1960	12200	12900	13900	0.25	8.0	67	1500x1520x1710	2980
2000					2440	15000	15900	17100	0.20		69	1570x1550x1735	3480
2500					2880	17700	18800	20200	0.20		69	1625x1600x1825	4080

Note: due to the constantly updated products, shape size and product weight in the table will have some changes, please refer to provide the appearance size chart when ordering.

ATTENTION:
1. The payment term: We accept TT,30% deposit and Pay 70% before shipment.
2. The delivery time: Usually it will take about 15-20 days.
Note: due to the constantly updated products, shape size and product weight in the table will have some changes, please refer to provide the appearance size chart when ordering.
3. The standard of package: Usually use strong wood case for protection.

OUR SERVICE:

1. quick response in before sales period help you got order.
2. excellent service in production time let you know each step we made.
3. reliable quality solve you after sale headache.
4. long period quality warranty ensure you can buy without hesitate.

Electrical Power Distribution Transformer Cast Resin 1500 Kva High Efficiency Indoor 1

Electrical Power Distribution Transformer Cast Resin 1500 Kva High Efficiency Indoor 2

Tag:

Product Details:
Place of Origin:	China
Brand Name:	HENGFENGYOU
Certification:	ISO IEC CB COC KEMA SNI SABS CCC
Model Number:	SCB10,11,12
Payment & Shipping Terms:
Minimum Order Quantity:	1
Price:	200-200000/piece
Packaging Details:	wood pack
Delivery Time:	15 DAYS
Payment Terms:	LC T/T
Supply Ability:	5000 pieces/year
