Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | HENGFENGYOU |
Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
Model Number: | SCB10,11,12 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 |
Price: | 200-200000/piece |
Packaging Details: | wood pack |
Delivery Time: | 15 DAYS |
Payment Terms: | LC T/T |
Supply Ability: | 5000 pieces/year |
Detail Information |
|||
Material: | Copper,amorphmos Alloy | Input Voltage: | 11kv/10.5kv/10kv/6.3kv/6kv |
---|---|---|---|
Usage: | Power Distribution Transformer | Coil Number: | Double Winding |
Phase: | Three,Single | Frequency: | 50/60Hz |
Rated Capacity: | 30-3000kva | Low Voltage: | 10 - 0.4/0.23kV |
High Light: | cast resin dry type transformer,power distribution transformer |
Product Description

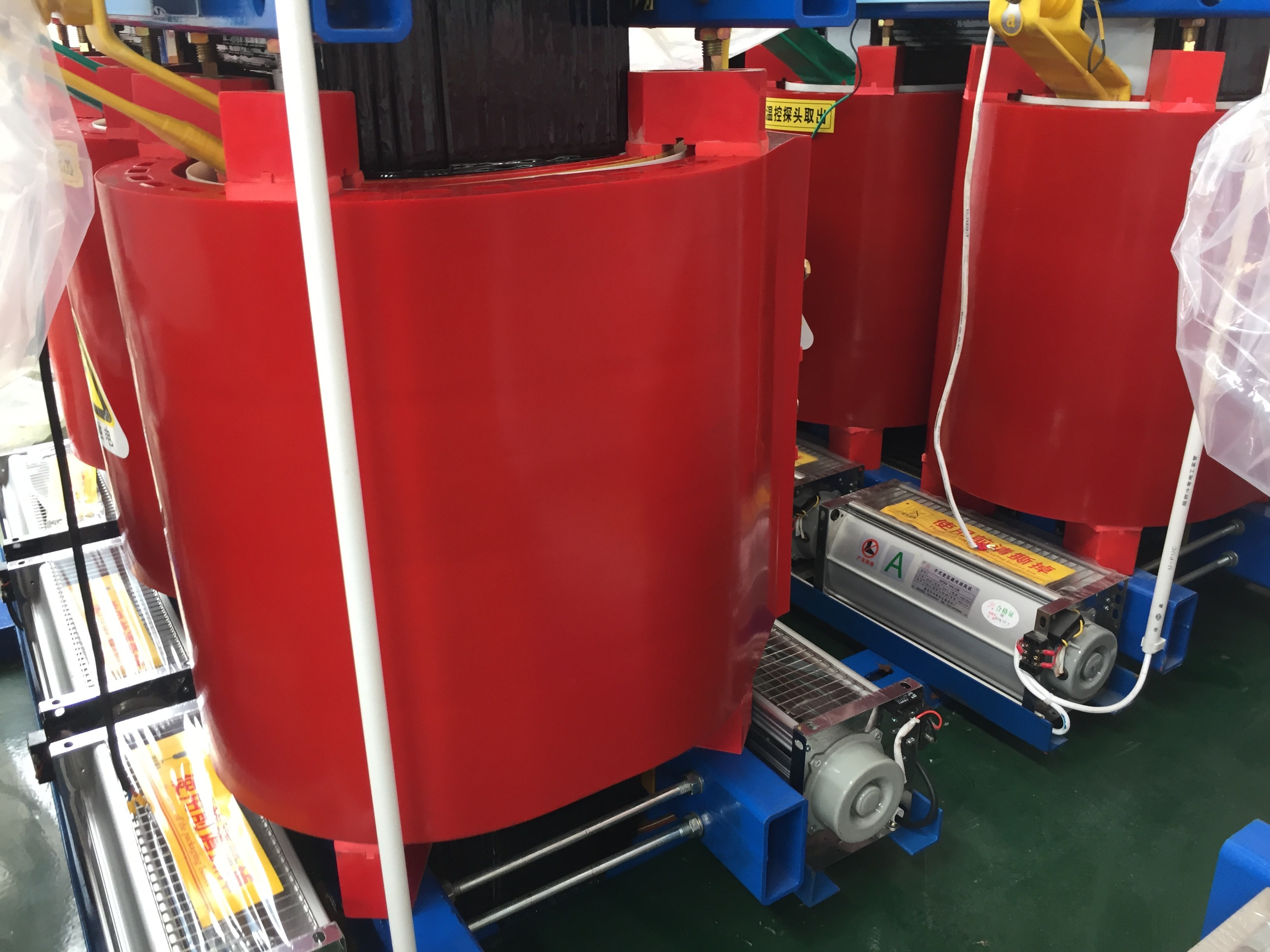

SC(B) series Cast Resin Dry Type Transformer
Product description
Our SC(B) series epoxy resin cast dry transformer is cast under vacuum with thin insulating bands automatically. The core is made of high-permeable grain-orientated silicon sheet and cast with imported epoxy resin. Thanks to advanced technology, quality raw materials, scientific management, and perfect inspection means, our products have the following features:
The coil is reinforced with glass fiber and cast under vacuum with filler epoxy resin. It has good mechanical properties, is free of crack and inner bubble and has low local discharge, high reliability, and long service life.
The high and low voltage systems are cast under vacuum, thus the coil will not absorb moisture; the clamps of core are subjected to corrosion resistant treatment and it may run under high temperature or other serious environments.
Main technical data for 10kV SC(B)-30-2500 dry type transformer
Rated power (kVA) | High voltage (kV) |
H.V.Tap (kVA) |
Low Voltage (kV) |
Vector group | Short circuit impedance |
No-load loss (W) |
On-load loss (W) |
No-load Current (%) |
Insulation class |
Noise (dB) |
||
SC(B)9 | SC(B)10 | SC(B)9 | SC(B)10 | |||||||||
30 | 6 6.3 10 10.5 11 |
±5% +2×2.5% |
0.4 | Yyn0 Dyn11 |
4 | 220 | 1901 | 750 | 710 | 2.3 | F | 40 |
50 | 310 | 270 | 1060 | 1000 | 2.2 | 40 | ||||||
80 | 420 | 370 | 1460 | 1380 | 1.7 | 40 | ||||||
100 | 450 | 400 | 1670 | 1570 | 1.7 | 40 | ||||||
125 | 530 | 470 | 1960 | 1850 | 1.5 | 41 | ||||||
160 | 610 | 540 | 2250 | 2130 | 1.3 | 42 | ||||||
200 | 700 | 620 | 2680 | 2530 | 1.3 | 42 | ||||||
250 | 810 | 720 | 2920 | 2760 | 1.1 | 44 | ||||||
315 | 990 | 880 | 3670 | 3470 | 1.1 | 46 | ||||||
400 | 1100 | 980 | 4220 | 3990 | 1.1 | 46 | ||||||
500 | 1310 | 1160 | 5170 | 4880 | 0.9 | 47 | ||||||
630 | 1510 | 1340 | 6220 | 5880 | 0.9 | 47 | ||||||
630 | 6 | 1460 | 1300 | 6310 | 5960 | 0.9 | 47 | |||||
800 | 1710 | 1520 | 7360 | 6960 | 0.9 | 48 | ||||||
1000 | 1990 | 1770 | 8610 | 8130 | 0.9 | 48 | ||||||
1250 | 2350 | 2090 | 10260 | 9690 | 0.9 | 49 | ||||||
1600 | 2760 | 2450 | 12400 | 11730 | 0.9 | 50 | ||||||
2000 | 3400 | 3050 | 15300 | 14450 | 0.7 | 52 | ||||||
2500 | 4000 | 3600 | 18180 | 17170 | 0.7 | 55 |
Main technical data for 35 kV SCB(B)-50~2500 dry type transformer
Rated power (kVA) | High voltage (kV) |
H.V.Tap (kVA) |
Low Voltage (kV) |
Vector group | Short circuit impedance |
No-load loss (W) |
On-load loss (W) |
No-load Current (%) |
Insulation class |
Noise (dB) |
||
SC(B)9 | SC(B)10 | SC(B)9 | SC(B)10 | |||||||||
50 | 35 38.5 |
±5% +2×2.5% |
0.4 | Yyn0 Dyn11 |
6 | 500 | 450 | 1500 | 1430 | 2.8 | F | 53 |
100 | 700 | 630 | 2200 | 2090 | 2.4 | 56 | ||||||
160 | 880 | 790 | 2960 | 2810 | 1.8 | 58 | ||||||
200 | 980 | 880 | 3500 | 3330 | 1.8 | 59 | ||||||
250 | 1100 | 990 | 4000 | 3800 | 1.6 | 60 | ||||||
315 | 1310 | 1180 | 4750 | 4510 | 1.6 | 61 | ||||||
400 | 1530 | 1380 | 5700 | 5420 | 1.4 | 62 | ||||||
500 | 1800 | 1620 | 7000 | 6650 | 1.4 | 63 | ||||||
630 | 2070 | 1860 | 8100 | 7700 | 1.2 | 63 | ||||||
800 | 2400 | 2160 | 9600 | 9120 | 1.2 | 66 | ||||||
1000 | 2700 | 2430 | 11000 | 10450 | 1.0 | 66 | ||||||
1250 | 3150 | 2840 | 13400 | 12730 | 0.9 | 67 | ||||||
1600 | 3600 | 3240 | 16300 | 15490 | 0.9 | 68 | ||||||
2000 | 4250 | 3830 | 19200 | 18240 | 0.9 | 69 | ||||||
2500 | 4950 | 4460 | 23000 | 21850 | 0.9 | 73 |
Note: due to the constantly updated products, shape size and product weight in the table will have some changes, please refer to provide the appearance size chart when ordering.
· Order instructions:
1. The customer needs provide main parameters of the transformer (input and output voltage, capacity, loss, etc.)
2. Other customer requirements
· Our service:
1. quick response in before sales period help you got order.
2. excellent service in production time let you know each step we made.
3. reliable quality solve you after sale headache.
4. long period quality warranty ensure you can buy without hesitate.
