China Electrical Power Transformer manufacturer

Factory High Quality Distribution cabinet GCS draweable low voltage electrical Unit Switchgear

Product Details:
Place of Origin: China
Brand Name: HENGFENGYOU
Certification: ISO IEC CB COC KEMA SNI SABS CCC
Model Number: GGD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-20000/piece
Packaging Details: wooden case
Delivery Time: 30 days
Payment Terms: LC T/T
Supply Ability: 5000 piece/year
Contact Now

Detail Information

Model Number: GGD Type: Metal Clad
Rated Frequency: AC 50Hz (60Hz) Rated Current(A): 630, 1250, 1600, 2500, 3510, 4000
Customized: OEM/ODM Order Acceptable Application: Power Transmission Or Distribution
Product Name: Electrical Kyn28 12 Switchgear 11kv Rated Voltage: 3KV, 7.2KV, 12KV Optional
Comply Standards: DL/T404, IEC298,GB3906
High Light:

low tension switchgear

,

low voltage metal clad switchgear

Product Description

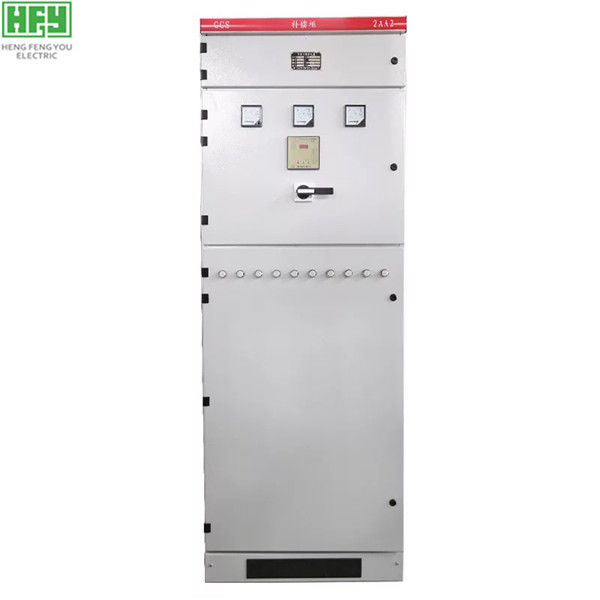

Factory High Quality Distribution cabinet GCS draweable low voltage electrical Unit Switchgear

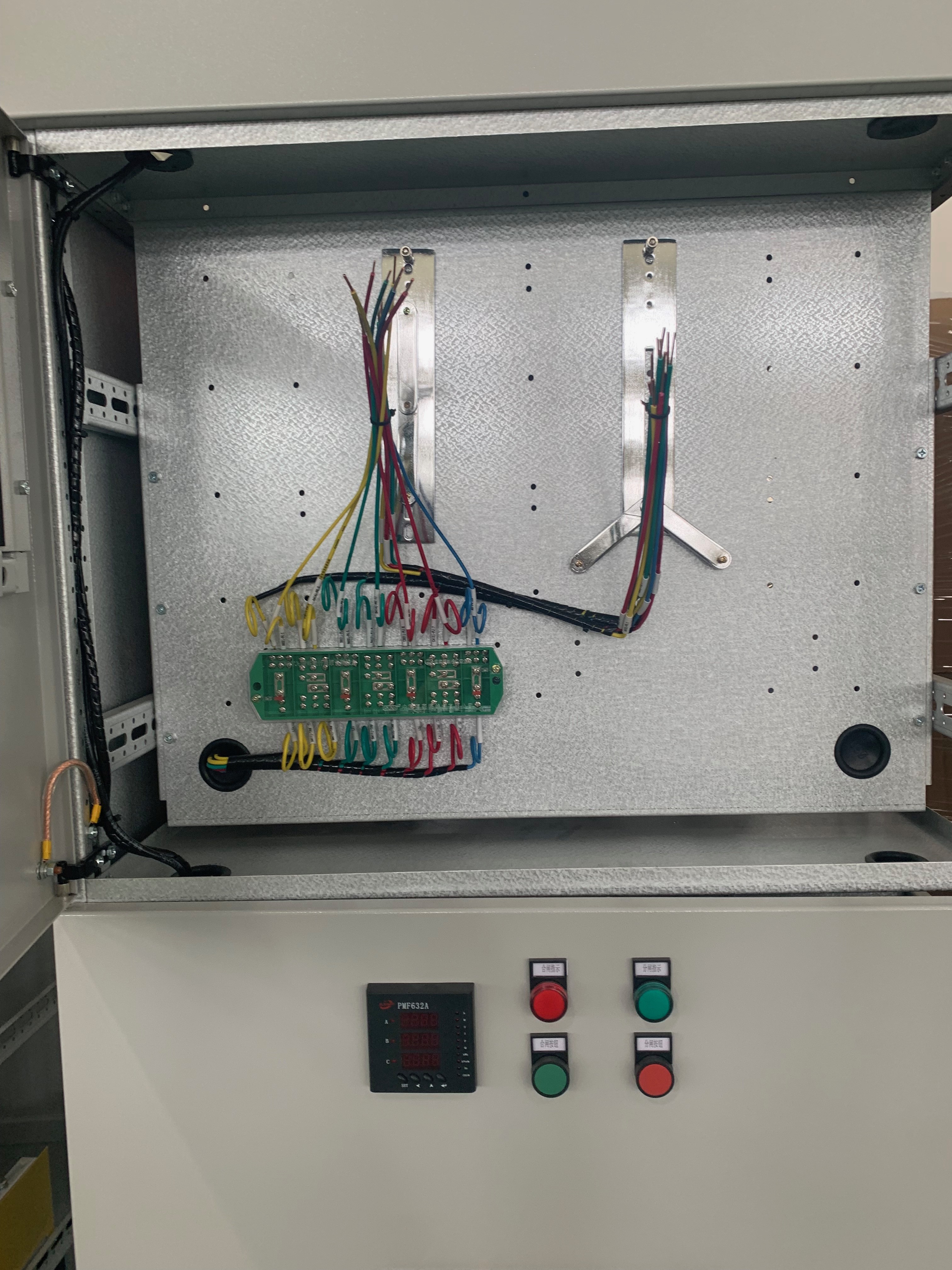

Factory High Quality Distribution cabinet GCS draweable low voltage electrical Unit Switchgear 0


Products Description

Type GCS low-voltage withdrawable type switchgear is a blend of the other advantages of low voltage products and the development of advanced products, applicable to power plants, petrochemical industry, metallurgy, telecommunications, light industry, textile, high-rise buildings and other civil and industrial and mining enterprises of power distribution system, in large power plants, petrochemical, telecommunication system, etc. A high degree of automation, and computer interface, as the motor centralized-control hair, power supply system of power distribution, low-voltage distribution of reactive power compensation device.



Structural features:

1.Framework using 8 mf type opening sections, installed on the main frame modulus is E = 20 mm and 100 mm Φ 9.2 mm of mounting holes, making flexible frame assembly.

2.The function rooms of the switch cabinet are isolated from each other, and the compartments are divided into functional unit rooms, bus rooms and cable rooms.The function of each chamber is relatively independent.

3.The horizontal busbar adopts the way of horizontal arrangement behind the cabinet to enhance the ability of the busbar to resist electric power.

4.The design of the cable compartment makes it very convenient to go in and out of the cable.

5.The module of drawer height is 160mm.Drawer changes change on height dimension only, its width, depth dimension is changeless.Drawers of the same functional unit have good interchangeability.Rated current of unit loop 400A and below.

6.Drawer panel with division, close, test, pull out the obvious mark of the position.The drawer unit is provided with a mechanical interlock.Drawer unit as the main body, at the same time with draw - out and fixed, can be mixed combination, arbitrary use.

7.The protection grade of cabinet body is IP30 IP40, still can choose according to user need.



Rated isolation voltage To 1000V
Rated operational voltage To 600V
Rated frequency 50 /60 Hz
Rated impact withstand voltage 8 kV
Rated voltage of auxiliary circuit AC380, 220V,DC 220V
Over voltage degree III
Pollution degree 3
Rated current 4000A
Horizontal busbar rated current 4000A
Vertival busbar rated current

2000, 1000A



Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.

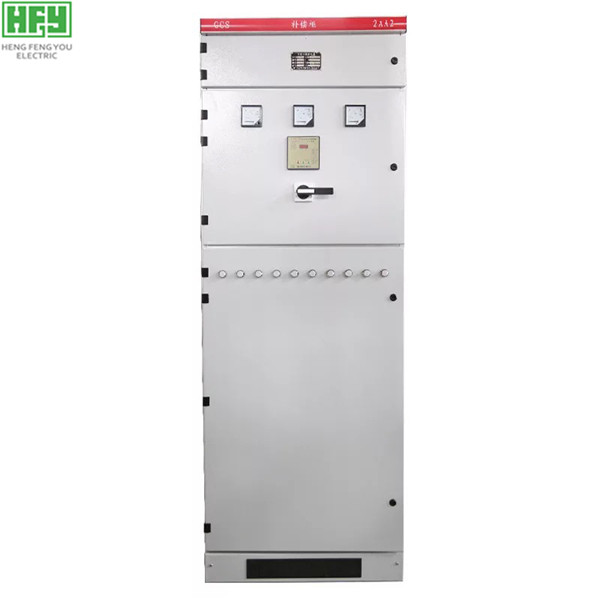

Factory High Quality Distribution cabinet GCS draweable low voltage electrical Unit Switchgear 1


Working Environment

1. Indoor altitude above sea level: Maximum installation altitude: 2000m

2. Ambient air temperature: -5℃~+40℃ and the average temperature should not

exceed +35℃ in 24h

3. Relative humidity should not exceed 50% at max temperature +40℃. Higher

relative humidity is allowed at lower temperature. Ex. 90% at +20℃. But in view of

the temperature change, it is possible that moderate dews will produce casually.

4. No fire, explosion danger, serious pollution, chemical corrosion and severe vibration

5. Installation gradient not exceed 5°

6. This product is suitable for the following temperature transportation storage: -25 ~+55 24h, in a short period of time (no more than 24hours) not more than+70℃.

Characteristics

This series of products with high breaking capacity, good dynamic stability, advanced and reasonable structure, electrical program of practical, series, strong versatility, various schemes of unit combination, a cabinet contained many circuits, save the area , beautiful appearance, high level protection, safe and reliable, convenient maintenance etc.

It accords with the standards IEC439 NEMA ICS2-322 as well as the GB7251-87 “Low voltage complete switch device ” national standards and ZBK36001-89 "low voltage withdraw type complete switch device” professional standards"



Factory High Quality Distribution cabinet GCS draweable low voltage electrical Unit Switchgear 2
