Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HENGFENGYOU |
| Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
| Model Number: | GGD, GCS |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | 200-20000/piece |
| Packaging Details: | wooden case |
| Delivery Time: | 30 days |
| Payment Terms: | LC T/T |
| Supply Ability: | 5000 piece/year |
|
Detail Information |
|||
| Model Number: | GGD. GCS | Type: | Metal Clad |
|---|---|---|---|
| Rated Frequency: | AC 50Hz (60Hz) | Rated Current(A): | 630, 1250, 1600, 2500, 3510, 4000 |
| Customized: | OEM/ODM Order Acceptable | Application: | Power Transmission Or Distribution |
| Product Name: | Electrical Kyn28 12 Switchgear 11kv | Rated Voltage: | 3KV, 7.2KV, 12KV Optional |
| Comply Standards: | DL/T404, IEC298,GB3906 | ||
| High Light: | low tension switchgear,low voltage metal clad switchgear |
||
Product Description

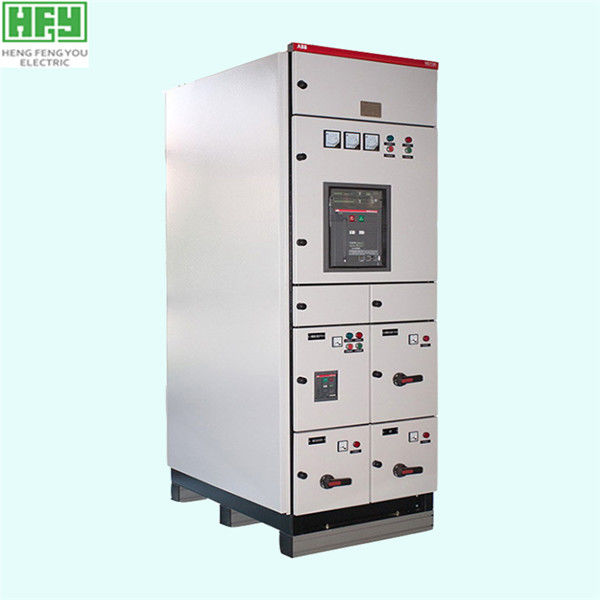

GCK/GCL Outdoor 400V Low Voltage Switchgear Distribution Electrical Switchgear Panel Cabinet Price Sizes
GCK type low-voltage withdrawable switchgear (hereinafter referred to as "device") is suitable for power distribution systems in power plants, petroleum, chemical, metallurgy, textile, high-rise buildings and other industries. In power plants, petrochemical systems, etc., where automation is high and the interface with the computer is required, as a three-phase AC frequency of 50 (60) Hz, the rated working voltage is 380V (400), (660V), and the rated current is 4000A or less. Low-voltage power distribution equipment used for power distribution, centralized motor control, and reactive power compensation in power supply systems.
Operating Conditions
1.The ambient air temperature is not higher than +40C, not lower than -5C, and the average temperature within 24H is not higher than +35C.
2.Atmospheric conditions: The relative humidity of the air does not exceed 50% at a maximum temperature of +40C. Higher humidity is allowed at lower temperatures. For example, 90% at +20C, but it should be considered that due to temperature changes, it is possible to occasionally produce moderate condensation.
3.Indoor use, the altitude does not exceed 2000M.
4.When the conditions of use of the device are different from the normal use conditions, the user negotiates with the manufacturer.
| Rated isolation voltage | To 1000V |
| Rated operational voltage | To 600V |
| Rated frequency | 50 /60 Hz |
| Rated impact withstand voltage | 8 kV |
| Rated voltage of auxiliary circuit | AC380, 220V,DC 220V |
| Over voltage degree | III |
| Pollution degree | 3 |
| Rated current | 4000A |
| Horizontal busbar rated current | 4000A |
| Vertival busbar rated current |
2000, 1000A |
Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.
Company introduction
Qingdao HengFengYou Electrical Engineering Co. LTD., aka HFY Electrical Engineering, is a Chinese leading manufacturer and supplier in electricity transmission and distribution industry.
With 30 years of competition and development in China, by now HFY Electrical Engineering has 6 wholly-owned subsidiaries, 50 senior technicians, 350 employees, established sales network and customer service team. From research and development, manufacturing to the final project engineering, HFY provides better solution to clients than others.
Our main market covers medium voltage, high voltage and ultra-high voltage power distribution.
1. Indoor altitude above sea level: Maximum installation altitude: 2000m
2. Ambient air temperature: -5℃~+40℃ and the average temperature should not
exceed +35℃ in 24h
3. Relative humidity should not exceed 50% at max temperature +40℃. Higher
relative humidity is allowed at lower temperature. Ex. 90% at +20℃. But in view of
the temperature change, it is possible that moderate dews will produce casually.
4. No fire, explosion danger, serious pollution, chemical corrosion and severe vibration
5. Installation gradient not exceed 5°
6. This product is suitable for the following temperature transportation storage: -25℃ ~+55℃ 24h, in a short period of time (no more than 24hours) not more than+70℃.
