Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HENGFENGYOU |
| Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
| Model Number: | SCBH15 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | 200-200000/piece |
| Packaging Details: | wooden case |
| Delivery Time: | 15 DAYS |
| Payment Terms: | LC T/T |
| Supply Ability: | 5000 pieces/year |
|
Detail Information |
|||
| Material: | Aluminum Or Copper | Usage: | Single-phase Transformer, Rectifier Transformer, Combined Transformer, Power Transformer, Distribution Transformer |
|---|---|---|---|
| Capacity: | 100.125.160.200.250.315.400.500.630.800.1000 | HS Code: | 85043190 |
| Product Name: | Dry Type Transformer | Certificate: | CE,ISO,CQC,SABS,3C |
| High Light: | cast resin dry type transformer,dry cast resin transformers |
||
Product Description

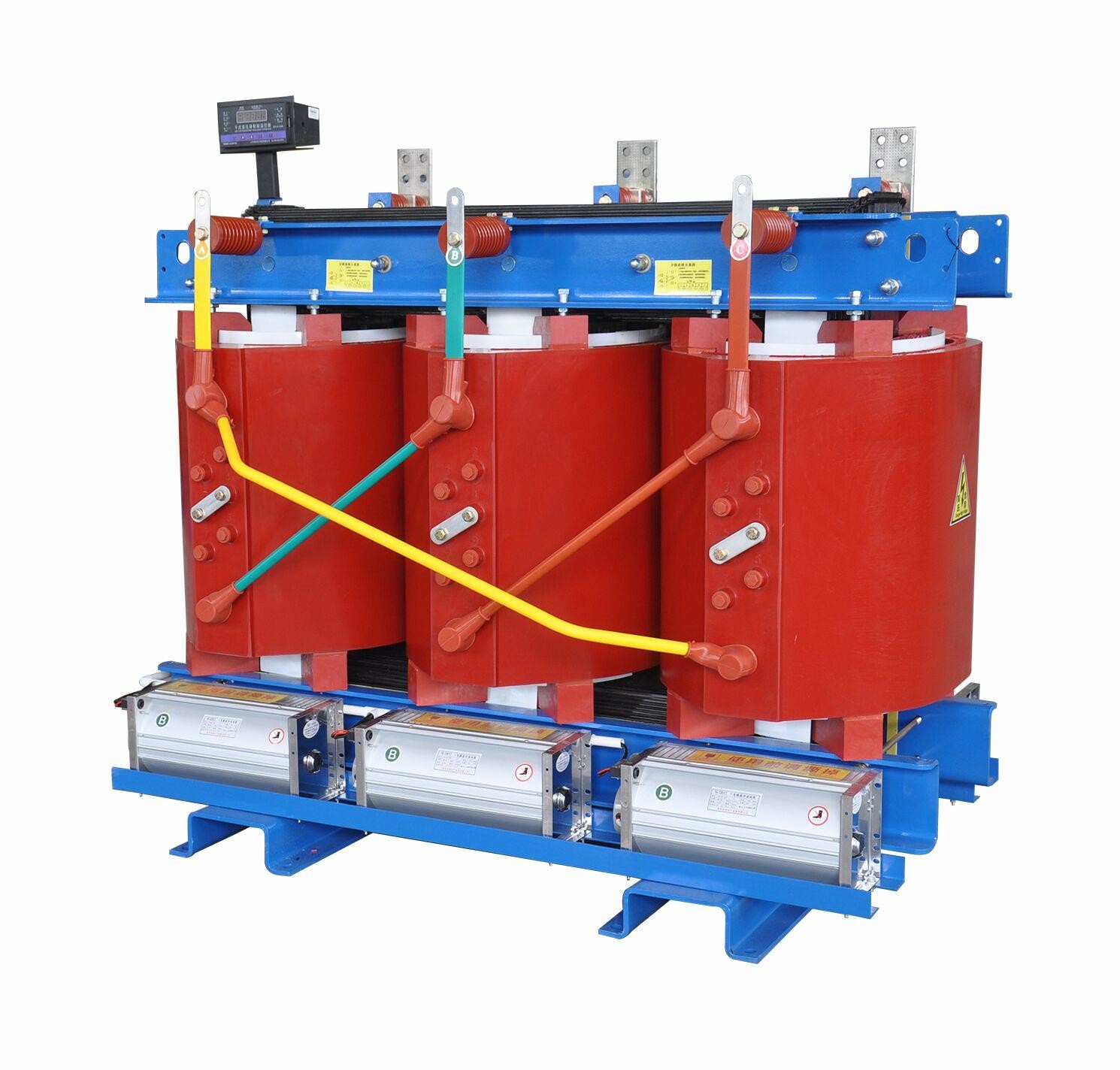

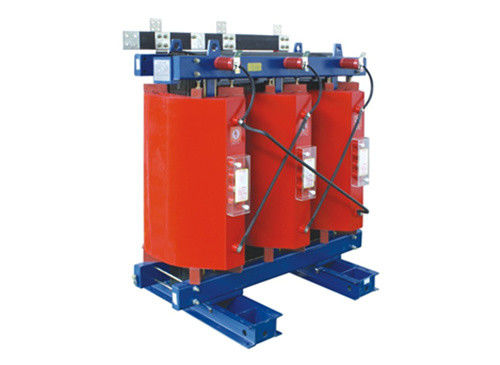

SCB Dry Type power distribution transformer
Product Overview:
1. SCB10 epoxy resin dry-type transformer has the advantages of low performance loss, good energy-saving effect, economical operation, maintenance free, advanced process structure, high short circuit resistance, lightning impulse level, flame-retardant, moisture-proof, dust-proof,
low noise, and can go deep into the load center. It is widely used in places with high fire protection requirements such as inflammable and explosive
2. The temperature display controller can be installed on the epoxy resin dry-type transformer to display and control the operation temperature of the transformer winding to ensure the normal service life of the transformer.

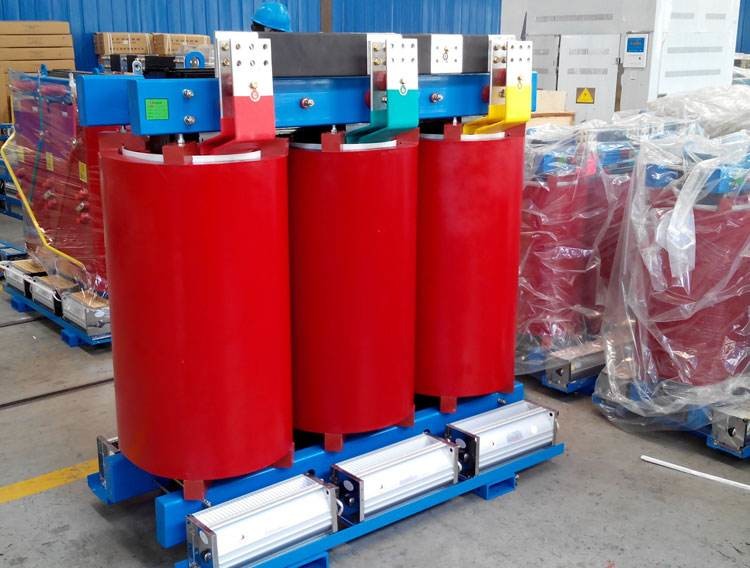

At the same time, intelligent computer interface is reserved to realize remote control. Epoxy resin dry-type transformer is equipped with low-noise amplitude flow fan, which can reduce winding temperature, improve load capacity and prolong transformer life after startup; when forced air cooling is adopted, rated capacity can be increased by 40-50%.
Functions & Features
1.Safe, fire-retardant, pollution-free, can be installed directly in the load center.
2.Maintenance-free, easy to install and integrated operation cost is low.
3.It has good moisture-proof performance and can operate normally under 100% humidity.
4.Low loss, low partial discharge, low noise, cooling ability, forced air cooling conditions can be 150% rated load operation.
5.It is equipped with perfect temperature protection control system to provide reliable guarantee for transformer safe operation.
6.Reliability is high. According to the operation research of the products that have been put into operation, the reliability index of the products has reached the international advancedlevel.
7.Low voltage winding is made of whole copper foil, together with turn insulation of Class F, on special low voltage foil winding machine. Foil coil can solve the problems of low voltage, short-circuit stress of high current coil winding products is high, ampere-turn imbalance, poor heat dissipation effect, spiral angle of winding, unstable quality of manual welding and so on.
At the same time, the winding end of our company is sealed with resin, solidified, moisture-proof and anti-fouling. Lead copper bars are welded automatically by argon arc welding.
8.The transformer adopts BWDK series signal thermometer. The temperature measuring element is embedded in the upper part of the low-voltage coil. It can automatically detect and display the working temperature of the phase coil, and has the functions of over-temperature alarm and trip.
Technical data
| Type |
Rated capacity (KVA) |
Connection groupgrade |
Voltagecombination(KV) |
Noloadloss (W) |
loadloss(W) DyYy |
No-load current(%) |
Short-circuit resistance(%) |
||
| HighvoltageTappingrang | eLowvoltage | ||||||||
| SC12-30 | 30 |
YynO . Dyn11 |
10 6.3 6 |
土5% +2x2.5% +x2.5% |
0.4 | 150 | 710 | 2.3 | 4.0 |
| SC12-50 | 50 | 215 | 1000 | 2.2 | |||||
| SC12-80 | 80 | 295 | 1380 | 1.7 | |||||
| SC12-100 | 100 | 320 | 1570 | 1.7 | |||||
| SC12-125 | 125 | 375 | 1850 | 1.5 | |||||
| SC(B)12-160 | 160 | 430 | 2130 | 1.5 | |||||
| SC(B)12-200 | 200 | 495 | 2530 | 1.3 | |||||
| SC(B)12-250 | 250 | 575 | 2760 | 1.3 | |||||
| SC(B)12-315 | 315 | 705 | 3470 | 1.1 | |||||
| SC(B)12--400 | 400 | 785 | 3990 | 1.1 | |||||
| SC(B)12-500 | 500 | 930 | 4880 | 1.1 | |||||
| SC(B)12-630 | 630 | 1070 | 5880 | 0.9 | |||||
| SC(B)12-630 | 630 | 1040 | 5960 | 0.9 | |||||
| SC(B)12-800 | 800 | 1215 | 6960 | 0.9 | |||||
| SC(B)12-1000 | 1000 | 1415 | 8130 | 0.9 | |||||
| SC(B)12-1250 | 1250 | 1670 | 9690 | 0.9 | |||||
| SC(B)12-1600 | 1600 | 1960 | 11730 | 0.9 | |||||
| SC(B)12-2000 | 2000 | 2440 | 14450 | 0.7 | |||||
| SC(B)12-2500 | 2500 | 2880 | 17170 | 0.7 | |||||
1.working condition
* Device types: indoor type
* Normal environment conditions of use: the elevation not more than 1000 m
* Environmental highest temperature + 40℃, minimum-25 ℃
* The special environment conditions of use: elevation of more than 1000 m
* Environmental highest temperature + 40 ℃, minimum-45 ℃. (when you order details)
* Mounting ambicnt: no corrosive gas, no obvious dirt environment
2.applicable standard
* IEC60076 power transformer
* IEC723 dry power transformer
* GB6450-1986 dry power transformer
* GB/R1094-1996 power transformer
* GB4208-1993 outer shell protect grade(IP code)
All products of the company have passed the national type test like CCC, CQC , CTQC and other
national mandatory product certification, and has a perfect quality, occupational health and
environmental management system certification system. Our products have passed ISO9001, 2000
and other international quality system certification.
None of the dry-type transformers we see today are installed in a separate, tightly enclosed room, as in
the oil-immersed type, but only in a relatively dry and clean room. In addition to this, it is also very convenient
to transport or carry, no matter what kind of transport vehicles, trains, cars or other non-motor vehicles can be,
but it is best to keep the car dry, clean and the product itself in good packaging. Practice has proved that really
good products will always be more and more marketable. As dry-type transformers have very good fire-proof
performance and are easy to install and maintain, they are also used more and more widely Especially in the
modern commercial downtown, residential areas, hospitals, airports, stations, subways, theaters, schools,
public places and other places with high requirements on fire protection.
