Detail Information
Material:	Aluminum Or Copper	Usage:	Single-phase Transformer, Rectifier Transformer, Combined Transformer, Power Transformer, Distribution Transformer
Capacity:	100.125.160.200.250.315.400.500.630.800.1000	HS Code:	85043190
Product Name:	Dry Type Transformer	Certificate:	CE,ISO,CQC,SABS,3C
High Light:	cast resin dry type transformer , dry cast resin transformers

Product Description

Dry type transformer

SCB Dry Type power distribution transformer

Product Description
THis product has the characteristic of anti-flaming,anti-explosion, damp-proof, dust proof. The adoption of integral casting coil structure makes it

high mechanical strength, small partial discharge capacity, High Reliability.

This product also has the advantages of safety, energy saving, environmental protection, and maintenance free. It can be installed in moist and dirty environment.

It is suitable for airport, station, wharf, the subway, power plant, substation, hospital, hotel,business center, sports venue, high-rise building, residential area and industrial and mining enterprise etc.

Function Characteristics:
●Flame retardant, non-pollution, it can be installed directly in the load center.
●Maintenance-free, easy to be installed, low operating costs.
●The enclosure can be of Good moisture resistance, transformer can be put into operation without pre-drying under 100% humidity in the normal operation.
●Low loss, light weight and small volume, low noise, good dissipation of heat, it can be 150% rated load operation under forced air cooling conditions.

Structural Characteristics:

Cast-foil Coil: Adopting the entire section of copper foil, together with the F-class turn insulation, low voltage winding is wound by the special low-voltage foil winding machine.

The foil coil resolves such understanding problems as large short-circuit stress, uneven ampere turn, poor heat dissipation, existing the winding spiral angle as well as unsteady manual welding quality due to low voltage and large current coil winding products.

At the same time, the winding end in our company is treated with resin potting, solidification to make shape, moisture-proof and anti-fouling, the lead copper platoon is automatically welded by argon arc welding.

Temperature Control Device: the transformer adopts BWDK series of signal thermometer. The temperature components, are embedded in the upper half of the low-voltage coil, can automatically detect and dynamically display the work humidity of phase coils and also have the functions of

over-temperature alarm and trip.

Technical data

Type	Rated capacity (KVA)	Connection groupgrade	Voltagecombination(KV)			Noloadloss (W)	loadloss(W) DyYy	No-load current(%)	Short-circuit resistance(%)
Type	Rated capacity (KVA)	Connection groupgrade	HighvoltageTappingrang		eLowvoltage	Noloadloss (W)	loadloss(W) DyYy	No-load current(%)	Short-circuit resistance(%)
SC12-30	30	YynO . Dyn11	10 6.3 6	土5% +2x2.5% +x2.5%	0.4	150	710	2.3	4.0
SC12-50	50					215	1000	2.2
SC12-80	80					295	1380	1.7
SC12-100	100					320	1570	1.7
SC12-125	125					375	1850	1.5
SC(B)12-160	160					430	2130	1.5
SC(B)12-200	200					495	2530	1.3
SC(B)12-250	250					575	2760	1.3
SC(B)12-315	315					705	3470	1.1
SC(B)12--400	400					785	3990	1.1
SC(B)12-500	500					930	4880	1.1
SC(B)12-630	630					1070	5880	0.9
SC(B)12-630	630					1040	5960	0.9
SC(B)12-800	800					1215	6960	0.9
SC(B)12-1000	1000					1415	8130	0.9
SC(B)12-1250	1250					1670	9690	0.9
SC(B)12-1600	1600					1960	11730	0.9
SC(B)12-2000	2000					2440	14450	0.7
SC(B)12-2500	2500					2880	17170	0.7

Points to note

1.working condition

* Device types: indoor type

* Normal environment conditions of use: the elevation not more than 1000 m

* Environmental highest temperature + 40℃, minimum-25 ℃

* The special environment conditions of use: elevation of more than 1000 m

* Environmental highest temperature + 40 ℃, minimum-45 ℃. (when you order details)

* Mounting ambicnt: no corrosive gas, no obvious dirt environment

2.applicable standard

* IEC60076 power transformer

* IEC723 dry power transformer

* GB6450-1986 dry power transformer

* GB/R1094-1996 power transformer

* GB4208-1993 outer shell protect grade(IP code)

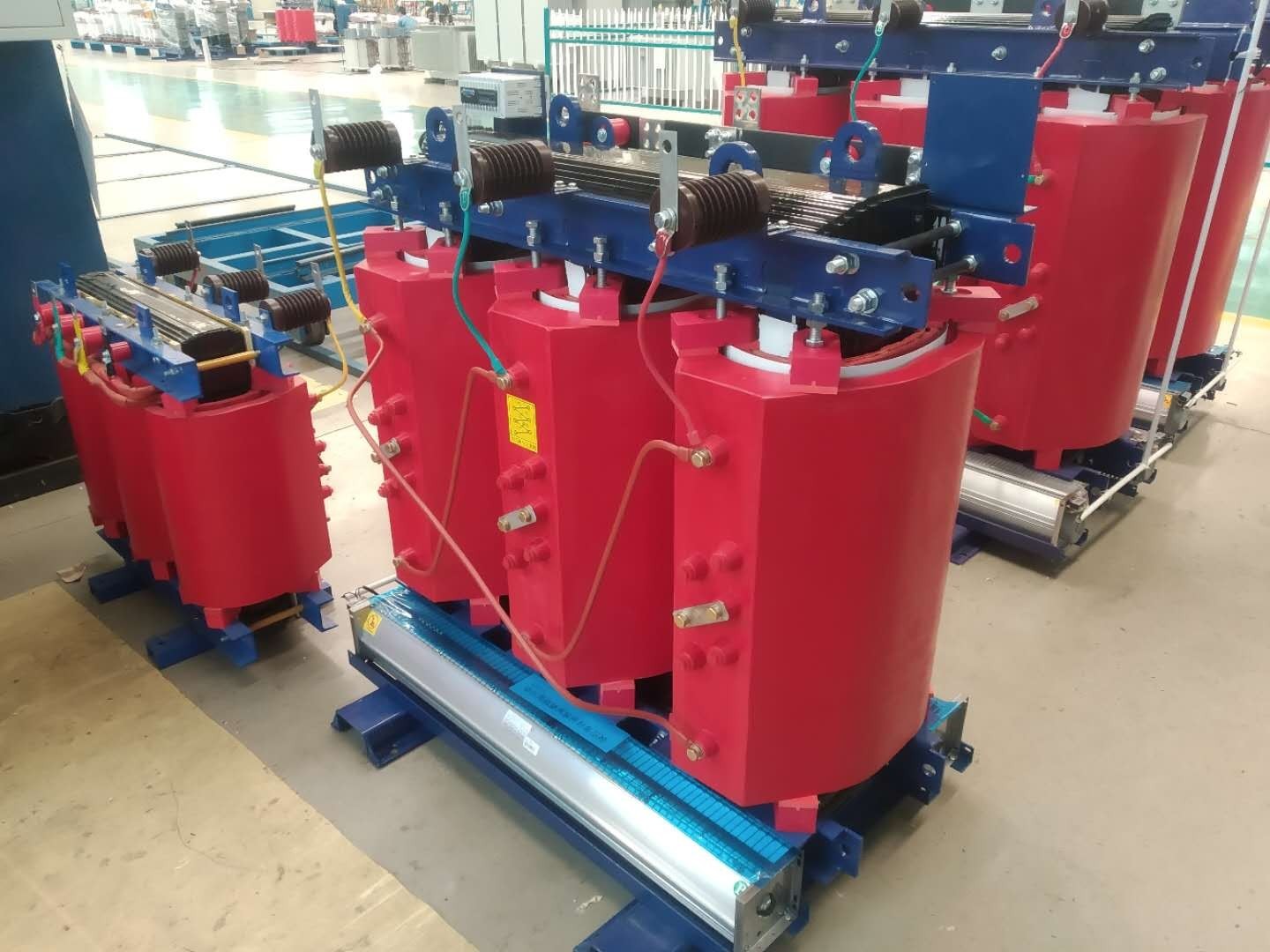

copper winding dry type 10kv 400kva cast resin power distribution transformer 1

Qualification Centre

All products of the company have passed the national type test like CCC, CQC , CTQC and other

national mandatory product certification, and has a perfect quality, occupational health and

environmental management system certification system. Our products have passed ISO9001, 2000

and other international quality system certification.

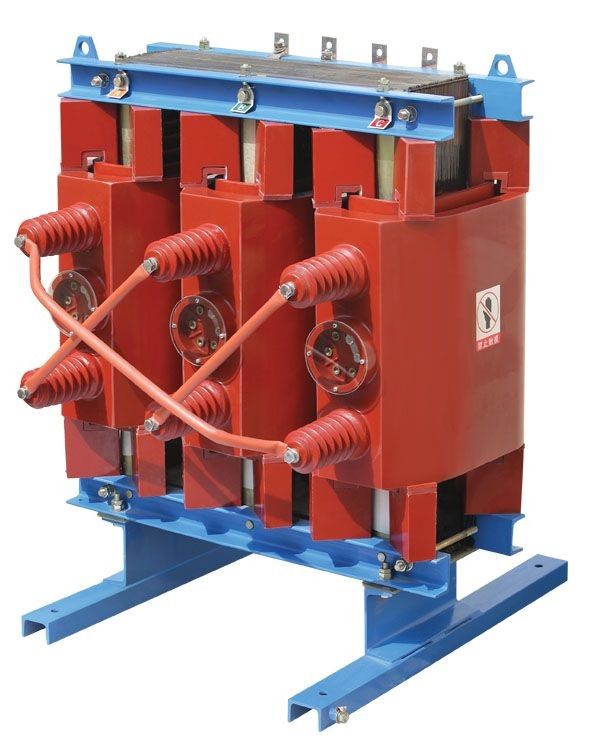

copper winding dry type 10kv 400kva cast resin power distribution transformer 2

SCOPE of application

_{None of the dry-type transformers we see today are installed in a separate, tightly enclosed room, as in}

_{the oil-immersed type, but only in a relatively dry and clean room. In addition to this, it is also very convenient}

_{to transport or carry, no matter what kind of transport vehicles, trains, cars or other non-motor vehicles can be,}

_{but it is best to keep the car dry, clean and the product itself in good packaging. Practice has proved that really}

_{good products will always be more and more marketable. As dry-type transformers have very good fire-proof}

_{performance and are easy to install and maintain, they are also used more and more widely Especially in the}

_{modern commercial downtown, residential areas, hospitals, airports, stations, subways, theaters, schools,}

_{public places and other places with high requirements on fire protection.}

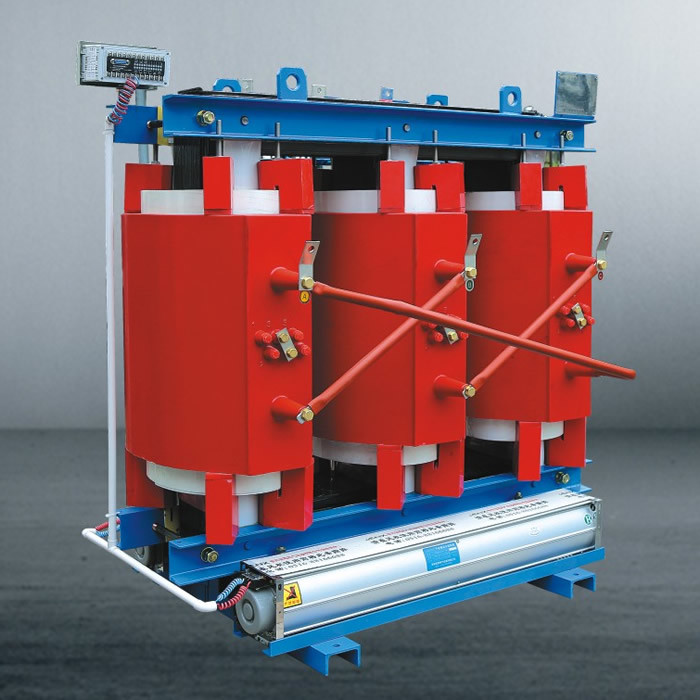

copper winding dry type 10kv 400kva cast resin power distribution transformer 3

copper winding dry type 10kv 400kva cast resin power distribution transformer 4

Tag:

Product Details:
Place of Origin:	China
Brand Name:	HENGFENGYOU
Certification:	ISO IEC CB COC KEMA SNI SABS CCC
Model Number:	SCBH15
Payment & Shipping Terms:
Minimum Order Quantity:	1
Price:	200-200000/piece
Packaging Details:	wooden case
Delivery Time:	15 DAYS
Payment Terms:	LC T/T
Supply Ability:	5000 pieces/year
