10kv 400v OLTC oil immersed electric Power Transformer from China factory supplier
10kv 400v OLTC oil immersed electric Power Transformer from China factory supplier 10kv 400v OLTC oil immersed electric Power Transformer from China factory supplier 10kv 400v OLTC oil immersed electric Power Transformer from China factory supplier

10kv 400v OLTC oil immersed electric Power Transformer from China factory

Product Details:
Place of Origin: China
Brand Name: HENGFENGYOU
Certification: ISO IEC CB COC KEMA SNI SABS CCC
Model Number: S11
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-200000/piece
Packaging Details: wooden case
Delivery Time: 15 DAYS
Payment Terms: LC T/T
Supply Ability: 5000 pieces/year
Contact Now

Detail Information
Usage: Power Product Name: Three Phase Oil Transformer
Frequency: 50Hz/60Hz Output Voltage: Customize
Color: Optional Application: Change Voltage
Place Of Origin: Qingdao,China

Product Description

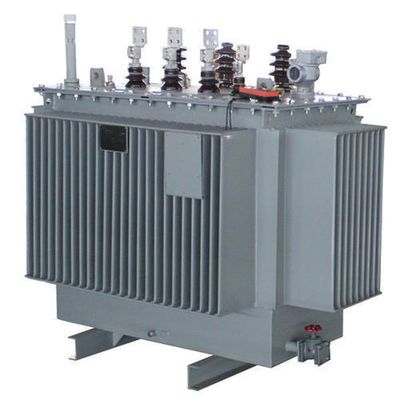

oil-immersed transformer S11,30-2500KVA,10KV series,3 phae/full sealed/double winding                              10kv 400v OLTC oil immersed electric Power Transformer from China factory 0

Product Description

S11 full-sealed oil-immersed power transformer developed by the company has the advantages of low loss,low noise and high efficiency and can achieve good energy-saving effect and reduce pollution.


Compared with common oil-immersed transformer ,it is unnecessary for full-sealed transformer to be equipped with oil conservator and change in oil volume is automatically adjusted and compensated by elasticity of corrugated sheet of corrugated tank , and transformer is isolated from air to prevent and slow down oil degrading and insulation aging, enhance operational reliability, with normal operation and no maintenance.



Features & Advantages



1. Product maintenance is simple.
2. The low voltage is wound by copper foil, so that the electric field of the transformer is evenly distributed. The low-voltage inner frame is formed by forming a hard paper tube, and the high-voltage outer half-layer is layered with a layer of glass adhesive tape. The compacting block is laminated wood. The mechanical strength of the transformer and the vacuum oil injection of the transformer can completely eliminate the air bubbles in the coil, thereby improving the overall resistance of the transformer to sudden short circuit.

3. The box is made of stainless steel bolts for a beautiful appearance.
4. The fuel tank adopts a fully sealed oil tank to isolate the transformer oil from the air, slow down the aging of the transformer oil, and the molded parts are molded parts to enhance the reliability of the transformer seal.





Application
This product is widely used in urban and rural power grid construction and renovation projects. This product is especially suitable for areas where there is insufficient power and load fluctuations and where daily maintenance is difficult. Because the transformer adopts a fully sealed structure to prevent the transformer oil from coming into contact with the air, it can operate in a humid environment and is an ideal power distribution equipment in urban and rural distribution networks





Technical data



MODEL
RATED CAPACITY(KVA)
CONNECTION SYMBOL
VOLTAGE COMBINATION(KV)
NO-LOAD LOSS(W)
LOAD LOSS (W)
NO-LOAD CURRENT(%)
SHORT CIRCUIT IMPENDENCE(%)
HV
TR
LV
S11-M-30
30
YYN0 ORDYN11
6
6.3
6.6
10
10.5
11
±5%
or
±2*2.5%
0.4
0.415
0.433
100
630/ 600
2.3
4.0
S11-M-50
50
130
910/ 870
2.0
4.0
S11-M-63
63
150
1090/1040
1.9
4.0
S11-M-80
80
180
1310/1250
1.9
4.0
S11-M-100
100
200
1580/1500
1.8
4.0
S11-M-125
125
240
1890/1800
1.7
4.0
S11-M-160
160
280
2310/2200
1.6
4.0
S11-M-200
200
340
2730/2600
1.5
4.0
S11-M-250
250
400
3200/3050
1.4
4.0
S11-M-315
315
480
3830/3650
1.4
4.0
S11-M-400
400
570
4520/4300
1.3
4.0
S11-M-500
500
680
5410/5100
1.2
4.0
S11-M-630
630
810
6200
1.1
4.5
S11-M-800
800
980
7500
1.0
4.5
S11-M-1000
1000
1150
10300
1.0
4.5
S11-M-1250
1250
1360
12800
0.9
4.5
S11-M-1600
1600
1640
14500
0.8
5.0
S11-M-2000
2000
2280
17820
0.6
5.0
S11-M-2500
2500
2700
20700
0.6
5.0
S11-M-3200
3200
3200
23400
0.6
5.0



Executive Standard:

GB1094 (Electrical Transformer)
IEC60076 (Electrical Transformer)
JB/T6451 (Specification and Technical Requirements for Oil-immersed Power Transformers)
JB/T10088 (6kV~500kV?Power Transformer Sound Level)
GB/T7595 (Quality of Transformer Oils in Service)



working  conditions

1. The maximum ambient air temperature shall not exceed 40 ℃, and the minimum shall not below - 25 ℃;

2. The altitude shall not exceed 1000m. If special customized transformers and low-voltage components are used, the altitude can reach 4000m;

3. The vertical inclination is no more than 5 °, and no violent vibration and impact;

4. The air humidity is not more than 90% (+ 25 ℃);

5. No gas and conductive dust that will seriously affect the insulation of transformer, no explosion hazard and corrosion of electrical components;

6. Outdoor wind speed shall not exceed 35m / s.

7. If service conditions beyond the above, specially customized product is available.



Workshop



                  10kv 400v OLTC oil immersed electric Power Transformer from China factory 1



OUR SERVICE:
1.quick response in before sales period help you got order.
2.excellent service in production time let you know each step we made.
3.reliable quality solve you after sale headache.
4.long period quality warranty ensure you can buy without hesitate.



About Our Company:

1. 25 years' manufacturing experience with three subsidiaries
2. Won tenders aboard
3. IEC 60076 & ISO certificate
4. OEM / ODM
5. Competitive price with 100% Cu winding
6. Production capacity: 10,000,000 kVA per year





If any interest , pls feel free to contact us:
