Oil Cooled Power Transformer 5000KVA 33KV / 11KV with OLTC On Load Tap Changer

Product Details:
Place of Origin: China
Brand Name: HENGFENGYOU
Certification: ISO IEC CB COC KEMA SNI SABS CCC
Model Number: S11
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-200000/piece
Packaging Details: wooden case
Delivery Time: 15 DAYS
Payment Terms: LC T/T
Supply Ability: 5000 pieces/year
Contact Now

Detail Information

Usage: Power Product Name: Three Phase Oil Transformer
Frequency: 50Hz/60Hz Output Voltage: Customize
Color: Optional Application: Change Voltage
Place Of Origin: Qingdao,China

Product Description

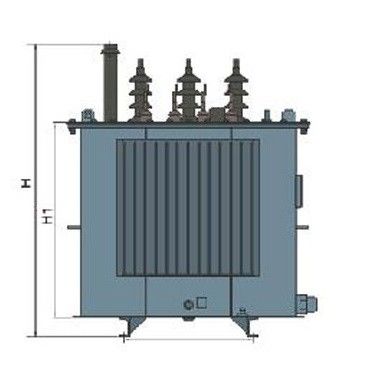

oil-immersed transformer S11,30-2500KVA,10KV series,3 phae/full sealed/double winding                              Oil Cooled Power Transformer 5000KVA 33KV / 11KV with OLTC On Load Tap Changer 0

Hengfengyou covers a wide range of Oil Filled Power Transformers with On Load Tap Changer (up to 2500 KVA in 11 KV & 33 KV Class) conforming to the international standards of quality and safety. These transformers are designed and developed using latest technologies and can be provided with a variety of terminations so as to suit the requirements for new installation or replacement.

Optimum efficiency is ensured by delicate proportioning of core and winding looses Electrolytic Grade pure copper, with Transposition in L.V. coil for current sharing in parallel Conductors, Electric grade press paper, boards and mineral oil. Thus better regulation is achieved resulting in longer life. Careful designing also reduces noise level to the minimum.

Standard Fittings

Rating & Diagram plate-Earthing terminals
Lifting lugs- Thermometer pocket
Oil Conservator with drain plug-Air release hole with plug
Oil Level indicator-Explosion vent with diaphragm
Top-filter Valve-Inspection cover.
Silica gel breather-Drain –cum-bottom-filter valve
Cooling radiators-Uni / Bi- directional rollers

Optional Features

Buchholz relay with alarm and trip contact-Magnetic oil level gauge with alarm contact
Pressure Release Valve-Marshalling box to house O.T.I. and W.T.I
Cable Box on H.T. Side-Cable Box on L.T. Side.
Oil Temp. Indicator with alarm & trip contact-RTCC (Remote Tap Changer Control) Cubicle
Winding Temp. indicator with alarm & trip contact-Electronic Automatic Voltage Controller



High-quality material

a. The three- phase oil-immersed Power Transformer applies new type insulating structure.
b. The iron core is made of high-quality cold-rolled silicon-steel plate 27ZH10.
c. All fasteners have been processed with special trearment to prevent them from loosening.



Oxygen-free copper lines of lower resistivity, which will become smoother and burr-free after series of additional surface treatment, so the load loss of our transformer is lower and the electric performance is better.
High-quality silicon-steel plates which are of lower unit loss, and the no-load of the transformers is lower.
High-quality wooden laminating insulation pieces, which won’t split or move even under the influence of short circuit.
Thoroughly filtrated transformer oil containing less water, gas and impurities, which makes our transformers work better.
High-quality rubber sealing material, which can prevent the transformers form aging or leakage.





Technical data



MODEL
RATED CAPACITY(KVA)
CONNECTION SYMBOL
VOLTAGE COMBINATION(KV)
NO-LOAD LOSS(W)
LOAD LOSS (W)
NO-LOAD CURRENT(%)
SHORT CIRCUIT IMPENDENCE(%)
HV
TR
LV
S11-M-30
30
YYN0 ORDYN11
6
6.3
6.6
10
10.5
11
±5%
or
±2*2.5%
0.4
0.415
0.433
100
630/ 600
2.3
4.0
S11-M-50
50
130
910/ 870
2.0
4.0
S11-M-63
63
150
1090/1040
1.9
4.0
S11-M-80
80
180
1310/1250
1.9
4.0
S11-M-100
100
200
1580/1500
1.8
4.0
S11-M-125
125
240
1890/1800
1.7
4.0
S11-M-160
160
280
2310/2200
1.6
4.0
S11-M-200
200
340
2730/2600
1.5
4.0
S11-M-250
250
400
3200/3050
1.4
4.0
S11-M-315
315
480
3830/3650
1.4
4.0
S11-M-400
400
570
4520/4300
1.3
4.0
S11-M-500
500
680
5410/5100
1.2
4.0
S11-M-630
630
810
6200
1.1
4.5
S11-M-800
800
980
7500
1.0
4.5
S11-M-1000
1000
1150
10300
1.0
4.5
S11-M-1250
1250
1360
12800
0.9
4.5
S11-M-1600
1600
1640
14500
0.8
5.0
S11-M-2000
2000
2280
17820
0.6
5.0
S11-M-2500
2500
2700
20700
0.6
5.0
S11-M-3200
3200
3200
23400
0.6
5.0



·Service conditions

1. The maximum ambient air temperature shall not exceed 40 ℃, and the minimum shall not below - 25 ℃;

2. The altitude shall not exceed 1000m. If special customized transformers and low-voltage components are used, the altitude can reach 4000m;

3. The vertical inclination is no more than 5 °, and no violent vibration and impact;

4. The air humidity is not more than 90% (+ 25 ℃);

5. No gas and conductive dust that will seriously affect the insulation of transformer, no explosion hazard and corrosion of electrical components;

6. Outdoor wind speed shall not exceed 35m / s.

7. If service conditions beyond the above, specially customized product is available.



Workshop

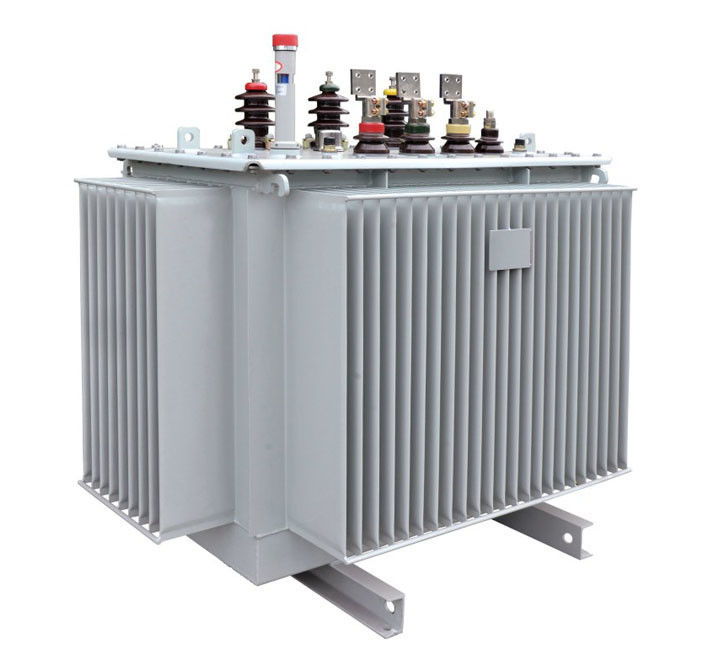

                  Oil Cooled Power Transformer 5000KVA 33KV / 11KV with OLTC On Load Tap Changer 1



About Our Company:

1. 25 years' manufacturing experience with three subsidiaries
2. Won tenders aboard
3. IEC 60076 & ISO certificate
4. OEM / ODM
5. Competitive price with 100% Cu winding
6. Production capacity: 10,000,000 kVA per year





If any interest , pls feel free to contact us:

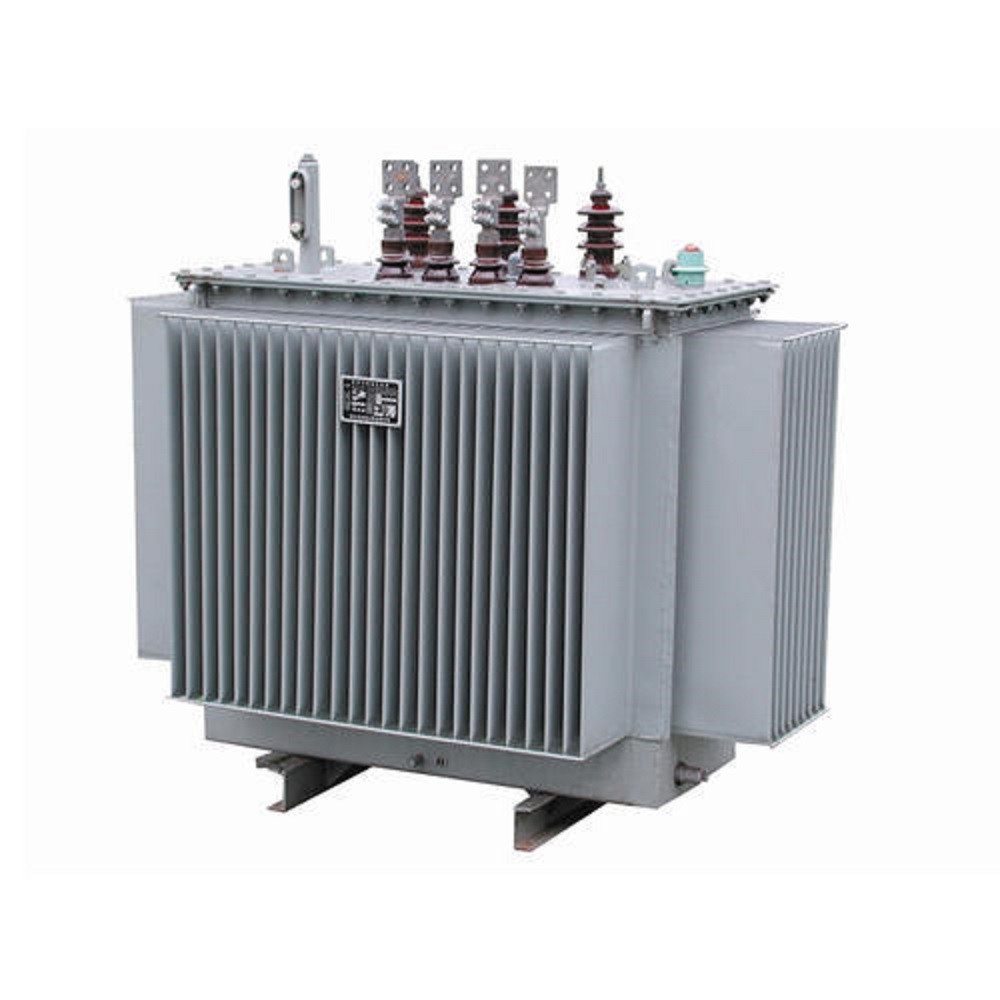

Oil Cooled Power Transformer 5000KVA 33KV / 11KV with OLTC On Load Tap Changer 2
