Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | HENGFENGYOU |
Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
Model Number: | SCB12 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 |
Price: | 200-200000/piece |
Packaging Details: | wood pack |
Delivery Time: | 15 DAYS |
Payment Terms: | LC T/T |
Supply Ability: | 5000 pieces/year |
Detail Information |
|||
Usage: | Power Electronic Distribution Transformer | Coil Number: | Double Winding |
---|---|---|---|
Phase: | Three/ Single | Rated Capacity: | 30-3000kva,2500kVA |
Product Name: | 3 Phase Dry Type Electrical Transformer 300kva | Material: | EXPOY RESIN,Copper Or Aluminum |
Efficiency: | High Efficiency | ||
High Light: | cast resin dry type transformer,dry cast resin transformers |
Product Description

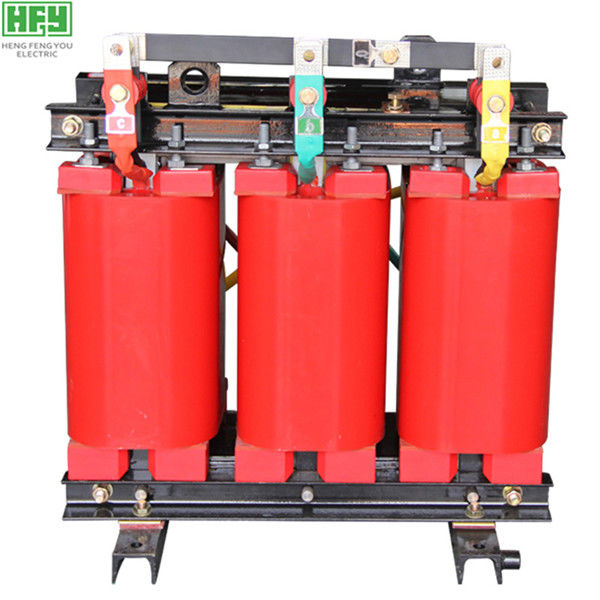

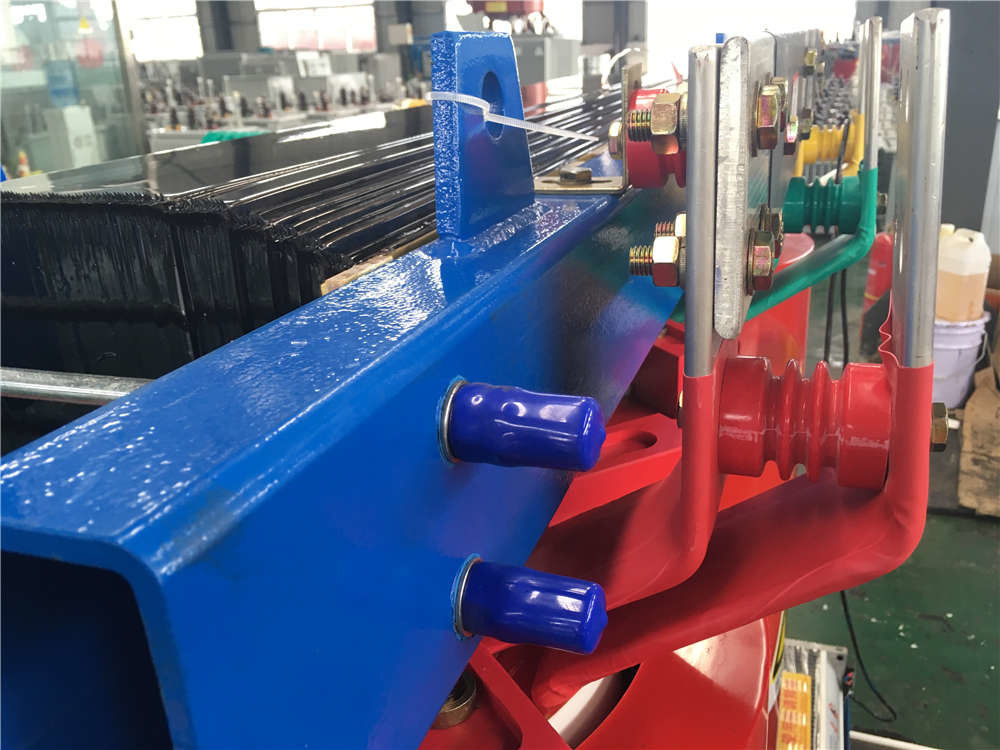

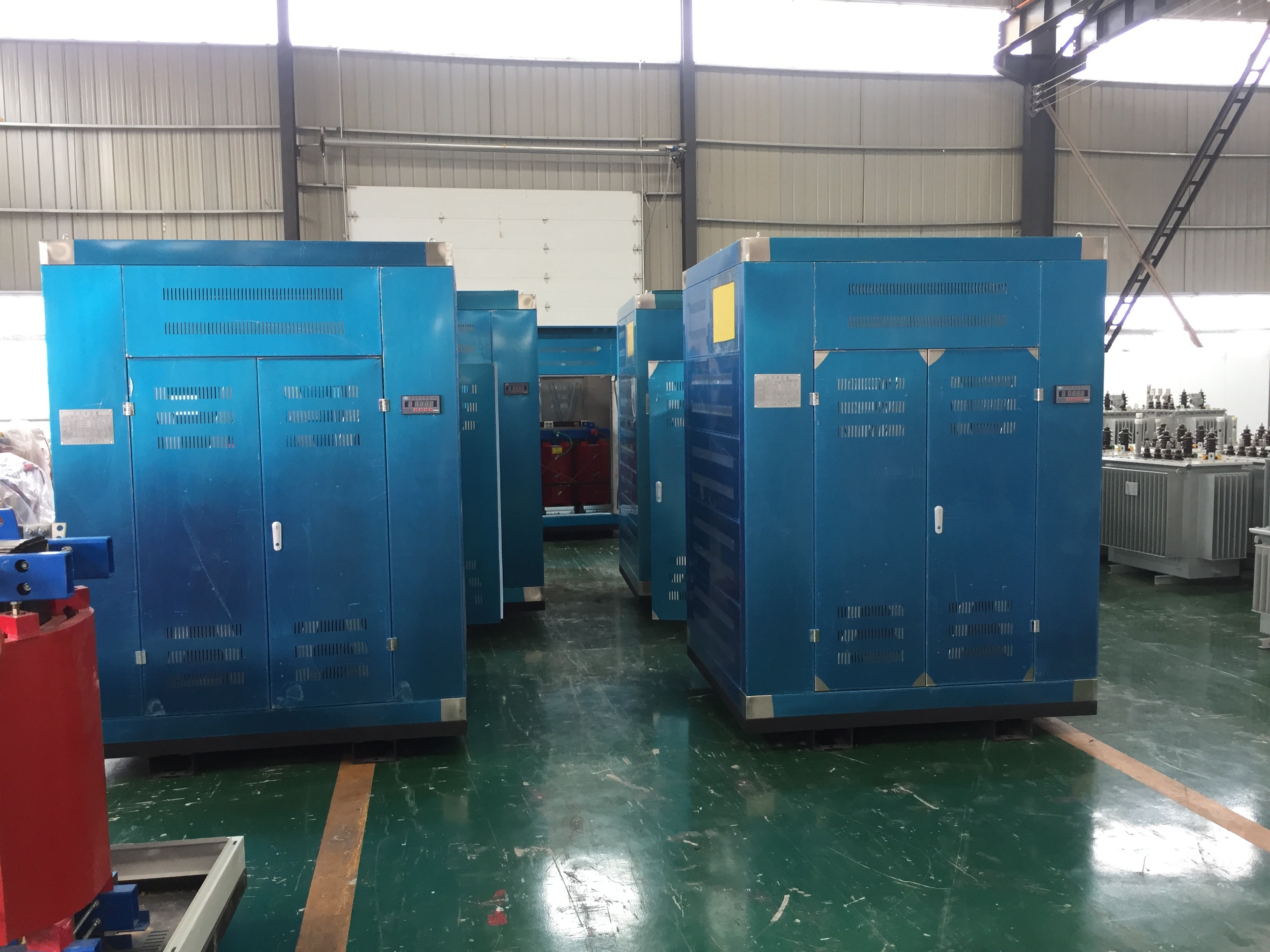

SC(B)10 Epoxy Resin Power Dry Type Transformer 30-2500 Kva Cast Distribution Electrical Transformers 35kv/400v
Product Characteristics:
Dry-type transformers are widely used in local lighting, high-rise buildings, airports, docks CNC machinery and other places, simply that dry-type transformers refers to the core and the winding is not immersed in the insulating oil transformer.
We can make Epoxy Resin Cast Dry-Type Transformer , SC(B)10,SC(B)11-30~2500/10 Series of Epoxy Resin Cast Dry-Type Distribution Transformer , SC(B)10-30~2500/35 Series of Epoxy Resin Cast Dry-Type Distribution Transformer , SC(B)10-30~2500/35 Series of Epoxy Resin Cast Dry-Type Distribution Transformer , SC(B)H15-100~2500/10 Series of Amorphous Alloy Resin Casting Dry-type Transformer , SC(B)10-30~2500/20(10) (Achieving voltage change between 20kV and 10kV) Series of Epoxy Resin Cast Dry-type Distribution Transformer , CKSC Series of Dry-Type Iron Core Reactor , S11-M-30~2500/10 Series of Fully Sealed Oil-immersed Distribution Transformer , S13-M·RL-30~1600/10 Series of Three-dimensional Coil Core Oil-immersed Transformer , S(B)H15-M-30~1600/10 Series of Amorphous Metal Distribution Transformer , s(z)11-630~31500/35 Series of On-load Regulation Oil-immersed Transformer , Phase-shifting rectifier transformer...
performance:
Solid insulated winding
Not wound on the winding
Winding two windings, the voltage is the higher voltage winding, the lower is the low voltage winding
From the relative position of the high and low voltage windings, the high voltage can be divided into concentric overlapping types.
This series of dry-type transformers is used to directly reduce the 35KV grid power supply to 400v power distribution power supply, to supply power to users, reduce 10KV power transmission and transformation links, and significantly reduce operating costs.
Structural features:
1. Small size, light weight, small footprint, low installation costs.
2. Advanced technology, high mechanical strength, good thermal and thermal stability, high reliability and long service life;
3. Low-loss, low noise, energy-saving effect is obvious, maintenance-free;
4 thermal performance, overload capacity, forced air cooling can increase capacity operation;
5. Moisture-proof performance, to adapt to high humidity and other harsh environments;
6. Dry-type transformers can be equipped with perfect temperature detection and protection system. Intelligent temperature control system can automatically detect and tour the three-phase winding show the respective operating temperature can be automatically activated, stop fan, and alarm, tripping and other functions set;
7. Fireproof, non-polluting, safety guarantee, can be directly operated in the load center;
Working environment:
1.0 - 40 (℃), relative humidity <70%;
2. Altitude: not more than 2500 meters;
3. Avoid being exposed to rain, moisture, heat, heat or direct sunshine. The cooling vents and the surrounding objects should have a distance of not less than 40cm;
4 to prevent work in corrosive liquids, or gas, dust, conductive fibers or metal debris more places;
5 to prevent work in vibration or electromagnetic interference sites;
6. Avoid long-term inverted storage and transport, can not be strong impact.
Features:
Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.
Model |
SCB10-500/10 |
Capacity |
500 KVA |
Primary Voltage |
10KV , 11KV |
Secondary Voltage |
0.4 KV |
Rated current(H.V.) |
28.87A |
Rated current (L.V.) |
721.7 A |
Vector Group |
DYN11 |
Insulation & Heatproof Class |
F |
Max.temperature rising |
100K |
Short-circuit impedance |
4.10 % |
phase |
3 |
Frequency |
50Hz |
Cooling Method |
AN / AF |
Net Weight |
1810Kgs |
35KV dry type power transformer with off-load tap changer |
|||||||||
Rated capacity (KVA) |
Rated Voltage(KV) |
Coupling group |
|
Loss(W) |
No-load current(%) |
Noise (B) |
|||
HV |
Tap change |
LV |
Impedance voltage(%) |
N0-load |
Load |
|
|
||
800 |
35 or 38.5 |
±5% or ±2×2.5% |
3.15,6 ,6.3,10 10.5 or 11 |
Yyn0 Dyn11 |
6 |
2220 |
8180 |
0.6 |
50 |
1000 |
2640 |
9480 |
52 |
||||||
1250 |
3090 |
11210 |
|||||||
1600 |
3640 |
13440 |
0.5 |
53 |
|||||
2000 |
7 |
4180 |
15830 |
54 |
|||||
2500 |
4800 |
18970 |
56 |
||||||
3150 |
8 |
5960 |
21280 |
0.4 |
|||||
4000 |
6930 |
25570 |
55 |
||||||
5000 |
8270 |
30350 |
58 |
||||||
6300 |
9780 |
35460 |
0.3 |
||||||
8000 |
9 |
11200 |
40000 |
||||||
10000 |
12800 |
48250 |
|||||||
12500 |
15560 |
56080 |
0.2 |
60 |
|||||
16000 |
19110 |
65980 |
61 |
||||||
20000 |
10 |
22670 |
74230 |
62 |
·Order instructions:
1. The customer needs provide main parameters of the transformer (input and output voltage, capacity, loss, etc.)
2. Other customer requirements
