|Place of Origin:||China|
|Certification:||IEC CB COC KEMA SNI SABS CCC|
Payment & Shipping Terms:
|Minimum Order Quantity:||1|
|Packaging Details:||wooden case|
|Delivery Time:||15 days|
|Payment Terms:||LC T/T|
|Supply Ability:||20000 pieces/year|
|Model Number:||ZW20-12/630A||Poles Number:||3|
|Mechanical Life:||10000 Times||Rated Current:||630A|
Distribution Equipment of High Voltage Vacuum Circuit Breaker
1, Product description

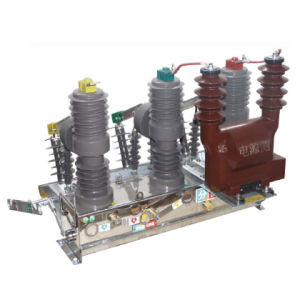

ZW20-12 model outdoor AC vacuum circuit breaker is used to make and break load
current, overload current and short-circuit current in 12kV, 50/60Hz power system.
It's applicable for substations, industry and mining, urban and rural electricity power
networks, especially applicable in occasions with frequent operation and automatic
power distibution network. It accords with the standards of IEC62271-100 &GB1984
AC high voltage circuit breaker, GB/T 11022 HV General technical requirement of
switches and control apparatus.
with frequent operations.
2, Optional equipments
1. Current transformer, metering pole 3 pieces 200/5 or higher.
2. Outer voltage transformer 2 pierces (for control power supply and metering).
3. Motor spring mechanism AC/DC220/1 10/48/24V.
4. Reclosing controller and series FTU and RTU.
3, Specification list:
5, Product characteristics
1. Ideal apparatus in urban and rural electricity network reform : Remote function:remote
control, remote metering, remote communication and remote adjustment.
2. Flexible operating: Both power storage and CO operation are motor and manual operated,
remote and local operation are both available.
3. Excellent breaking capability: Break short-circuit current 25kA up to 30 times.
4. Small operation power and high dependability: The small motor-driving spring operation
mechanism with new design is of lowest operation power (about 30W).
5. Multiple nstallations: Pole mounted and pad mounted.
6. Reliable sealing: The mature sealing technology assures reliable sealing performance
7. Particular incoming and outgoing method: Silicon rubber bushing to make enough insulate distance.
8. Safe operation: Anti-explosive device mounted on the top of box prevents heated gas and maters from
spattering out when inner fault occurs.
Qingdao Hengfengyou Electrical Engineering Co. , Ltd. is one of the large-scale electric complete
sets of manufacturers in China, specializing in oil-immersed transformers, dry-type transformers,
high-voltage Cabinets, low-voltage cabinets and substation manufacturing specialized electrical
enterprises. The company is located in the beautiful coastal city of china-qingdao. The company
has a registered capital of 10 million yuan, 20 senior technical personnel, more than 500 employees,
and a sound sales and service system, annual output value of US $1 billion, the products sell well
at home and abroad.
