Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | HENGFENGYOU |
Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
Model Number: | SCB10 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 |
Price: | 200-200000/piece |
Packaging Details: | wooden case |
Delivery Time: | 15 DAYS |
Payment Terms: | LC T/T |
Supply Ability: | 5000 pieces/year |
Detail Information |
|||
Rated L. V: | 0.4kv Or Customized | Capacity: | 50~2500kVA Or Customized |
---|---|---|---|
Product Type: | Dry Type | Winding: | Cooper Winding |
Enclosure: | IP20/IP23 | Reference Standards: | IEC60076 |
Rated H. V.: | 35kv Or Customized | Core Material: | Silicon Lamination/Amorphous Alloys |
High Light: | cast resin dry type transformer,dry cast resin transformers |
Product Description
Energy Saving Amorphous Alloy Dry Type Transformer

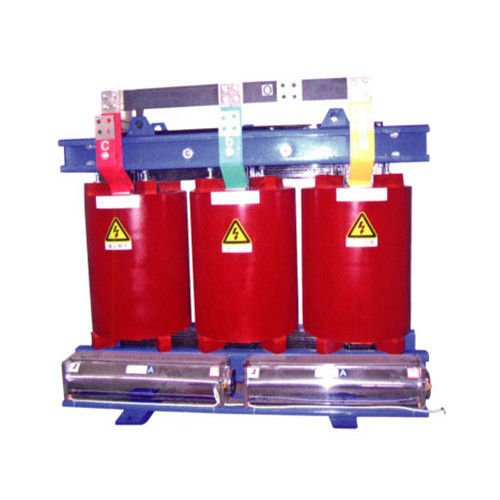

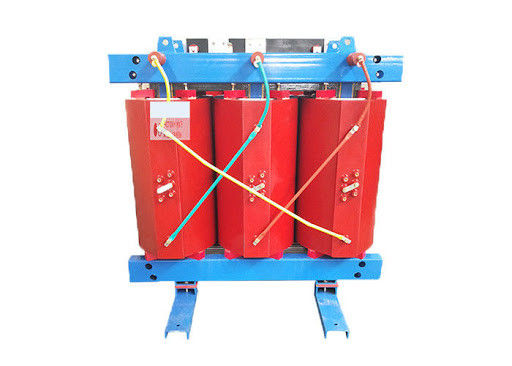

10KV 10~2500KVA Cast resin Dry Type distribution transformer
S11-M series hermetically sealed oil immersed power transformer has the advantage of low loss, low noise and high efficiency, which can obtain good energy saving effect and reduce pollution.Compared with ordinary oil immersed transformer, hermetically sealed transformers don 't need oil coservator, oil volume is automatically regulated and compensated by elastic corrugated sheet of corrugated tank.Transformer oil is kept out of air, which can effectively prevet deterioration and insulation aging of oil, ad enhance operation reliability.
Producture structure
2 parts: The front is high and low voltage chamber with high and low voltage luminal, load switch, no-loading switch handle, insert type fuse, pressure relief value, oil temperature meter, oil level gauge, oil drain value and so on in the separating chamber. The rear is oil tank and radiation fins. The oil tank contains transformer winding, iron core, high voltage load switch, no-loading switch and protection fuse. The tank is a fully-sealed structure.
Transformer normal service conditions
The height above the sea level is below 1000m;
Highest air temperature +40ºC;
Highest daily average air temperature+30ºC;
Highest annual average air temperature +20ºC;
Lowest outdoor air temperature -25ºC.
Chracteristics
1. Thin resin structure that never cracks
2. Epoxy resin vacuum pressure casting process
3. Iron core model simulation analysis
TECHNICAL INDEX
RATED CAPACITY | VOLTAGE COMBINATION | CONNECTION GROUP | LOSS (KW) | NO-LOAD CURRENT | SHORT-CIRCUIT IMPEDANCE | WEIGHT(KG) | ||||||
(KVA) | HV(KV) | HIGH-VOLTAGE TAPPING RANGE | LV (KV) | SYMBOL | NO-LOAD | ON-LOAD | (%) | (%) | OIL WEIGHT | GROSS WEIGHT | ||
30 | 6 6.3 10 10.5 11 |
5% | 0.4 | Dyn11 Yzn11 Yyn0 |
0.13 | 0.63/0.60 | 2.3 | 4 | 75 | 295 | ||
50 | 0.17 | 0.91/0.87 | 2 | 88 | 395 | |||||||
63 | 0.2 | 1.09/1.04 | 1.9 | 95 | 420 | |||||||
80 | 0.25 | 1.31/1.25 | 1.9 | 103 | 480 | |||||||
100 | 0.29 | 1.58/1.50 | 1.8 | 115 | 540 | |||||||
125 | 0.34 | 1.89/1.80 | 1.7 | 130 | 645 | |||||||
160 | 0.4 | 2.31/2.20 | 1.6 | 145 | 740 | |||||||
200 | 0.48 | 2.73/2.60 | 1.5 | 175 | 885 | |||||||
250 | 0.56 | 3.20/3.05 | 1.4 | 195 | 1010 | |||||||
315 | 0.67 | 3.83/3.65 | 1.4 | 230 | 1205 | |||||||
400 | 0.8 | 4.52/4.30 | 1.3 | 255 | 1375 | |||||||
500 | 0.96 | 5.41/5.15 | 1.2 | 285 | 1620 | |||||||
630 | Dyn11 Yyn0 |
1.2 | 6.2 | 1.1 | 4.5 | 350 | 1960 | |||||
800 | 1.4 | 7.5 | 1 | 405 | 2310 | |||||||
1000 | 1.7 | 10.3 | 1 | 490 | 2690 | |||||||
1250 | 1.95 | 12 | 0.9 | 550 | 3315 | |||||||
1600 | 2.4 | 14.5 | 0.8 | 625 | 3985 |
Our workshop:
OUR SERVICE:
1.quick response in before sales period help you got order.
2.excellent service in production time let you know each step we made.
3.reliable quality solve you after sale headache.
4.long period quality warranty ensure you can buy without hesitate.
