Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HENGFENGYOU |
| Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
| Model Number: | SCB10 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | 200-200000/piece |
| Packaging Details: | wooden case |
| Delivery Time: | 15 DAYS |
| Payment Terms: | LC T/T |
| Supply Ability: | 5000 pieces/year |
|
Detail Information |
|||
| Rated L. V: | 0.4kv Or Customized | Capacity: | 50~2500kVA Or Customized |
|---|---|---|---|
| Product Type: | Dry Type | Winding: | Cooper Winding |
| Enclosure: | IP20/IP23 | Reference Standards: | IEC60076 |
| Rated H. V.: | 35kv Or Customized | Core Material: | Silicon Lamination/Amorphous Alloys |
| High Light: | cast resin dry type transformer,dry cast resin transformers |
||
Product Description

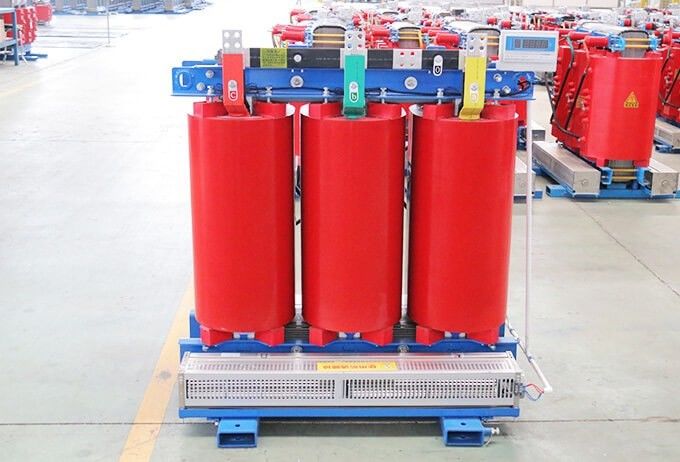

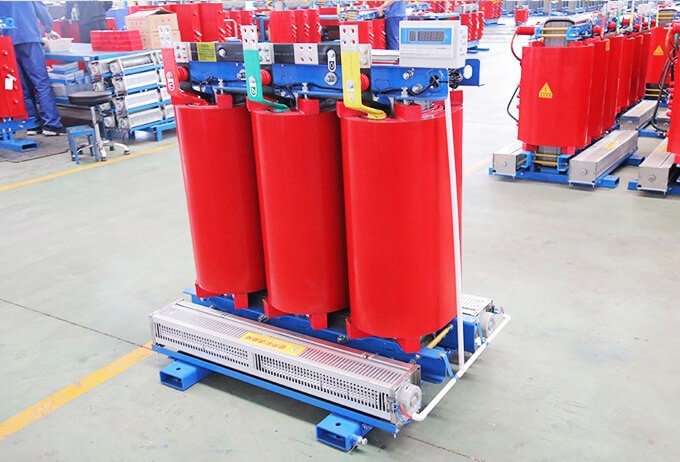

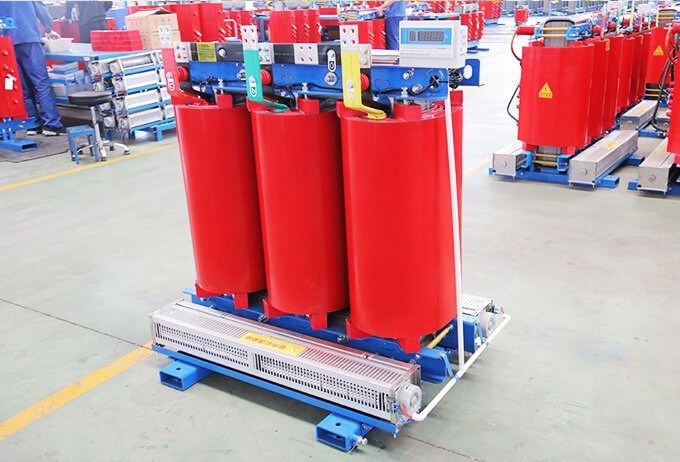

Our SC(B) series epoxy resin cast dry transformer is cast under vacuum with thin insulating bands automatically. The core is made of high permeable grain orientated silicon sheet and cast with imported epoxy resin. Thanks to advanced technology, quality raw materials, scientific management , and perfect inspection means , our products have the following features.
The coil is reinforced with glass fiber and cast under vacuum with filler epoxy resin. It has good mechanical properties, is free of crack and inner bubble and has low local discharge , high reliability, and long service life.
The high and low voltage systems are cast under vacuum, thus the coil will not absorb moisture. The clamps of core are subjected to corrosion-resistant treatment. The insulating materials in the coil such as glass fiber are self extinguishing and they will not cause fire by the arc resulted from a short circuit. The resin will not generate toxic or harmful gas under high temperature.
Service condition:
| Rated capacity(kVA) |
H.V. winding (kV) |
Tapping range of high voltage (%) |
L.V. winding (kV)
|
Vector Group | No-load loss (kW) |
Load loss (kW) | No-load current (%) |
short circuit impedance (%) |
| 30 50 80 100 125 160 200 250 315 400 500 630 630 800 1000 1250 1600 2000 2500 |
6 6.6 6.6 10 10.5 11 |
±2x2.5% |
0.4 |
Dyn11 |
0.17 0.24 0.33 0.36 0.42 0.49 0.56 0.65 0.79 0.88 1.05 1.21 1.17 1.37 1.59 1.88 2.21 2.75 3.24 |
0.71 1.00 1.38 1.57 1.85 2.13 2.53 2.76 3.47 3.99 4.88 5.88 5.96 6.96 8.13 9.69 11.73 14.45 17.17 |
2.6 2.2 2.2 2 1.8 1.8 1.6 1.6 1.4 1.4 1.4 1.2 1.2 1.2 1.1 1.1 1.1 1.0 1.0 |
4 4 4 4 4 4 4 4 4 4 4 4 6 6 6 6 6 6 6 |
Our workshop:
OUR SERVICE:
1.quick response in before sales period help you got order.
2.excellent service in production time let you know each step we made.
3.reliable quality solve you after sale headache.
4.long period quality warranty ensure you can buy without hesitate.
