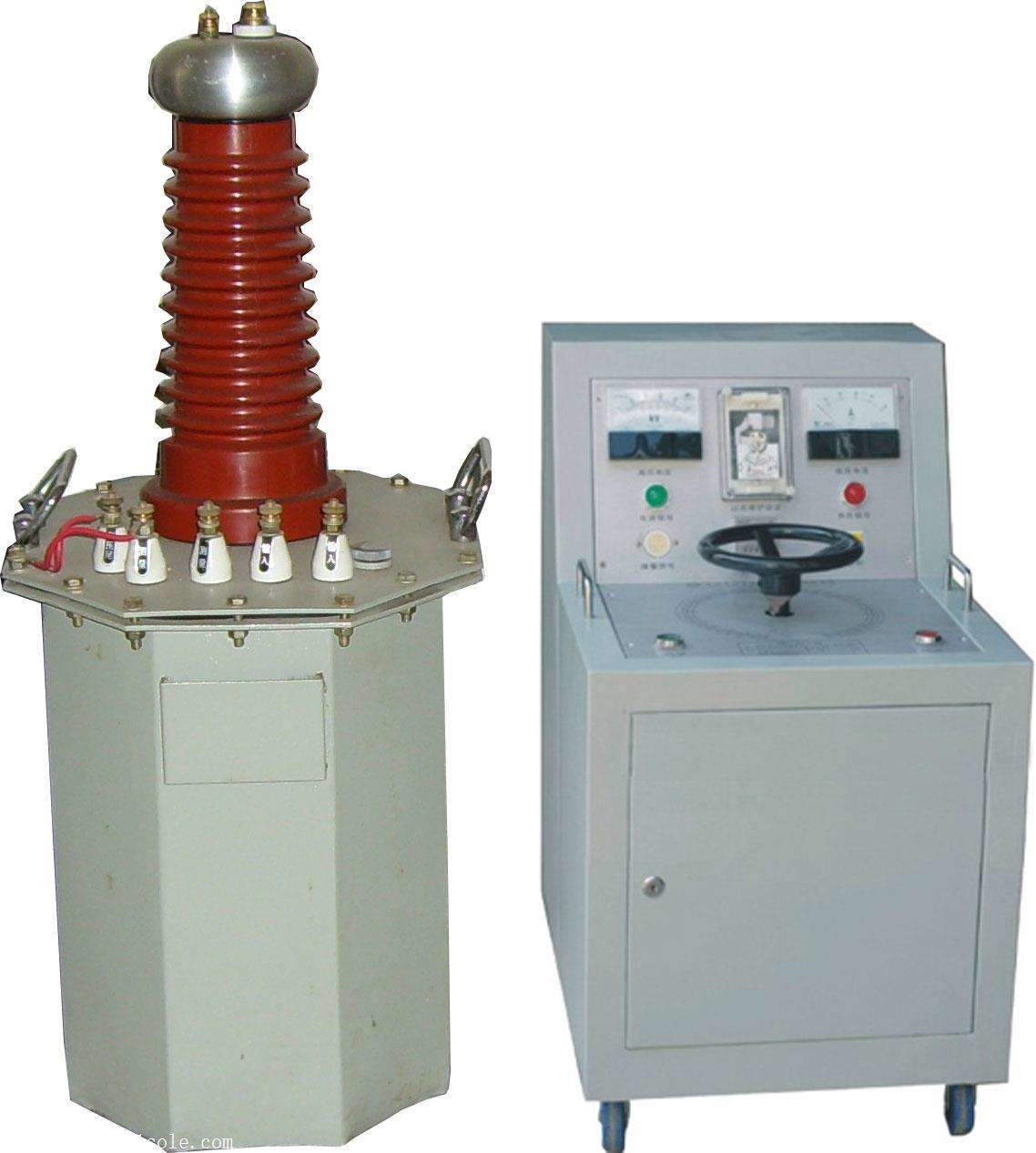

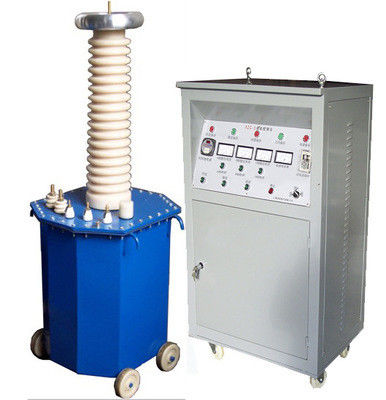

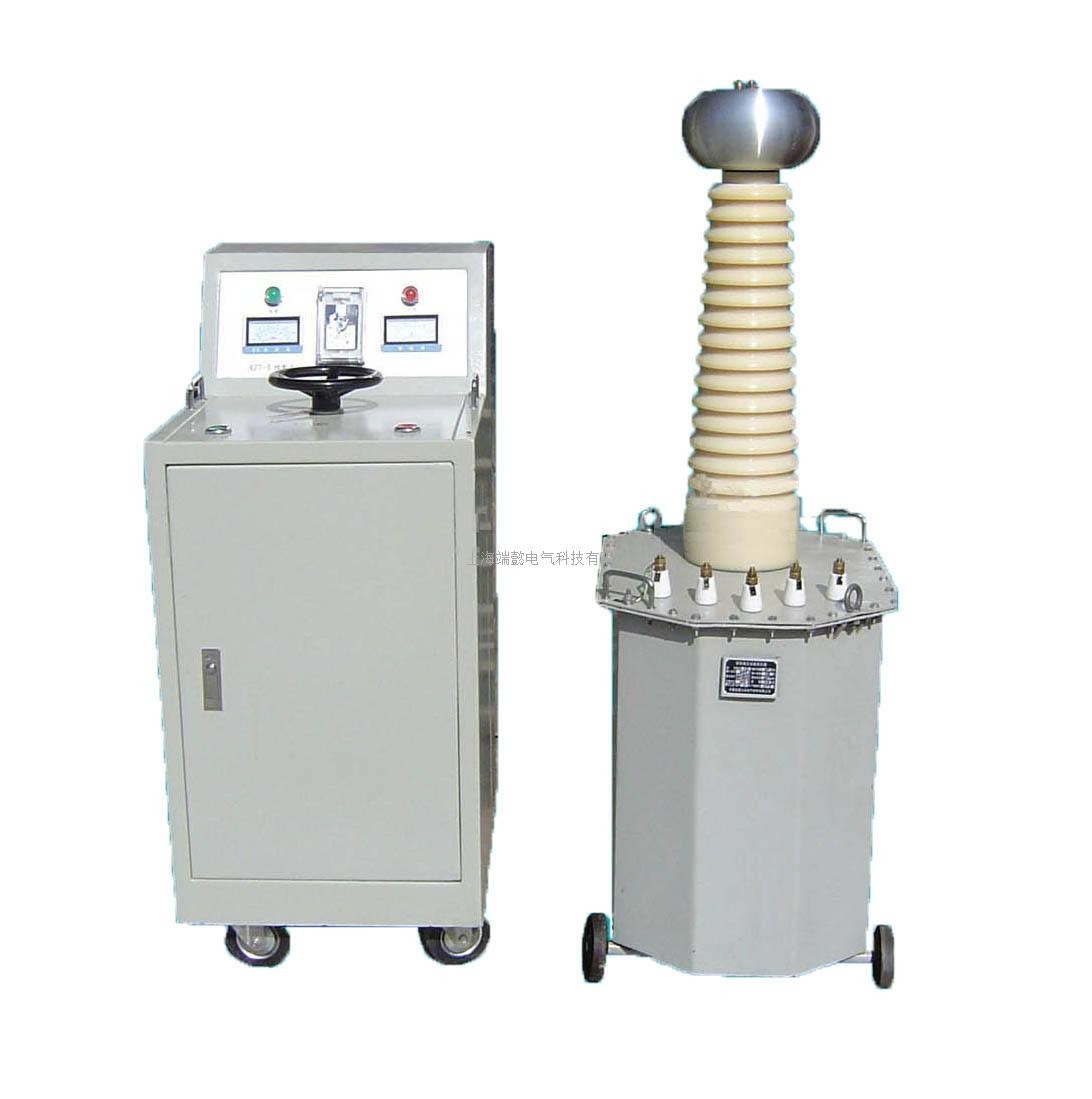

YD series AC / DC high voltage test transformer

YD series AC / DC high voltage test transformer 0

Product description

The light AC / DC high voltage test transformer is a new product based on the (G) series of test transformers and improved according to the national standard . This series of products are characterized by small volume, light weight, compact structure, complete functions, strong universality and convenient use. It is especially suitable for power system, industrial and mining enterprises and scientific research departments to carry out power-frequency voltage-withstand test or insulation strength test under DC high voltage for various high-voltage electrical equipment, electrical components and insulating materials. It is an essential and important equipment in high voltage test.

Structure features

The light high voltage test transformer adopts single frame core structure. The primary winding is wound on the iron core and the high-voltage winding is outside. This coaxial arrangement reduces the leakage flux and increases the coupling between windings. The shell and the core of the product form an octagonal structure, and the overall appearance is elegant and generous.

Technical data

Model	Capacity	High-voltage voltage(KV)		High-voltage current(mA)		Input of low voltage		Transformation ratio	Temperature rise ℃
Model	(kVA)	AC	DC	AC	DC	Voltage (V)	Current (A)	High voltage/ Low voltage	30 mins
1.5/50	1.5	50	70	30	15	200	7.5	500	10
3/50	3			60			15
5/50	5			100			25
10/50	10			200	50		50
20/50	20			400	100	400	50
30/50	30			600	100		75
40/50	40			800	105		100
50/50	50			1000	100		125
10/100	10	100	140	100	50		25	1000
20/100	20			200	100		50
30/100	30			300			75
40/100	40			400			100
50/100	50			500			125
20/100	20	150	210	133			50	1500
30/100	30			200			75
40/100	40			267			100
50/100	50			333			125
100/150	100			667	150		250

·Service conditions

1. Ambient temperature: 0 ~ 40 °C

2. Altitude: < 100m

3. Relative humidity: < 85%

4. There shall be no gas, steam, chemical dust and other explosive and corrosive media in the site.
