China Electrical Power Transformer manufacturer

Railway Traction Transformer widely used model

Product Details:
Place of Origin: China
Brand Name: HENGFENGYOU
Certification: ISO IEC CB COC KEMA SNI SABS CCC
Model Number: S11
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-200000/piece
Packaging Details: wooden case
Delivery Time: 15 DAYS
Payment Terms: LC T/T
Supply Ability: 5000 pieces/year
Contact Now

Detail Information

Usage: Power Product Name: Three Phase Oil Transformer
Frequency: 50Hz/60Hz Output Voltage: Customize
Color: Optional Application: Change Voltage
Place Of Origin: Qingdao,China
High Light:

oil immersed distribution transformer

,

oil immersed power transformer

Product Description

Railway traction transformer

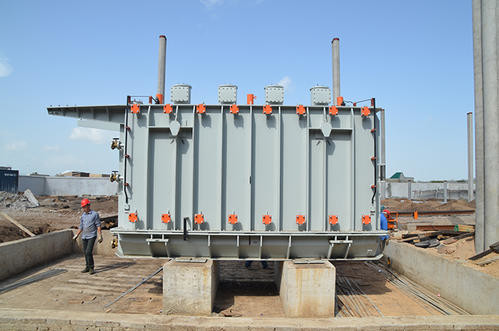

                                       Railway Traction Transformer  widely used model 0





Product Features:

The transformer that supplies power to railway traction line is called railway traction transformer. Our company uses the world's advanced transformer design technology and manufacturing process, and adopts the programmed design to analyze and quantitatively calculate the dielectric breakdown mechanism, electric field numerical analysis and insulation technology, wave process impact characteristics of winding and anti sudden short circuit strength, etc. In combination with our company's years of experience in manufacturing traction transformers, we have made a great breakthrough on the basis of traditional technology, thus further improving the reliability and advanced nature of the products. Products have low temperature rise, low loss, low noise, high efficiency, high anti-short circuit ability, strong overload capacity and other outstanding technical characteristics.



Advantage:

The body adopts a new type of insulation structure to improve the ability to withstand short-circuits;
Spiral coil with longitudinal oil passage has a better internal heat dissipation;
High efficiency, low loss, can save a lot of power and operating costs;
The surface of the corrugated oil tank is coated with three anti-paint after oil removal, rust removal, and phosphating.

It is suitable to use in metallurgy, petrochemical, and mining environments.




1, low no-load loss and low load loss;
2, low noise;
3, low voltage partial discharge;
4, high anti short-circuit capacity;
5, reliable performance, no oil leakage and no damages.




Technical data



110kV three-phase“V,v”Railway traction transformer
Rated capacity(kVA)
AB+BC
Rated Voltage(kV) Vector Group no-load loss
(kW)
load loss
(kW)
No-load current
(%)

short-circuit

impedance

(%)

primary side secondary side
6300+10000 110±2×2.5% 2×27.5 Vv0
or
Vv6
15 70 0.6 8.4 or 10.5
8000+10000 17 82 0.6
10000+10000 19 90 0.5
10000+12500 20 100 0.5
12500+12500 23 105 0.5
12500+16000 25 110 0.5
16000+16000 27 115 0.5
16000+20000 28 120 0.5
20000+20000 29 128 0.5
20000+25000 34 140 0.5
25000+25000 37 145 0.5
25000+31500 42 160 0.5
31500+31500 47 175 0.5



·Service conditions

a) Altitude

Not more than 1000 m above sea level.

b) Ambient temperature

Maximum temperature + 40 ℃;

Average temperature of the hottest month + 30 ℃;

Maximum annual average temperature + 20 ℃;

Minimum temperature - 25 ℃.

c) Relative humidity

The monthly average is no more than 90%;

The average is no more than 95%.

d) Waveform and symmetry of power supply voltage





Workshop

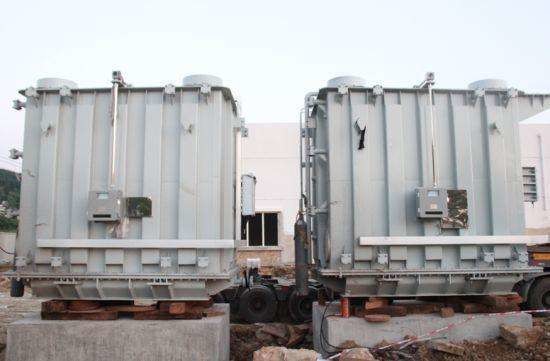

Railway Traction Transformer  widely used model 1
