SCB10 no-encapsulated-winding dry-type power transformer

Product Details:
Place of Origin: China
Brand Name: HENGFENGYOU
Certification: ISO IEC CB COC KEMA SNI SABS CCC
Model Number: SCB10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 500-30000
Packaging Details: wooden case
Delivery Time: 15 DAYS
Payment Terms: LC T/T
Supply Ability: 5000 pieces/year
Contact Now

Detail Information

Material: Aluminum Or Copper Usage: Single-phase Transformer, Rectifier Transformer, Combined Transformer, Power Transformer, Distribution Transformer
Capacity: 100.125.160.200.250.315.400.500.630.800.1000 HS Code: 85043190
Product Name: Dry Type Transformer Certificate: CE,ISO,CQC,SABS,3C
High Light:

cast resin dry type transformer

,

dry cast resin transformers

Product Description

Dry type transformer

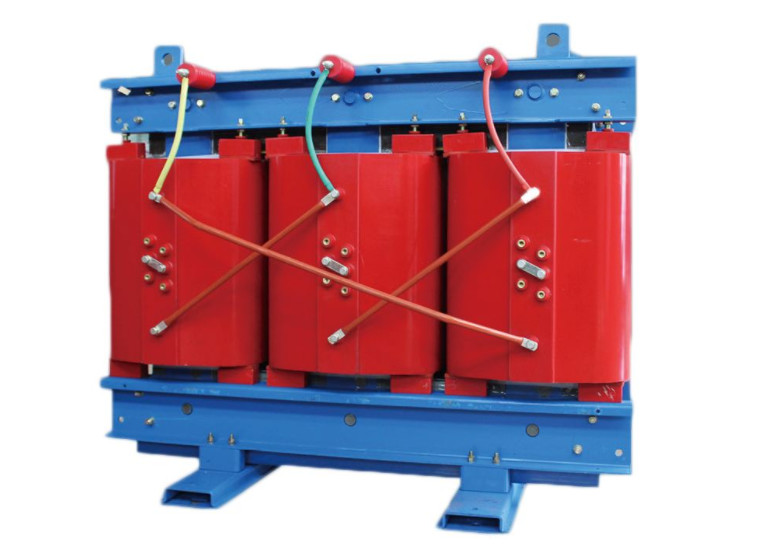

                              SCB10  no-encapsulated-winding dry-type power transformer 0

Product introduction
SCB10 / 11 series non-encapsulated dry-type transformer has got the advantages of safety, reliability, energy-saving, fireproof, explosion-proof and easy maintenance, and it has advanced design, reasonable structure and beautiful appearance. This type transformer is most suitable for harsh places with high fireproof requirements, big load fluctuation and dirty and humid environment, such as high buildings, airports, subways, power plants, metallurgy, hospitals, shopping centers, residential complex, petrochemical, nuclear power, nuclear submarines and other important places.

Application
SC(B) Series DRY EPOXY RESIN DISTRIBUTION POWER TRANSFORMER is widely applied in hotels, high buildings, business centers, residence community, gymnasium, Petrochemical plant, airport, harbor, metro, mine, drillic.

Technical data



Rated capacity (kVA)

H.V. winding

(kV)

Tapping range of high voltage (%)



L.V. winding

(kV)

Vector group

load loss

(kW)

No-load loss

(kW)

No-load current (%)
30

6

6.3

6.6

10

10.5

11

±5%

±2x2.5%

0.4

Yyn11

or

Dyn11

0.71 0.19 3.2
50 1.00 0.27 2.8
80 1.38 0.37 2.6
100 1.57 0.4 2.4
125 1.85 0.47 2.2
160 2.13 0.54 2.2
200 2.53 0.62 2
250 2.76 0.72 2.2
315 3.47 0.88 1.8
400 3.99 0.98 1.8
500 4.88 1.16 1.8
630 5.88 1.34 1.6
630 5.96 1.3 1.6
800 6.96 1.52 1.6
1000 8.13 1.77 1.4
1250 9.69 2.09 1.4
1600 11.73 2.45 1.4
2000 14.45 3.05 1.2
2500 17.17 3.6 1.2




Structural features

1. unique ceramic insulation structure: adoption of insulating cylinder and high frequency ceramic cushion block generates no deformation.



2. VPI process: Nomex insulation material is first applied to high and low voltage coils, and then immersed repeatedly in H-class insulation liquid with special formula in vacuum pressure equipment. After several baking, coils are sealed externally by high-strength insulation material and then solidified at high-temperature. The high voltage coil adopts a continuous structure with high mechanical strength and good heat dissipation.



3. The iron core is made of silicon steel sheet with high conductivity and magnetic properties. A stepping 45 °fully-oblique structure is adopted. The winding and iron core are fixed by elastic device, thus low no-load loss and noise. Surface of iron core is treated by special process. The iron core is moderately clamped by the pull screw, and the up and low clamps are connected by pulling board and fixed with the base and the winding. The winding is fixed by elastic cushion block. This buffer structure can reduce the vibration and noise of the winding.



4. The outgoing line terminal is fixed on the upper part of the winding. The tap changer is in the middle, and the low-voltage line terminal is a plate-type conductive bar, which is faxed by cold pressed welding.





Product details

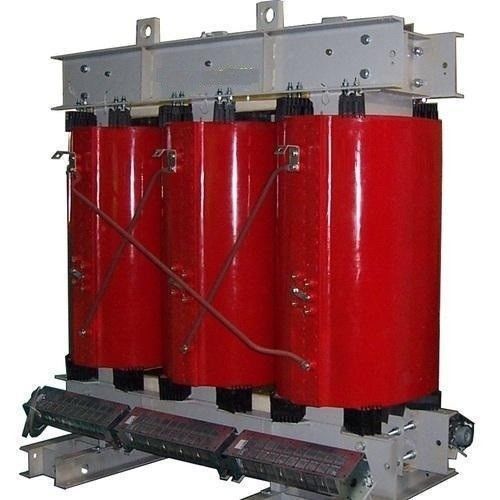

SCB10  no-encapsulated-winding dry-type power transformer 1

Points to note



1.working condition
* Device types: indoor type
* Normal environment conditions of use: the elevation not more than 1000 m
* Environmental highest temperature + 40℃, minimum-25 ℃
* The special environment conditions of use: elevation of more than 1000 m
* Environmental highest temperature + 40 ℃, minimum-45 ℃. (when you order details)
* Mounting ambicnt: no corrosive gas, no obvious dirt environment

2.applicable  standard
* IEC60076 power transformer
* IEC723 dry power transformer
* GB6450-1986 dry power transformer
* GB/R1094-1996 power transformer
* GB4208-1993 outer shell protect grade(IP code)

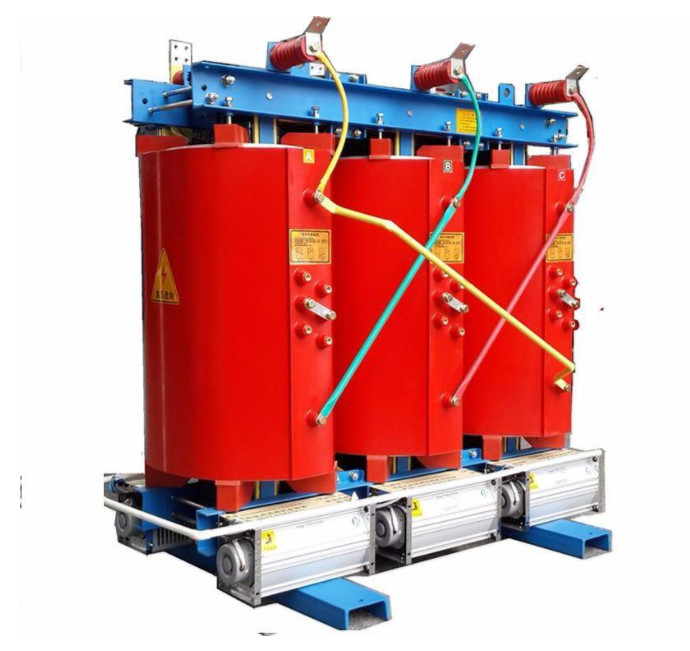

SCB10  no-encapsulated-winding dry-type power transformer 2



Qualification Centre



All products of the company have passed the national type test like CCC, CQC , CTQC and other

national mandatory product certification, and has a perfect quality, occupational health and

environmental management system certification system. Our products have passed ISO9001, 2000

and other international quality system certification.





SCB10  no-encapsulated-winding dry-type power transformer 3





SCOPE of application


None of the dry-type transformers we see today are installed in a separate, tightly enclosed room, as in
the oil-immersed type, but only in a relatively dry and clean room. In addition to this, it is also very convenient
to transport or carry, no matter what kind of transport vehicles, trains, cars or other non-motor vehicles can be,
but it is best to keep the car dry, clean and the product itself in good packaging. Practice has proved that really
good products will always be more and more marketable. As dry-type transformers have very good fire-proof
performance and are easy to install and maintain, they are also used more and more widely Especially in the
modern commercial downtown, residential areas, hospitals, airports, stations, subways, theaters, schools,
public places and other places with high requirements on fire protection.



SCB10  no-encapsulated-winding dry-type power transformer 4


SCB10  no-encapsulated-winding dry-type power transformer 5
