pre-assembled power distribution Substation Box，European style hot model

Product Description

Prefabricated Electrical Substation Box 4000A Rated Current For Power   Distribution




Overview
European type secondary substation integrates 6~10 kV medium voltage switchgears, 6~10 kV/0.4 kV, 1250k V A secondary transformer and low-voltage switchgears into a prefabricated housing. YB-12/0.4 prefabricated substation could be used in power distribution system of both ring main type and radial type grid power supply system. It is applicable in construction sites, factories, mines, oil fields, residential quarters, commercial centers, high-rise buildings, streets and other places.
We have YB-12/0.4-400KVA;YB-12/0.4-500KVA;YB-12/0.4-630KVA

Product Features

Less Space Occupation
Only 1/5~1/4 of space occupation compared to the traditional substation with the same capacity.

Lower Cost
Less cost in construction and both of high voltage and low voltage cabinets, only 1/3~1/2 of the cost of the substation with the same capacity.

Higher quality of power supply
S11/S13 fully sealed oil-immersed power transformer or S C B9 dry type power transformer could be used in this type of substation, thus the no load loss and the noise are lower. Because the substation volume is smaller, it can be mounted near the load center, thus the line loss is decreased, the power supply quality is guaranteed.

Less maintenance
As high as IP43 of the protection level, assuring the functions of anti-dust, anti-rain, small animal resistance and anti-misoperation, leading to higher level of power supply security and reliability; compact internal components, automatic monitoring function is complete, maintenance workload is relatively reduced.

Easy to install and reliable running
Under the condition of prefabrication, after the overall hoisting and fastening the anchors, it can be wired, commissioned, and starting running.
Advantages
Reduced electrical losses as USS can be installed near load centres.
Total economy in cost.
Higher degree of safety and operational reliability is achieved by HT and LT switchgears and protective relays to avoid overloading.
Reduction in logistic cost as USS is delivered as a single unit.
Low civil / foundation cost.

Parameters








Product composition


Service Centre

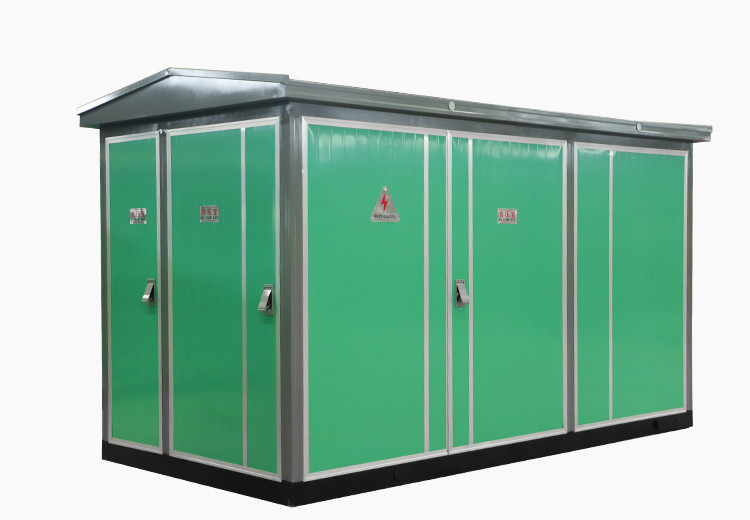

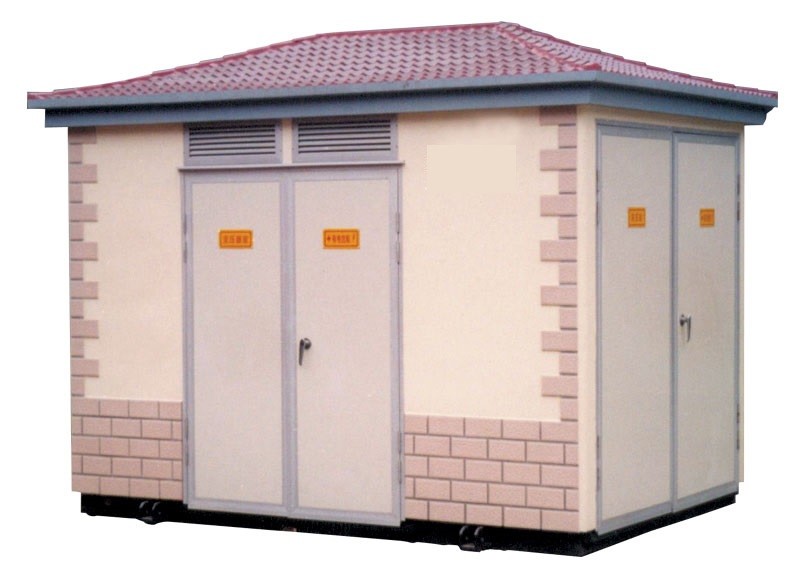

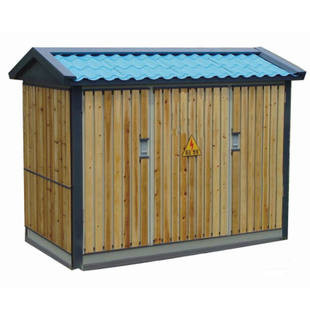

_{The shell of the box is made of aluminum-coated zinc steel plate and container manufacturing  technology, and the design is beautiful. On the premise of ensuring the reliability of power supply, the shell color of the box-type substation is selected, so that it is easy to be in harmony with the surrounding environment Especially suitable for urban construction.

Such as: Urban residential  areas, stations, ports, airports, parks, green belt and other densely populated areas, it can be  used as a fixed substation, can also be used as a mobile substation, with decorative and  beautifying the environment.}
