2020years KYN28-12 High voltage Skid-mounted metal-enclosed switchgear

Product Details:
Place of Origin: China
Brand Name: HENGFENGYOU
Certification: ISO IEC CB COC KEMA SNI SABS CCC
Model Number: GCK
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-20000/piece
Packaging Details: wooden case
Delivery Time: 30 days
Payment Terms: LC T/T
Supply Ability: 5000 piece/year
Contact Now

Detail Information

Model Number: GCK Rated Voltage: 660v
Certificate: CCC, CE, ISO OEM: Offered
Frequency: 50/60Hz Protection Level: IP65 Ip66 Ip67 Ip68 Ip54
Material: C Profile (basic Skeleton) Standard: GB7251.1-2013 IEC/EN60439-1
Application: Industrial, High Buildings Warranty: 1 Year

Product Description

low voltage draw out type power distribution GCK switchgear



Features

GCK low-voltage withdrawable switchgear is widely used in power generation plants, substations, power

distribution centers PC and motor control center MCC of factory and mining enterprises and high-rise

buildings, as a low-voltage complete power distribution device for AC 50-60Hz, rated working voltage of

660V and below, rated current of 4000A and below, power distribution, motor centralized control, reactive

power compensation.In the three-phase three-wire or three-phase four-wire system, it is used as a substation

, feed or motor for low-voltage distribution systems. GCK low-voltage withdrawable switchgear has increased

its capacity and mechanical strength on the basis of maintaining higher electrical performance than similar

products, and has characteristics of advanced structure, beautiful appearance, high protection level, safety

and reliability, and easy maintenance; can be the update product of low voltage switchgear device.

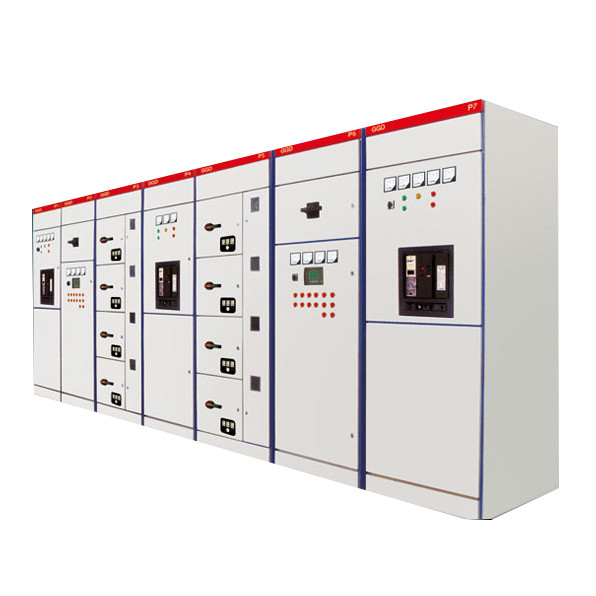

2020years KYN28-12 High voltage Skid-mounted metal-enclosed switchgear 0



Rated Insulated Voltage AC660V , AV1000V
Rated Working Voltage AC380V , AC660V
Rated Frequency 50Hz
Horizontal busbar rated current 1250-4000A
Vertical busbar rated current 1000A
Feeder circuit maximum current 2500A
Drawer circuit Maximum current 630A
Control motor maximum capacity 320KW

Horizontal busbar peak

withstand current(0.1 S)



63KA,105KA,176KA

Horizontal busbar peak

withstand current(1 S)



30KA,50KA,80KA,100KA

Vertical busbar peak

withstand current(0.1 S)



63KA,105KA

Vertical busbar peak

withstand current(1 S)



30KA,50KA

Rated working frequency withstand voltage(1 min) 2500A

Secondary frequency

withstand voltage(1 min)



2500A

Dimension size

( width*deep*height) mm



600(800/1000)*800(1000)*2200

2020years KYN28-12 High voltage Skid-mounted metal-enclosed switchgear 1



KYN28-12 armored metal-enclosed switchgear (hereinafter referred to as KYN28-12 switchgear) is suitable for three-phase AC 50Hz (60Hz), 7.2~12kV single busbar and single busbar segmented power system, with "five-proof" function. The removable part of the switchgear can be equipped with components such as vacuum circuit breakers and vacuum contactors.

KYN28-12 switchgear meets IEC298, GB3906, DL404 and other standards.

The degree of protection of the switchgear cabinet is IP4X. When the breaker door is opened and the handcart is removed, the degree of protection is IP2X.

All relevant IEC specifications and national or local safety guidelines are to be observed during installation and operation of the system.



2020years KYN28-12 High voltage Skid-mounted metal-enclosed switchgear 2
