Electrical equipment XGN2-12KV industrial switchgear for power supply distribution

Product Details:
Place of Origin: China
Brand Name: HENGFENGYOU
Certification: ISO IEC CB COC KEMA SNI SABS CCC
Model Number: MNS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-20000/piece
Packaging Details: wooden case package
Delivery Time: 30 days
Payment Terms: LC T/T
Supply Ability: 5000 piece/year
Contact Now

Detail Information

Name: Electrical Switchgear Feature: Superior Performance, Product Safety, Reliability, Environmental Protection
Brand: Power Distribution Transformer Standard: CE,ISO,UL,SABS,3C, IEC60076-11 ISO9001 ISO14001 KEMA CE
Model Number:: Electrical Switchgear

Product Description

Electrical equipment XGN2-12KV industrial switchgear for power supply distribution

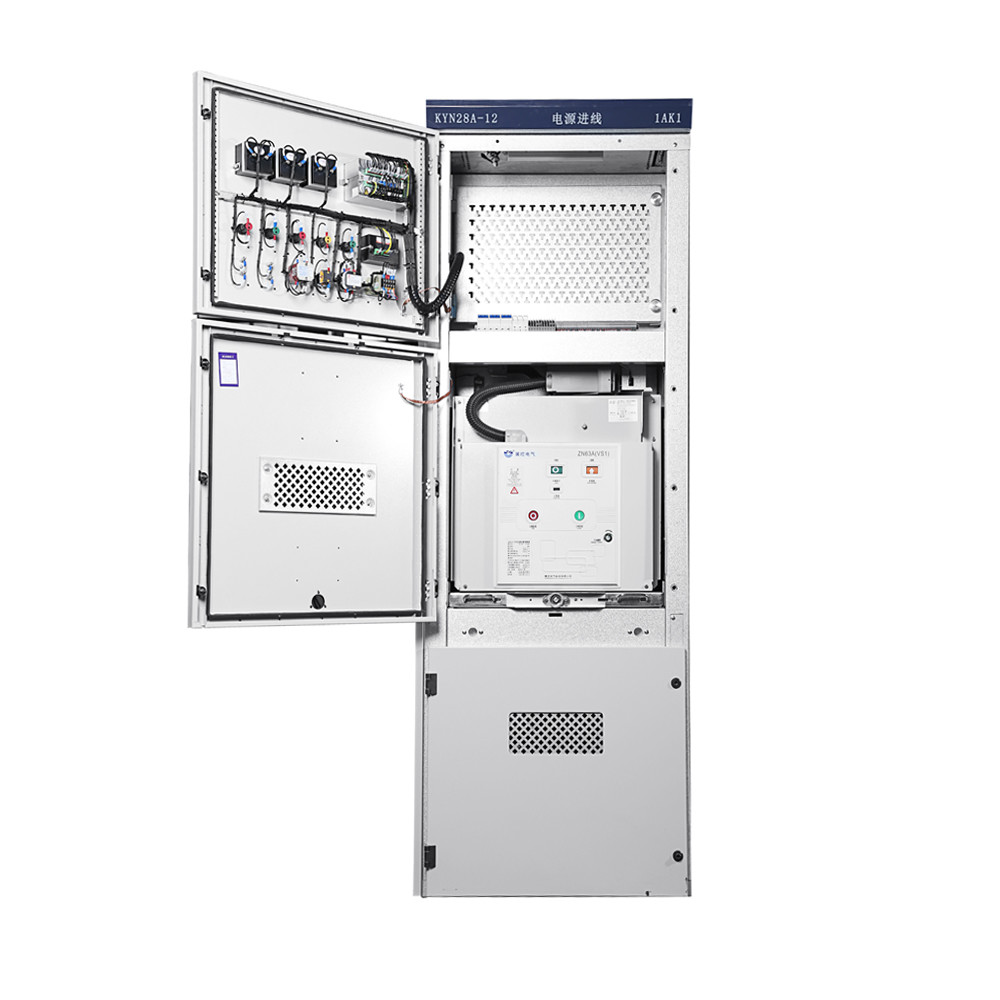

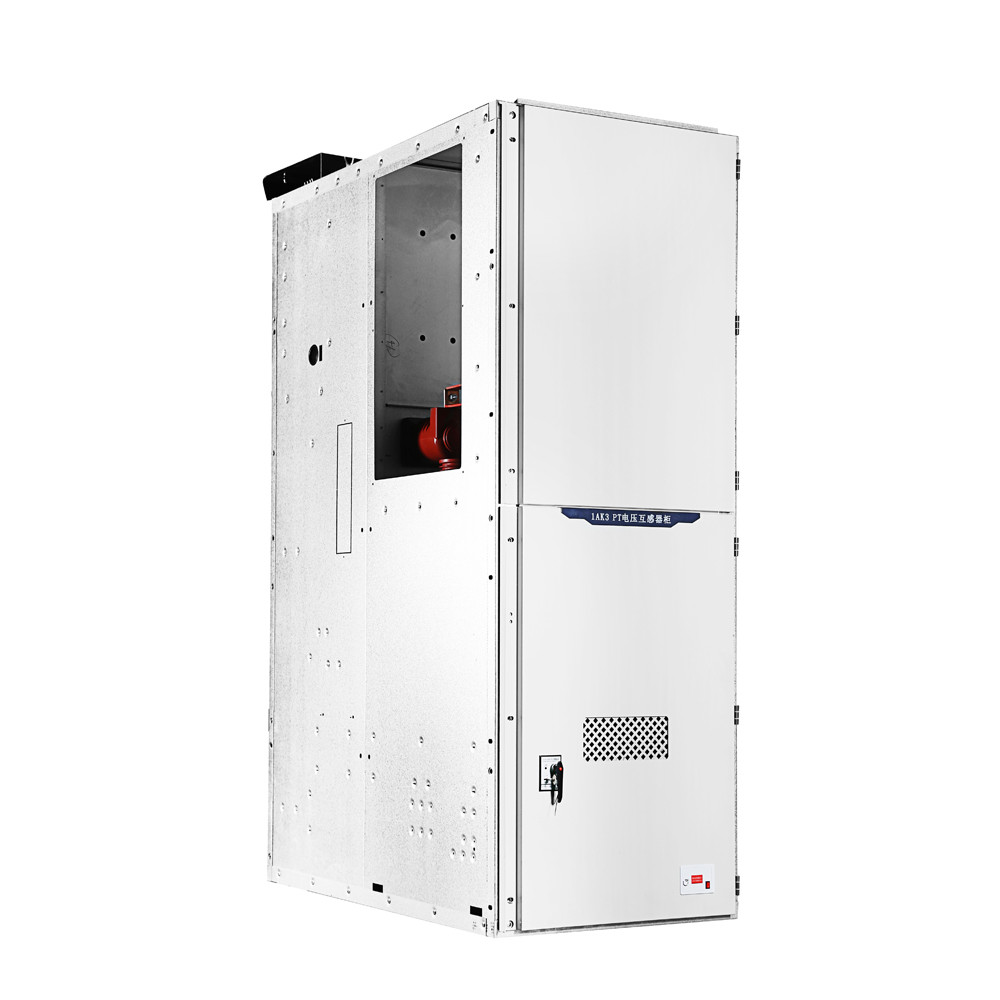

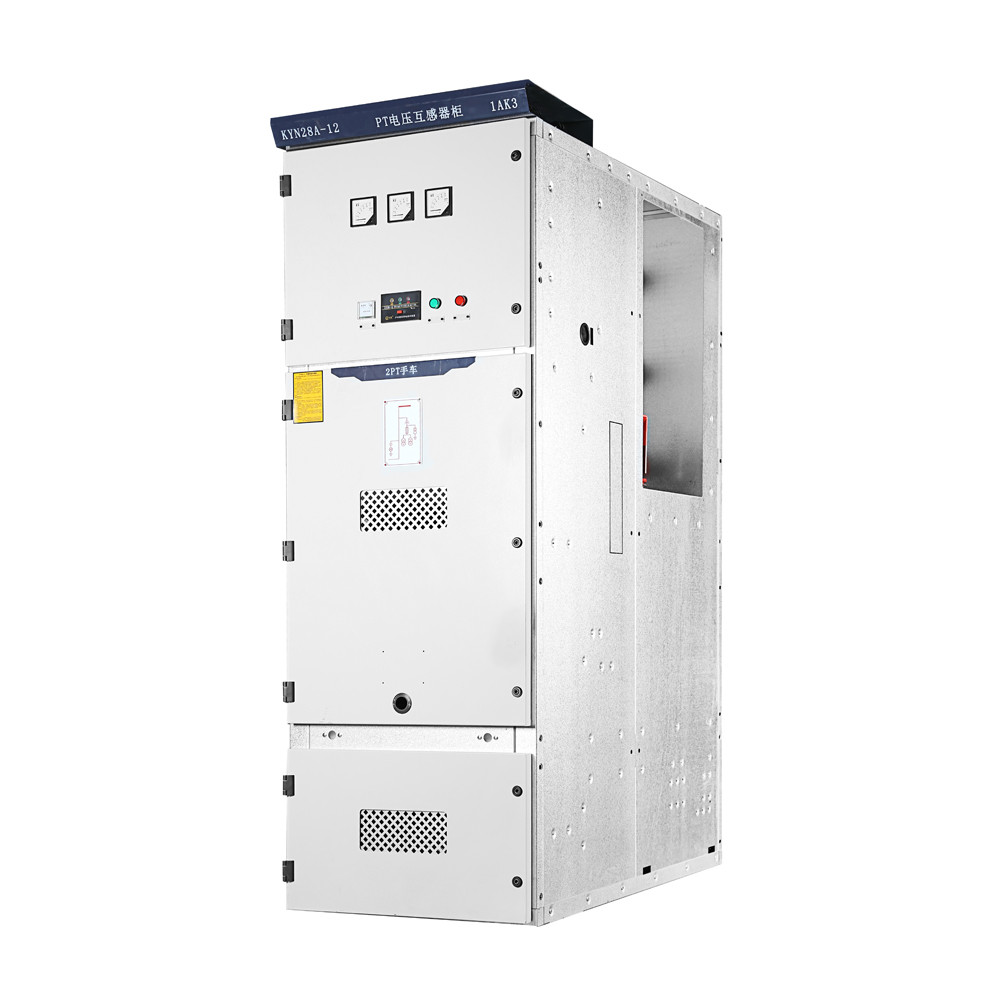

KYN28-12 Mid-removable Switchgear

KYN28-12 removable AC metal-clad switchgear (short for panel as below) is a new product. It will be a substitute for old fashioned metal-enclosed switchgear, such as KYN-12, JYN-12, GFC-12, etc. The panel applies to 3.6~12kV 3 phase AC 50Hz network for receiving and distributing power energy and also for control, monitor and protection. It accords with standard of IEC62271-200, IEC60694, GB3906.


No items Date
1 Rated impulse withstand voltage(Ump) 8KV
2 Main bus rated short withstand current (Icw) 30KA~50 KA
3 Distribution bus rated short withstand current (Icw) 30KA
4 Main bus rated current (InA) 1000 ~2500A
5 Distribution bus rated current (Inc) 1000A
6 Pollution degree 3
7 Protection grades IP40
8 Rated working voltage(Ue) 380V
9 Rated insulation voltage(Ui) 660V
10 Rated frequency 50HZ

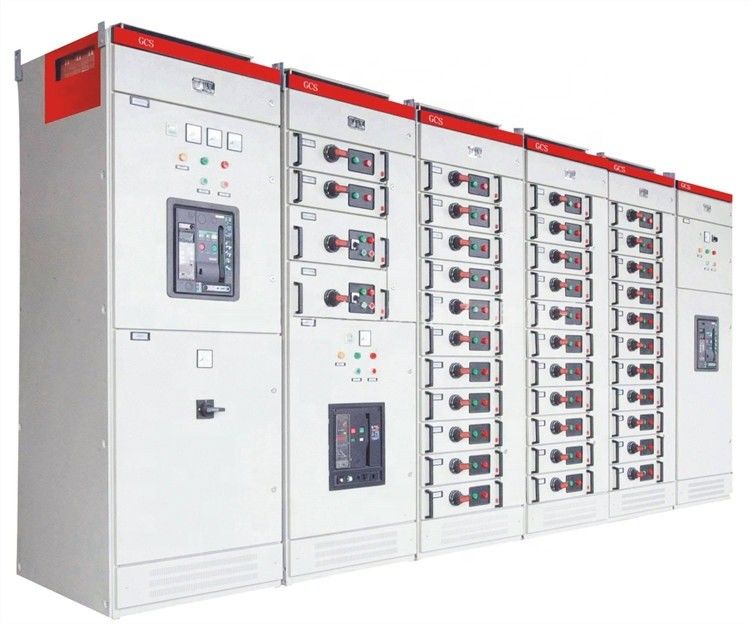

witch Cabinet Outgoing Complete LV Switchgear Electrical





Product features

●Increase the heat capacity of the adapter, and significantly reduce additional temperature rise of connector, spacer plates due to the temperature rise in adapters.

●Clear and reliable division between functional units and compartments.

●Flat-mounted arrangement of bus bar permits good driving and thermal stability.

●The connecting with external cables is completed within the cable compartment, and the cable can be pulled in and out. The zero sequence current transformers are set in the cable compartment, easy for installation and maintenance.

●By the reduced current limiting reactors' matched short-circuit current, the bus bar's voltage could be stabilized at a certain value, the parts'short-circuit components strength requirement could also be reduced.

●The drawer unit has sufficient number of secondary plug-in components to meet the requirement for the numbers of connection points for computer interface and automatic control circuits.









Electrical equipment XGN2-12KV industrial switchgear for power supply distribution 0

Electrical equipment XGN2-12KV industrial switchgear for power supply distribution 1

Electrical equipment XGN2-12KV industrial switchgear for power supply distribution 2
