Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | HENGFENGYOU |
Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
Model Number: | SCB10,11,12,13,15 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 |
Price: | 200-200000/piece |
Packaging Details: | wood pack |
Delivery Time: | 15 DAYS |
Payment Terms: | LC T/T |
Supply Ability: | 5000 pieces/year |
Detail Information |
|||
Type: | Dry Type,transformer,Cast Resin | Material: | Copper, Aluminum |
---|---|---|---|
Usage: | Power Distribution Transformer | Phase: | Three,Single |
Frequency: | 50/60Hz | Rated Capacity: | 30-3150kva |
Standard: | IEC60076,IEC,GB1094-1996; JB/T10088-2004; GB/T6451-2008; EQV,CNS,EC/ GB/T6451-2008 | Input Voltage: | 11kv/10.5kv/10kv/6.3kv/6kv |
High Light: | cast resin dry type transformer,power distribution transformer |
Product Description

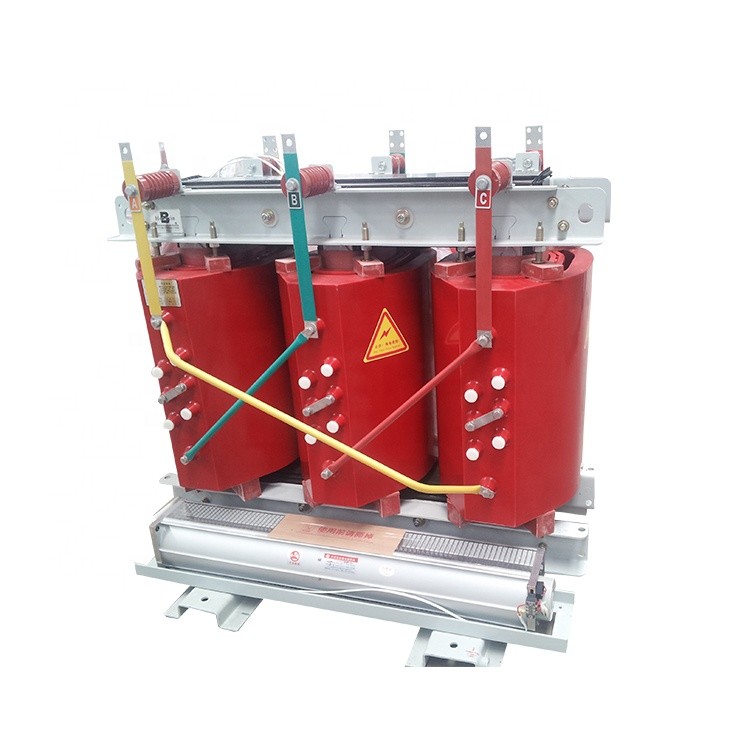

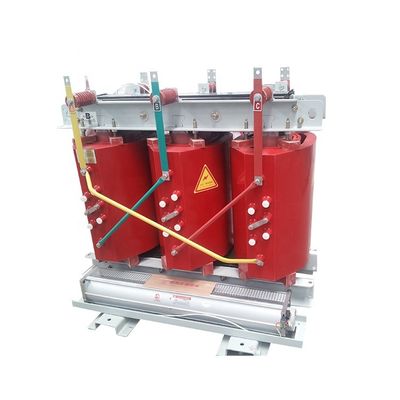

Cast Dry Type Electrical Epoxy Resin Transformer High Frequency
Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.
SCB 10 Transformer normal service conditions
The height above the sea level is below 1000m;
Highest air temperature +40ºC;
Highest daily average air temperature+30ºC;
Highest annual average air temperature +20ºC;
Lowest outdoor air temperature -5ºC.
(defines in detail when transformer in special service conditions )
· Product introduction
SCB10 epoxy resin cast dry-type transformer is an upgrade product of scb9. SCB10 series products features significant high mechanical strength, high electrical strength, high heat resistance and low loss, low noise, low partial discharge. So SCB10 dry-type transformer is environmental protection products for new generation of urban power grid update, and is the mainstream product in the current transformer market. It is especially suitable for commercial center, airport, high building, chemical plant, nuclear power station, ship and other important places requiring fire prevention, explosion-proof and moisture-proof.
10/0.4kV Dry Type transformer Technical parameters(Second level of energy efficiency)
Rated capacity (kVA) |
Voltage combination | Connected group label |
No-load loss (W) |
Load loss(W) | No-load current(%) |
Impendace voltage (%) |
sound power level (dB) |
Exterior size (L x w x h) |
Total weight (kg) |
||||
High voltage(kV) |
tap range |
Low Voltage (kV) |
|||||||||||
130°C(B) | 155°C(F) | 180°C(H) | |||||||||||
100°C | 120°C | 145°C | |||||||||||
30 | 6 6.3 6.6 10 10.5 11 |
±2 x 2.5 ±5 |
0.4 | Dyn11 | 150 | 670 | 710 | 760 | 0.6 | 4.0 | 57 | 900 x 900 x 800 | 300 |
50 | 215 | 940 | 1000 | 1070 | 0.6 | 955 x 900 x 900 | 350 | ||||||
80 | 295 | 1290 | 1380 | 1480 | 0.6 | 58 | 985 x 950 x 960 | 400 | |||||
100 | 320 | 1480 | 1570 | 1690 | 0.6 | 1035x1250x980 | 450 | ||||||
125 | 375 | 1740 | 1850 | 1980 | 0.6 | 59 | 1060x1280x1000 | 500 | |||||
160 | 430 | 2000 | 2130 | 2280 | 0.6 | 1120x1320x1050 | 680 | ||||||
200 | 495 | 2370 | 2530 | 2710 | 0.5 | 60 | 1135x1330x1105 | 770 | |||||
250 | 575 | 2590 | 2760 | 2960 | 0.5 | 1170x1330x1165 | 900 | ||||||
315 | 705 | 3270 | 3470 | 3730 | 0.5 | 62 | 1185x1360x1225 | 1010 | |||||
400 | 785 | 3750 | 3990 | 4280 | 0.4 | 1210x1380x1300 | 1205 | ||||||
500 | 930 | 4590 | 4880 | 5230 | 0.4 | 63 | 1245x1400x1380 | 1400 | |||||
630 | 1070 | 5530 | 5880 | 6290 | 0.4 | 63 | 1295x1410x1355 | 1515 | |||||
1040 | 5610 | 5960 | 6400 | 0.3 | 6.0 | 63 | 1295x1410x1355 | 1515 | |||||
800 | 1210 | 6550 | 6960 | 7460 | 0.3 | 65 | 1375x1450x1480 | 1880 | |||||
1000 | 1410 | 7650 | 8130 | 8760 | 0.3 | 1430x1480x1525 | 2170 | ||||||
1250 | 1670 | 9100 | 9690 | 10300 | 0.25 | 67 | 1480x1500x1570 | 2525 | |||||
1600 | 1960 | 11000 | 11700 | 12500 | 0.25 | 1500x1520x1710 | 2980 | ||||||
2000 | 2440 | 13600 | 14400 | 15500 | 0.20 | 69 | 1570x1550x1735 | 3480 | |||||
2500 | 2880 | 16100 | 17100 | 18400 | 0.20 | 1625x1600x1825 | 4080 | ||||||
1600 | 1960 | 12200 | 12900 | 13900 | 0.25 | 8.0 | 67 | 1500x1520x1710 | 2980 | ||||
2000 | 2440 | 15000 | 15900 | 17100 | 0.20 | 69 | 1570x1550x1735 | 3480 | |||||
2500 | 2880 | 17700 | 18800 | 20200 | 0.20 | 1625x1600x1825 | 4080 |
Note: due to the constantly updated products, shape size and product weight in the table will have some changes, please refer to provide the appearance size chart when ordering.
Structural Features
1. The iron core is made of high-quality cold-rolled oriented silicon steel sheet, the surface is specially treated with protective resin, and full-inclined seam lamination structure is adopted.
2. The low-voltage coil is of foil winding structure made of high-quality steel foil. The high-voltage coil is of layer structure formed by vacuum epoxy casting technique. Transformers with this type of winding shows low partial discharge compared with similar product ;
3.This model features high mechanical strength, strong short-circuit resistance, good dust-proof and anti-fouling performance. Its service life is longer than another dry transformer.
4. The product’s beautiful stainless-steel shell is durable and can provide better protection for the electrified parts of the transformer. It works well outdoors.
5. With excellent moisture-proof and corrosion-resistant performance, the product is safe, fire-proof and pollution-free. It’s especially suitable for working in extremely harsh environmental conditions, and can restart without dry treatment after shutdown.
6. Good heat dissipation performance and strong overload capacity enables it operate with higher capacity when forced air cooling.
OUR SERVICE:
1. quick response in before sales period help you got order.
2. excellent service in production time let you know each step we made.
3. reliable quality solve you after sale headache.
4. long period quality warranty ensure you can buy without hesitate.
