Mining Industry Vacuum Circuit Breaker 12KV ZW20-12 / 630- 25KA High Efficiency

Product Details:
Place of Origin: China
Brand Name: HENGFENGYOU
Certification: IEC CB COC KEMA SNI SABS CCC
Model Number: ZW20-12
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-5000/piece
Packaging Details: wood
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 20000 pieces/year
Contact Now

Detail Information

Poles Number: 3 Type: Vacuum
Rated Voltage: 12KV Rated Current: 630A
Product Name: High Voltege 12kv Vacuum Circuit Breaker With Overload Protector Application: Circuit-breaking
Keywords: Circuit Breakers
High Light:

vcb circuit breaker

,

vacuum circuit switch

Product Description

Z

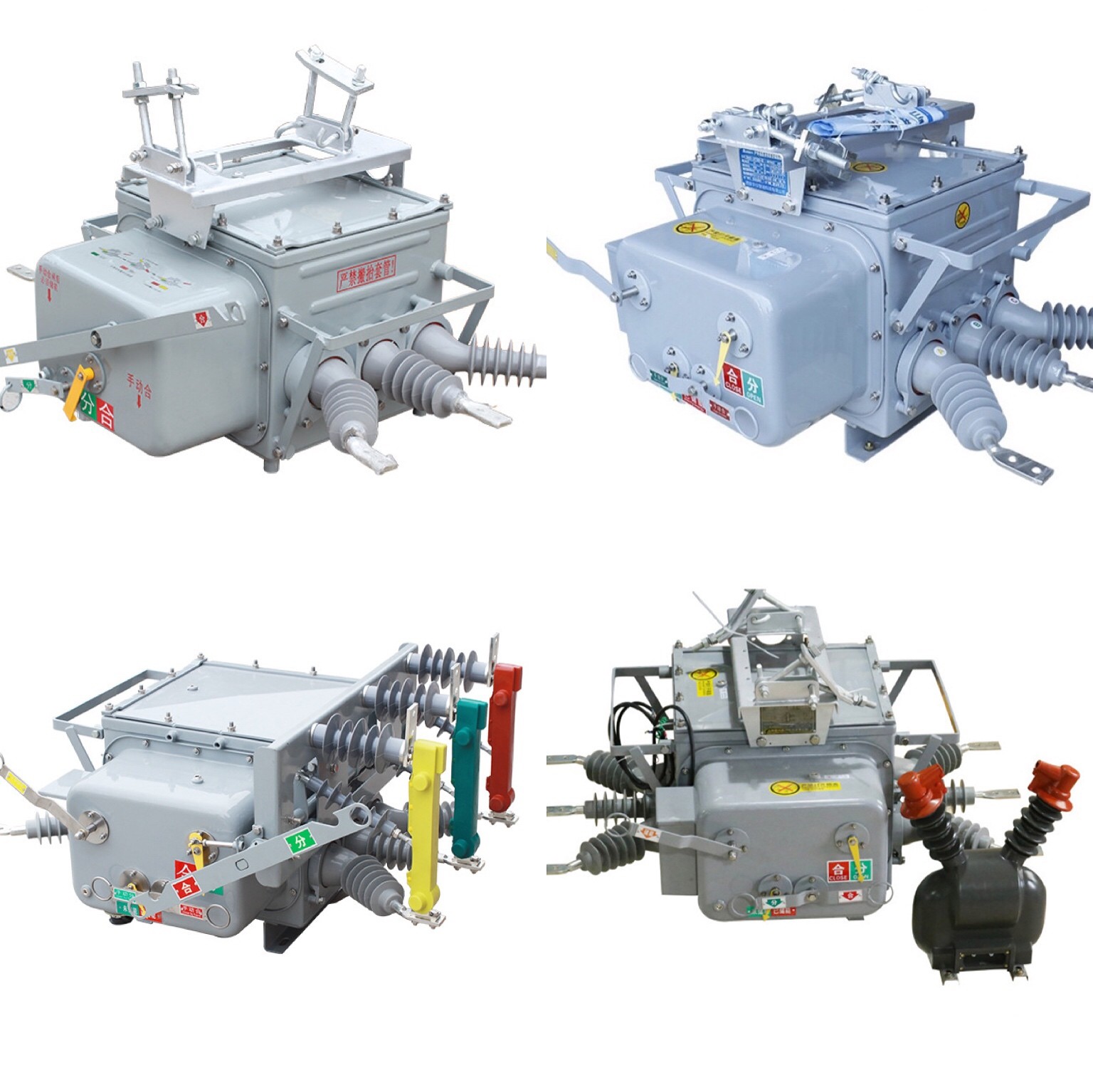

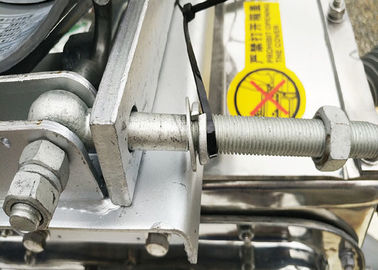

W20-12 / 630-25KA outdoor high voltage vacuum circuit breaker



ZW20-12 series of Outdoor High voltage Current Communication boundary of vacuum circuit breaker was set at rated voltage of 12kV, 3-phase AC of 50Hz outdoor high voltage switchgear. It was mainly used at load current, overload current and short circuit current of cut-off, shut-off power system. It was also used at distribution network protect and control of substation, factories and towns & countries, especially applicable for frequent operate places and town automatic distribution network. It was made up of mature cabinet type hermetic structure, inner full of SF6, good sealing performance, not affected by outside and it was a product of maintenance-free. Its spring control mechanism used straight chain main transmission and trip coil system, high reliability, good circuit breaker.



Structural features

Town, country reform ideal equipment: It can be set with control mechanism to remote control, remote measure and adjustment.
Flexible operation, convenient: This product has performance of electric energy storage, electric close-open and hand energy storage, hand close-open, it also can be operated close or far remote.


Superior performance of open-shut: 30 times of open-shut short current at 20kA.
Small capacity of operation and high reliability: New designed small electric spring structure, parts numbers and operate capacity(about 30W) can be reduced to *** level.
Maintenance-free performance: Main breaker circuit and bivariate device, operate structure were all sealed in air of SF6(zero pressure) and not affected by outside.
Reliable sealability: It was used of mature seal structure technology and reliable capacity.
Special in-out line method: It was used silicon rubber pipe and make terminals distance sufficient, good insulator outside.
Safety in use: There was explosion proof equipment set on the top of box, even if breakdown inner, high temperature air or splash will not out.



Order information

The customer needs provide main parameters of the transformer (input and output voltage, capacity, loss, etc.)
Other customer requirements

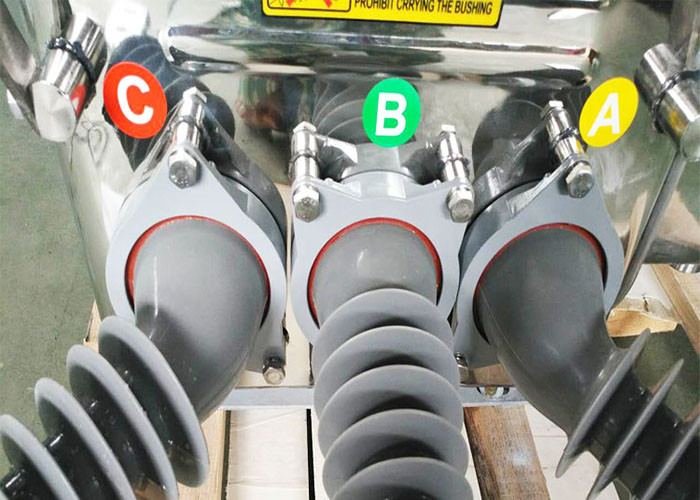

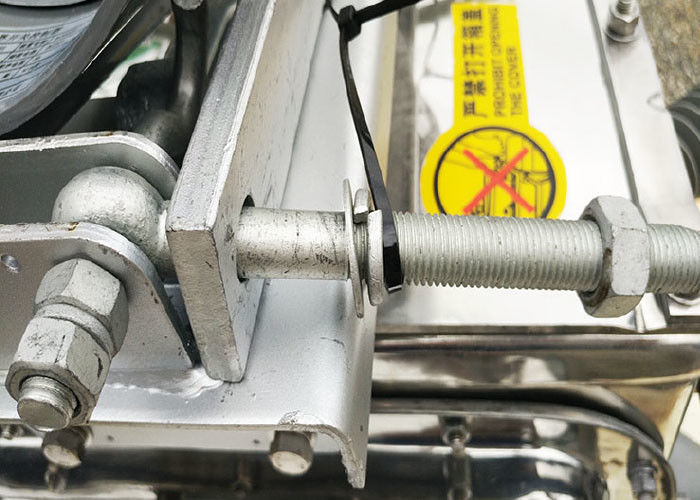

Mining Industry Vacuum Circuit Breaker 12KV ZW20-12 / 630- 25KA High Efficiency 0



Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.



No. Item Unit Data
1 Rated voltage kV 12
2 Rated frequency Hz 50
3 Rated current A 630,1250
4 Rated short circuit breaking current kA 12.5,16,20,25
5 Rated peak withstand current kA 31.5,40,50,63
6 Rated short time tolerance current(4s) kA 12.5,16,20,25
7 Rated short circuit opening and closing current kA 31.5,40,50,63
8 Institution life time 10000
9 Rated short open circuit current switch frequency time 30
10 Rated current open circuit frequency time 10000
11 Power frequency withstand voltage (1min) : phase, ground/fracture kV 42/48
12 Lightning shock withstand pressure(peak)phase, ground/fracture kV 75/85
13 Power frequency withstand voltage of the secondary circuit )(1min) kV 2
14 Net weight kg 140
