Fixed LV Metal Enclosed Switchgear HXGN17 For High Rise Building / School / Park

Product Details:
Place of Origin: China
Brand Name: HENGFENGYOU
Certification: ISO IEC CB COC KEMA SNI SABS CCC
Model Number: HXGN17
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-20000/piece
Packaging Details: wooden case
Delivery Time: 30 days
Payment Terms: LC T/T
Supply Ability: 5000 piece/year
Contact Now

Detail Information

DS No: 17 Indoor Style: N
Fixed Type: G Box Type: X
Ring Switch Cabinet: H Protection Level: IP3X
Weight: 180kg
High Light:

electrical switch cabinet

,

power distribution equipment

Product Description

Electrical Fixed Type Low Voltage HXGN17 LV Switchgear



Box-type fixed metal-enclosed switchgear

HXGN17 box type fixed metal closed loop switchgear (hereinafterreferred to as equipment) is suitable

for3.6 12 kV three-phase AC 50Hz single bus power system is mainly used in factories, mines,residential

quarters, etc.High-rise buildings, schools, parks and other  power distribution occasions, as the acceptance

and distribution of energy, and the actual circuit Control, protection and monitoring. Itcan be used for ring

power supply and terminal power supply, and also for pre-installed transformer substation.Station.
This product conforms to IEC60298, IEC62271-200, IEC62271-1,GB3906,Requirements of GB/T11022,

DL/T404 and other relevant standards, and with perfect "five defenses" workYes. Applicability ofthe equipment

is strong, with small body, light weight, simple operation (manual, electric) and manipulation.Small work force,

obvious fracture point, safe use, convenient maintenance, stable and reliable quality, small area occupied

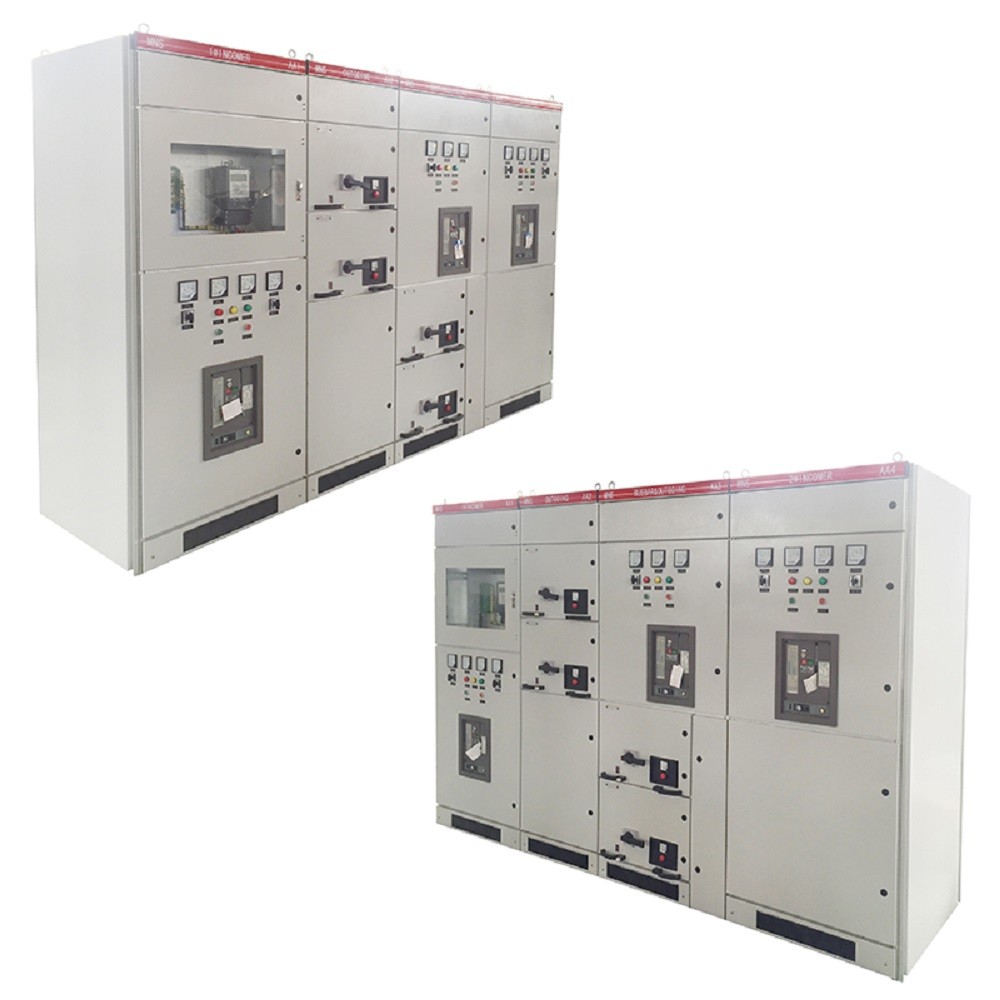

Fixed LV Metal Enclosed Switchgear HXGN17 For High Rise Building / School / Park 0

Switch cabinet technical parameters
Item Unit Data
Rated power power frequency tolerant voltage KV 42/48(1min)
frequency (nter-polar /polar to ground)
tolerant voltage lightening shock tolerant voltage kV 75/85(1min)
  (nter-polar /polar to ground)
Rated Voltage kV 12
Rated Frequency Hz 50
Rated Current A 630
Protection grade   IP3X
Dimensions (WxDxH) mm 600(700)x900x2000(2200)
Weight kg 800~1200



Fixed LV Metal Enclosed Switchgear HXGN17 For High Rise Building / School / Park 1
