|Place of Origin:||China|
|Certification:||ISO IEC CB COC KEMA SNI SABS CCC|
Payment & Shipping Terms:
|Minimum Order Quantity:||1|
|Packaging Details:||wooden case|
|Delivery Time:||30 days|
|Payment Terms:||LC T/T|
|Supply Ability:||5000 pieces/year|
|Product Name:||European Type Box Transformer Substation||Type:||Outdoor|
|Application:||Power Distribution,transmission,control,protect X||Protection:||IP23,IP30|
|Rated Voltage Of Box-type Substation:||6kv Or 10kv||Rated Current Of Box-type Substation:||125630 10-115A|
power distribution substation,
electrical distribution substation

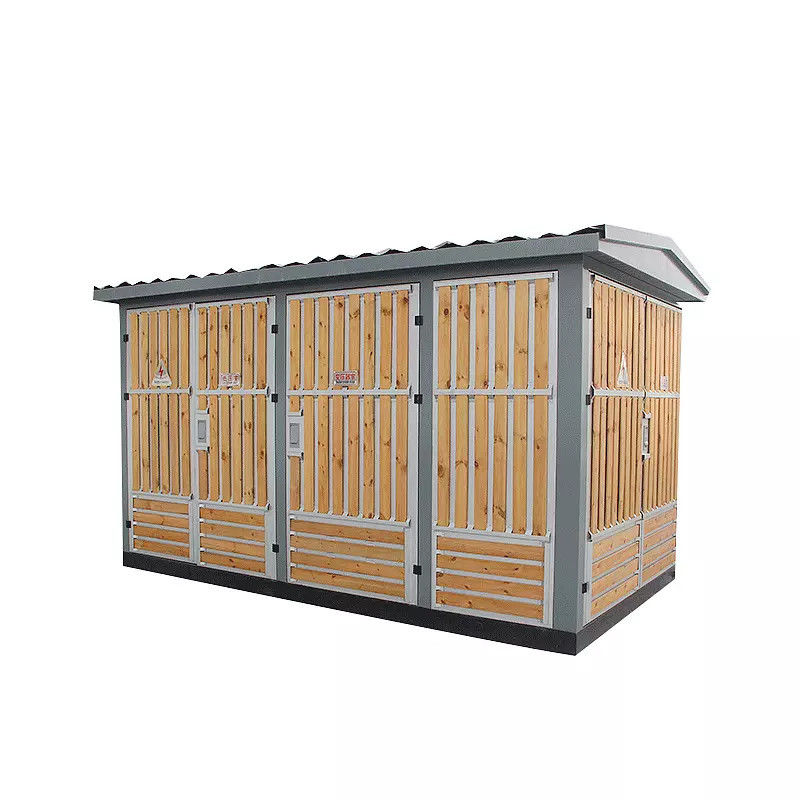

Prefabricated Electrical Substation Box 4000A Rated Current For Power Distribution
YB20 Pre-install European box-type transformer substation ,which includes high-Voltage Switchgear , transformer and low-Voltage Switchgear,which features are beautiful appearance, flexible configuration, compact structure,can be mached with the high voltage load switch ,also can match with the Intelligent interface , that achieves four remote control system,that is the best choice for the the city power grid, landscape area, square, Garden and residential area .
Power transformer substation

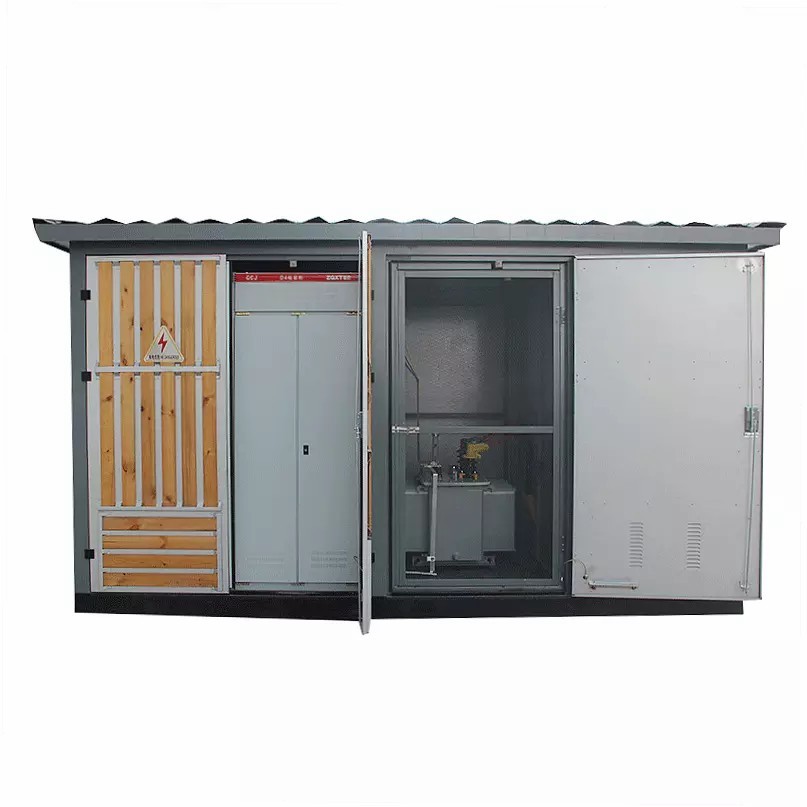

-Including independent high voltage room, transformer room and the low pressure room;
High voltage wiring can be used for ring network, terminal and dual power supply, flexible power supply, high reliability;
-Transformer can be used dry type or oil immersed type transformer, transformer performance is excellent: low consumption loss, low noise, low temperature rising, high overload capacity, anti-short circuit ability, strong impact resistance;
-The low pressure room has the overall function of the complete set of low voltage equipments.
IEC 62271-202 High-Voltage/Low-Voltage Prefabricated Substations
Internal CSS Equipment:
IEC 62271-200 Metal Enclosed switchgear
IEC 60076 Power transformers
IEC 61439-1 Low voltage switchgear

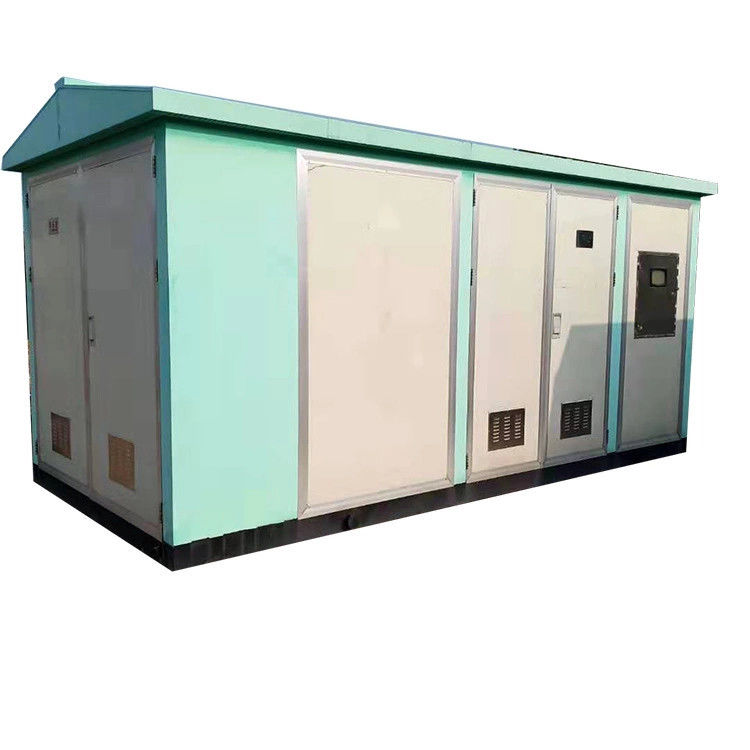

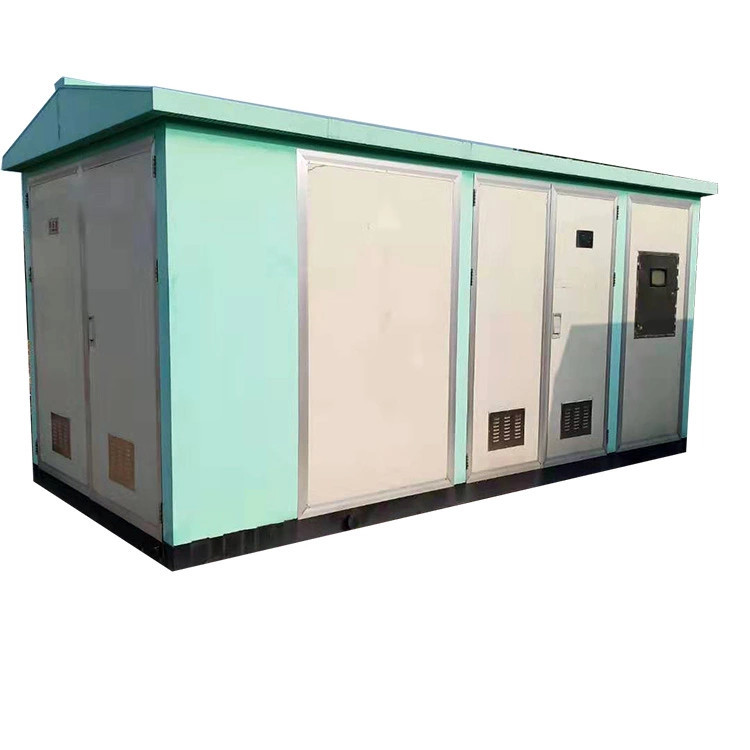

The shell of the box is made of aluminum-coated zinc steel plate and container manufacturing technology, and the design is beautiful. On the premise of ensuring the reliability of power supply, the shell color of the box-type substation is selected, so that it is easy to be in harmony with the surrounding environment Especially suitable for urban construction.
Such as: Urban residential areas, stations, ports, airports, parks, green belt and other densely populated areas, it can be used as a fixed substation, can also be used as a mobile substation, with decorative and beautifying the environment.
