Home ProductsElectrical Substation BoxPreinstalled Compact Substation ZGS13-630/12 For Industrial Zone / Commercial Center
Preinstalled Compact Substation ZGS13-630/12 For Industrial Zone / Commercial Center supplier
Preinstalled Compact Substation ZGS13-630/12 For Industrial Zone / Commercial Center supplier

Preinstalled Compact Substation ZGS13-630/12 For Industrial Zone / Commercial Center

Product Details:
Place of Origin: China
Brand Name: HENGFENGYOU
Certification: ISO IEC CB COC KEMA SNI SABS CCC
Model Number: ZGS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 2000-200000/piece
Packaging Details: wooden case
Delivery Time: 30 days
Payment Terms: LC T/T
Supply Ability: 5000 pieces/year
Contact Now

Detail Information
Three Phase: S Color: Green
Material: Copper Or Aluminum Phase: Three
Coil Number: Two Rated Capacity: 315-2400kw
Standard: IEC60076 Frequency: 50/60Hz
Output Voltage: 240/220/200/120/115/110/100V Coil Structure: Toroidal
Rated Voltage: 11kV-33kV Cooling: AN Or AF
Highlight:

box type substation

,

electrical distribution substation

Product Description

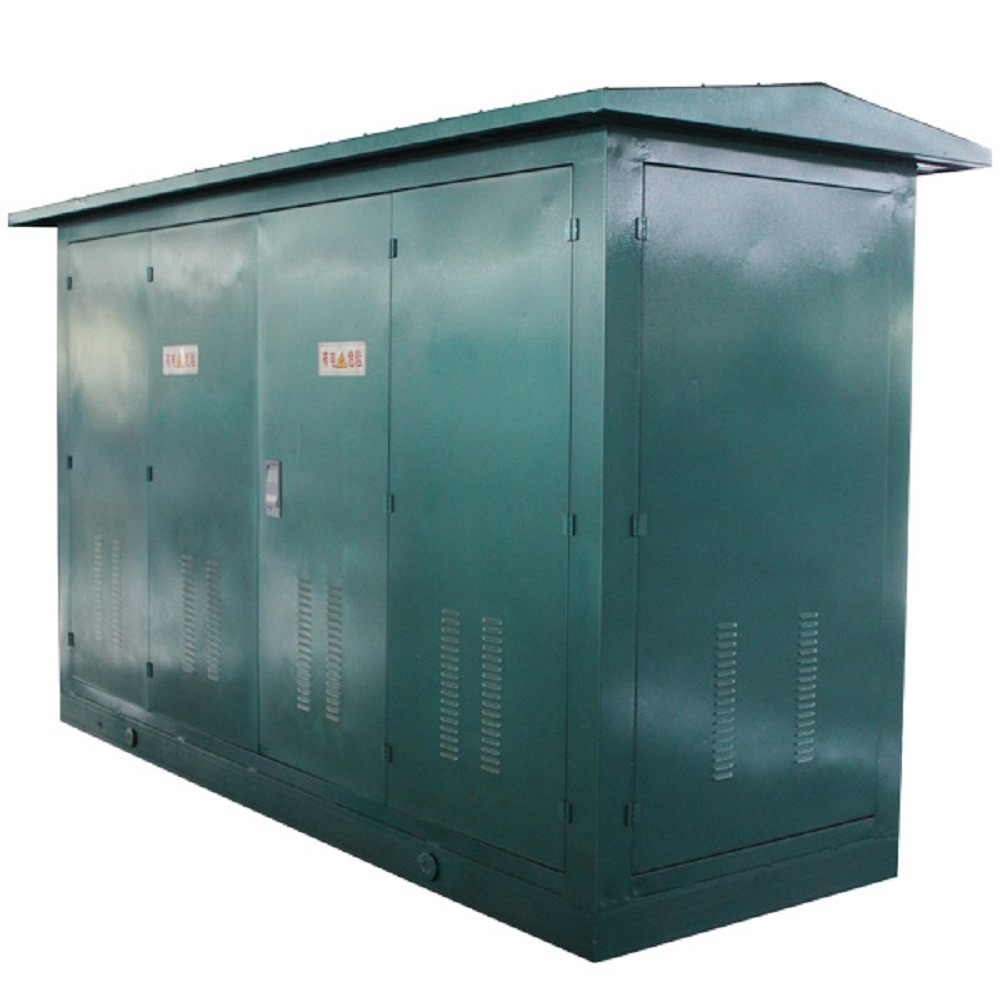

ZGS13-630/12 Preinstalled Substation (American) Compact Substation



Product View

ZGS series combined transformers also called American transformers and are series of products as required
by the construction development and transformation of rural and urban grid.It is a kind of transformer combined
by auxiliary equipment including the body of transformer,switchgear, fuse, disassembling switches, low-voltage
power distribution unit, which can meetthe requirement of configurations such as electric power measurement,
reactive compensation and low-voltage shunt. The ZGS combined transformer, in AC 50HZ, 6-10KV network,
whose nominal capacity is 63-1600KVA, is an independent set of transformation and distribution device, which
can be both applied to outdoor and indoor, generally used in industrial zone,urban residential district, commercial
center, high-rise buildings and temporary construction

Preinstalled Compact Substation ZGS13-630/12 For Industrial Zone / Commercial Center 0
Technical parameters
Rated voltage 10/0.4kv(HV/LV)
Maximum working voltage 12(HV)
Rated frequency 50Hz
Rated capacity 50-1600kVA
Withstand voltage(1 min working) 35kV
Lightning impulse voltage 75kV
Cooling method oil immersion self-cooling
High voltage 50kA
backup fuse switching on current
on-off current of the plug fuse 2.5
environment temperature -35℃ to 40℃
Coil temperature 62 ℃
No load voltage ±5% ±2x2.5%
Noise level 50db
Protection level IP43



Preinstalled Compact Substation ZGS13-630/12 For Industrial Zone / Commercial Center 1



Manager       Jack        Whatsapp :+8618563957953

Manager       Datang    Whatsapp: +8613589262999

Preinstalled Compact Substation ZGS13-630/12 For Industrial Zone / Commercial Center 2
