|Place of Origin:||China|
|Certification:||ISO IEC CB COC KEMA SNI SABS CCC|
Payment & Shipping Terms:
|Minimum Order Quantity:||1|
|Packaging Details:||wooden case|
|Delivery Time:||15 DAYS|
|Payment Terms:||LC T/T|
|Supply Ability:||5000 pieces/year|
|Rated L. V:||0.4kv Or Customized||Capacity:||50~2500kVA Or Customized|
|Product Type:||Dry Type||Winding:||Cooper Winding|
|Rated H. V.:||35kv Or Customized||Core Material:||Silicon Lamination/Amorphous Alloys|
cast resin dry type transformer,
dry cast resin transformers

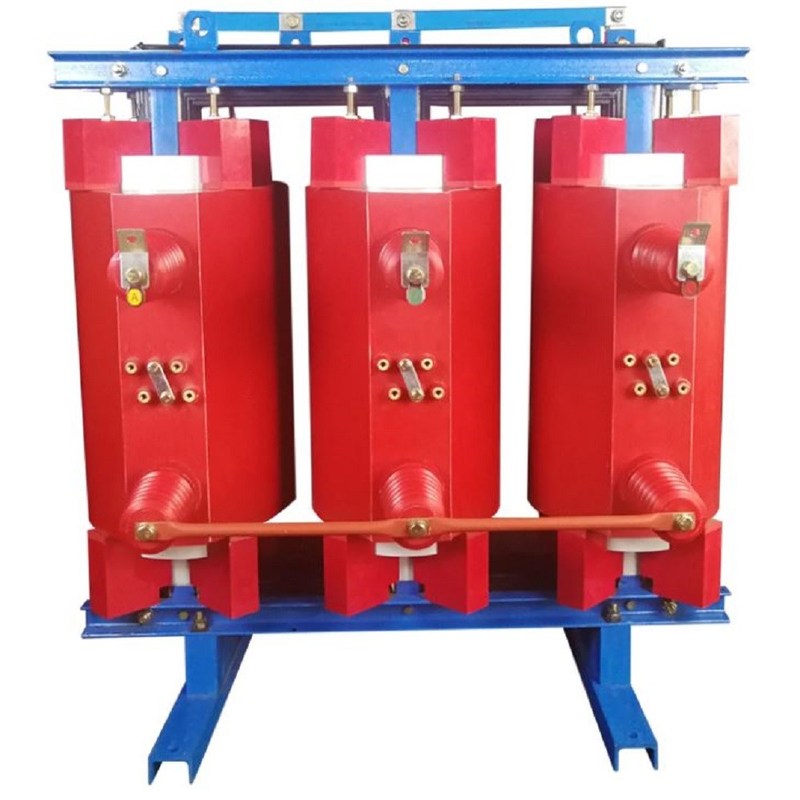

11kv 1250kVA Epoxy Resin Cast Dry-Type Transformer/Distribution Transformer
10KV 10~2500KVA Cast resin Dry Type distribution transformer
S11-M series hermetically sealed oil immersed power transformer has the advantage of low loss, low noise and high efficiency, which can obtain good energy saving effect and reduce pollution.Compared with ordinary oil immersed transformer, hermetically sealed transformers don 't need oil coservator, oil volume is automatically regulated and compensated by elastic corrugated sheet of corrugated tank.Transformer oil is kept out of air, which can effectively prevet deterioration and insulation aging of oil, ad enhance operation reliability.
1. Low loss, low noise, low partial discharge.
2. Strong anti-short circuit capability and high anti-lightning impact level.
3. Excellent moisture resistance for operation at 100% relative humidity.
4. Strong overload capability for long-term operation at 150% loading.
Transformer normal service conditions
The height above the sea level is below 1000m;
Highest air temperature +40ºC;
Highest daily average air temperature+30ºC;
Highest annual average air temperature +20ºC;
Lowest outdoor air temperature -25ºC.
1. Thin resin structure that never cracks
2. Epoxy resin vacuum pressure casting process
3. Iron core model simulation analysis
